INSTALLATION
Check the appliance is electrically safe when you have nished.
31
Final Fitting
Fitting the Handles and Handrail (depending on
model)

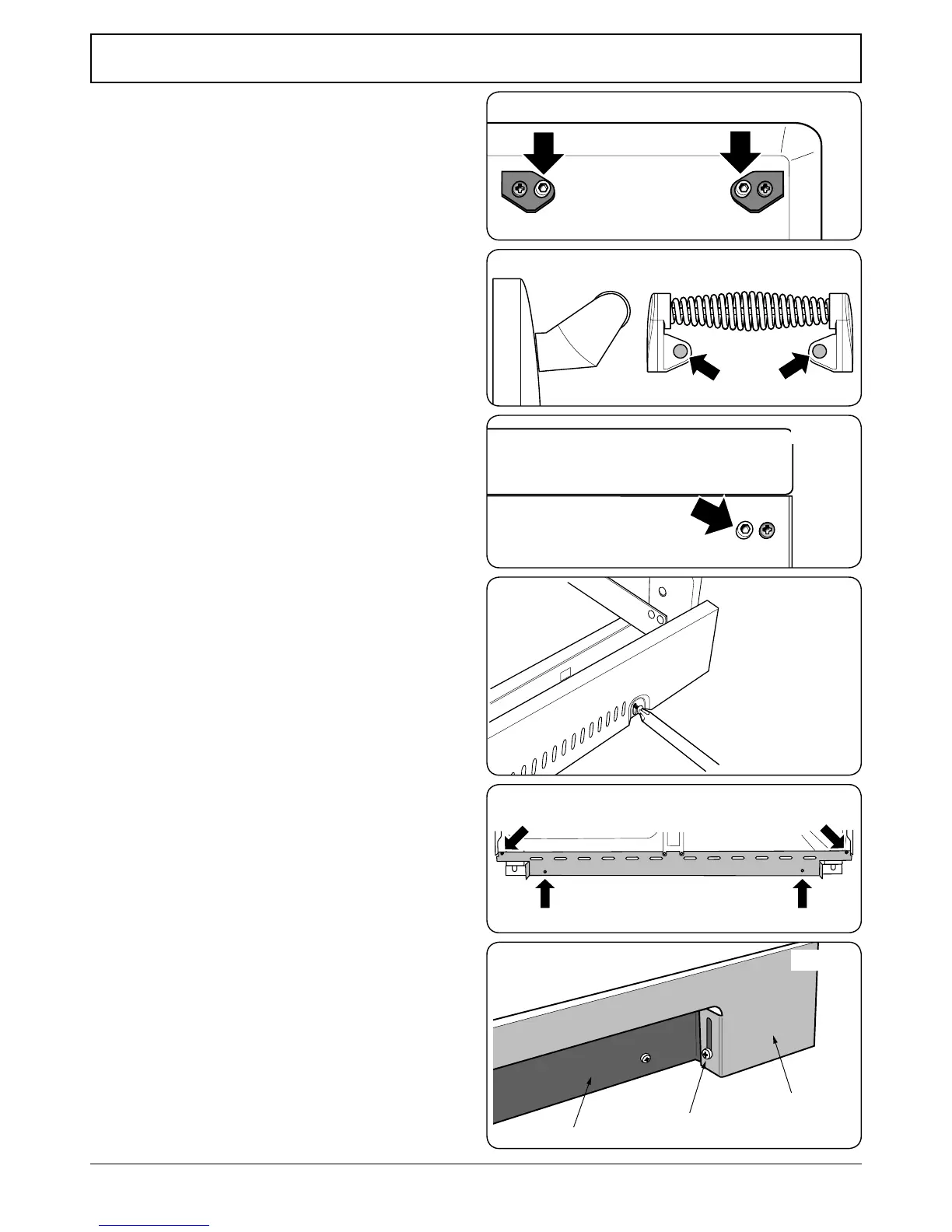

Remove the 4 mm Allen screws from the doors (Fig.7-10). Fit
the door handles and secure using the 4 mm screws.
The handles should be above the xings.
Elan, Classic and Classic Deluxe only: Fit the plastic
blanking plugs to the xing holes (Fig.7-11).
Remove the 4 mm Allen screws from the top corners of the
fascia (Fig.7-12). Fit the front handrail in position and secure
using the 4 mm screws.
Fitting the 1-piece Plinth
Loosen the three screws along the front bottom edge of the
cooker. Hook the central keyhole over the central screw. Twist
and t each end keyhole over their respective screws. Tighten
the xing screws (Fig.7-13).
Fitting the 2-piece Plinth (Classic Deluxe and
Professional Deluxe)
Fit the inner plinth to the bottom front of the cooker using
the 4 screws provided (Fig.7-14).
Fit the outer plinth (2 screws, 1 each end) to the inner plinth.
The height of the outer plinth can be adjusted by sliding it up
or down via the slotted hole (Fig.7-15).
Fitting the Splashback (Classic, Classic Deluxe & Elan)
Position the splashback on the rear of the hotplate and secure
with the screws supplied.
Customer Care
Installer: Please complete your details in this guide, inform
the user how to operate the cooker and hand over the
instructions.
Thank you.
