Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
ArtNo.080-0049 110 Elan induction (oven) circuit diagram
P095199
1
2
P2
P1
P028728
6
P6
5 P5
4
P4
7 P7
8 P8
2
P2
1 P1
3 P3
2
4 5
v
2
3
4
1
P3
P2
P1
P4
P033458
2
3
4
1
P3
P2
P1
P4
P033458
g/y
y
r
b
br
bk
v
r
bk
b
b
r
or
y
v
w
b
g/y
bk
br
gr
br
or
br
y
w
b
w
y
br
br b
bk
v gr
y
gr
v
v
r
bk
b
v
v
br
br
bk
br
r
r
r
bk
b
bk
b
b
b
b
b
b
b
b
b
b
b
b
b
w
gr
y
r
or
b
v
w
b b b b
b
w
b b
or
bk
bk
br
b
b
br
b
b
b
b
br
v
y
v
br
v
r
y
y
y
r
r
b
b
v
v
E
A2
C
A1
B1
A3
B3
B4
B2
B5
B6
B7
D2
I
D1
G
D3
B8
D4
F1
F2
I
H
I
H
G
I
H
Code Description
A1 Grill front switch
A2 Grill energy regulator
A3 Grill elements
B1 Multi-function oven thermostat front switch
B2 Multi-function oven thermostat
B3 Multi-function oven top element (outer pr.)
B4 Multi-function oven top element (inner pr.)
B5 Multi-function fan element
B6 Multi-function oven fan
B7 Multi-function base element
B8 Multi-function oven function select switch
Code Description
C Clock
D1 Right-hand oven front switch
D2 Right-hand oven thermostat
D3 Right-hand fan oven element
D4 Right-hand oven fan
F1 Cooling fan
F2 Oven light switch
G Oven light(s)
H Thermal cut-out
I Neon

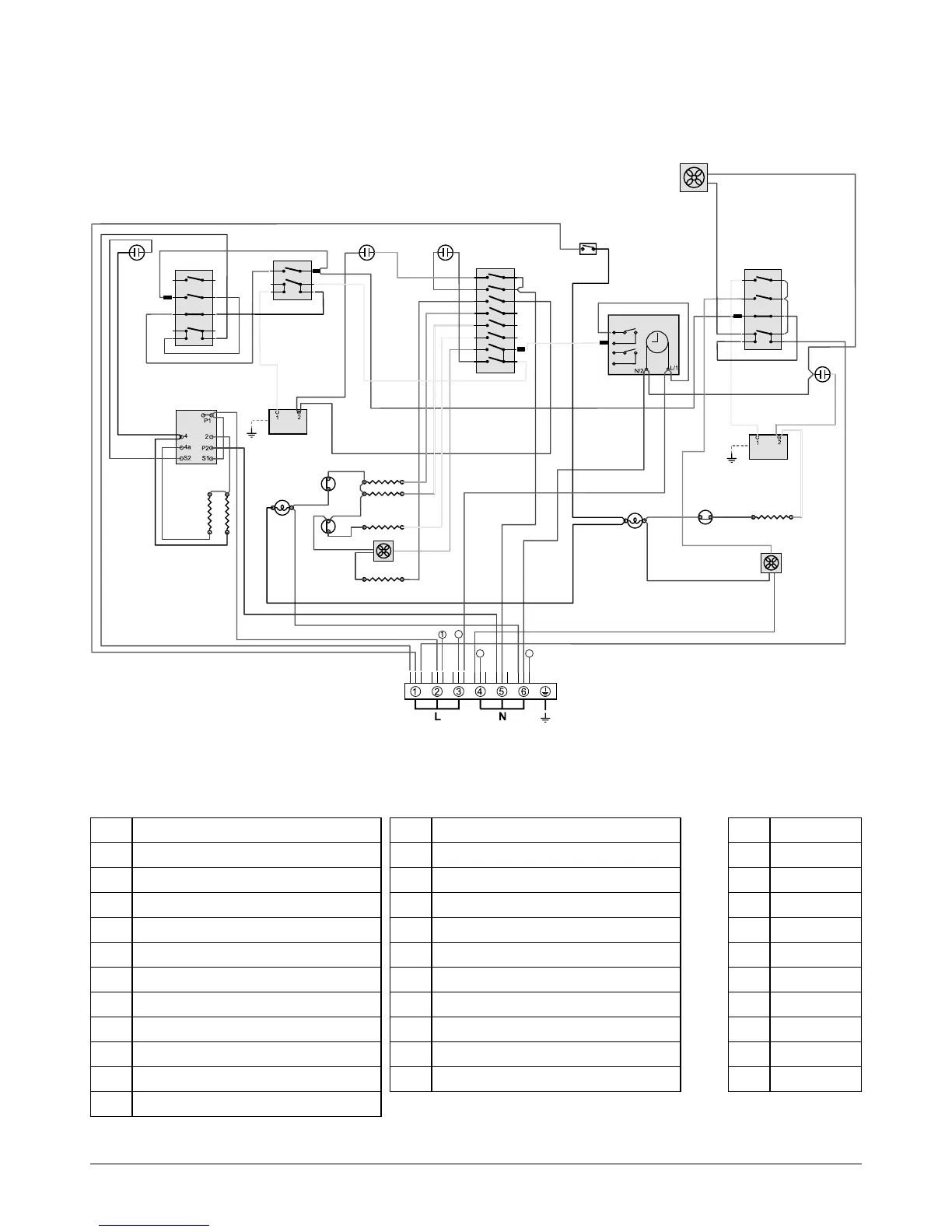

Circuit Diagram: Multi-function Oven (Elan)
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gr Grey
To Next Page
