SPECIFICATIONS
ENGINE SPECIFICATION
TYPE: Kubota 38KW (51HP) , 4 cylinder
(in line) vertical Diesel engine, 4
stroke, water cooled, 2197cc
(134.06 cu.in) with 12V electric
start.
Model: V2203 - B
Maximum Speed: 2800 +50, - 0 RPM (No load)
Idle Speed: 1400 ± 50 RPM
Oil Sump Capacity:9.5 litres (16.72 Imp.pints)
(20.08 US pints)
Firing Order: 1, 3, 4, 2.
Fuel: No. 2-D Diesel fuel (ASTM D975)
MACHINE SPECIFICATION
Frame Construction:Main chassis of welded heavy-
duty hollow section steel. Front
and rear axle assembly and
mounting points for cutting unit
sub frames bolted to main
chassis
Transmission: Hydrostatic transmissin with
heavy-duty variable displacement,
reversible piston pump with servo
control and heavy-duty low speed,
high torque wheel motors on all
four wheels. On demand 2 or 4
wheel drive is controlled by a
solenoid/pilot operated flow
divider. Differential lock is fitted on
front axle.
Speeds:
Cutting: 0 - 12.5km/h (0 - 7.5 mph) 4
WHEEL DRIVE FORWARD
0 - 10.0km/h (0 - 6.2 mph) 4
WHEEL DRIVE REVERSE
Transport: 0 - 25km/h (0 - 15mph) 2
WHEEL DRIVE FORWARD
Steering: Hydrostatic power steering
on rear wheels.
Tyres: Front - 26 x 12.00 - 12 4 ply
rating Turf tread
Rear -23 x 10.50 - 12 4 ply
rating Turft tread
Pressures: All tyres 1.0 kg/cm
2
(14p.s.i.)
Ground Pressure: 0.8 kg/cm
2
(11 p.s.i.)
Brakes: Hydrostatic braking with
internal disc type brakes in
front wheel motors for
parking.

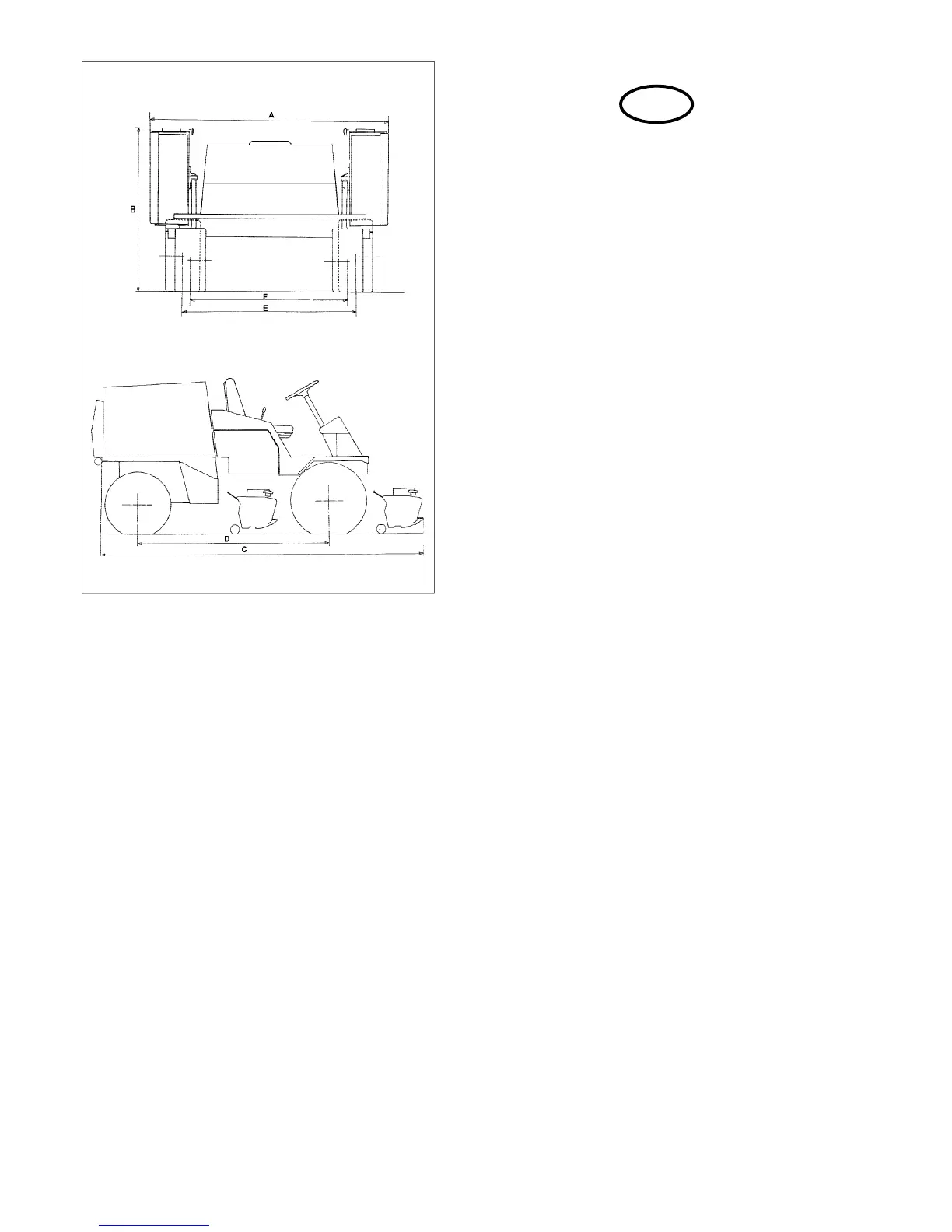

Fig.2
