RANSOMES T-PLEX 180
OPERATORS MANUAL

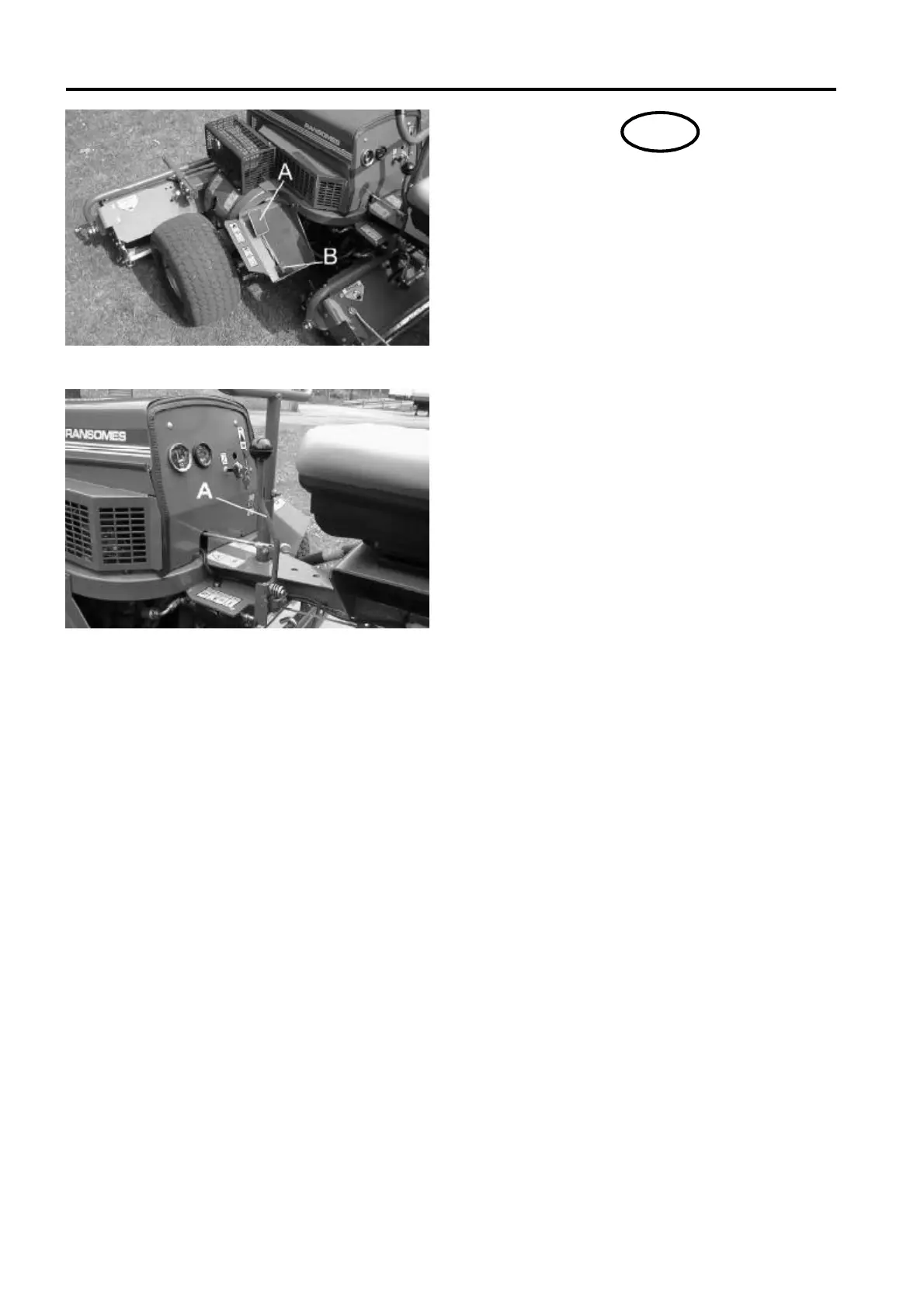

Fig.6
PARKING BRAKE (B Fig.5)
To apply the parking brakes depress the foot pedal
(A) until it locks in the down position. To disengage
the parking brakes depress the foot pedal, and apply
pressure to pedal (B) with heel.
LIFT, LOWER AND CYLINDER DRIVE LEVER
(A Fig.6)
To lower the cutting units push lever (A) gently
forward till first stop point is reached and allow cutting
units to lower. To engage the cutting unit drive push
forward lever (A) till second stop point is reached. To
disengage the unit drive sharply pull once, the lever,
in a rearwards direction, and to raise cutting units pull
the lever backwards.
IMPORTANT: All unit must be lowered when cutting.
Fig.5
