RANSOMES T-PLEX 180
OPERATORS MANUAL
2. Lubricate the following points with Shell
Retinax "A" grease:
(a) Front and rear lift arm pivots (A Fig.12).
(b) Jackshaft (B Fig.12).
(c) Rear Wheel and Rear Wheel Pivot (A & B
Fig.13). (Rear Wheel pivot only, on 3 wheel
drive machines.)
(d) Unit pivot bracket, front (A Fig.14).
(e) Steering shaft (A) and unit pivot bracket.
(f) Cutting Cylinder bearing housings. (A Fig. 15)
(h) Front and rear rolls.

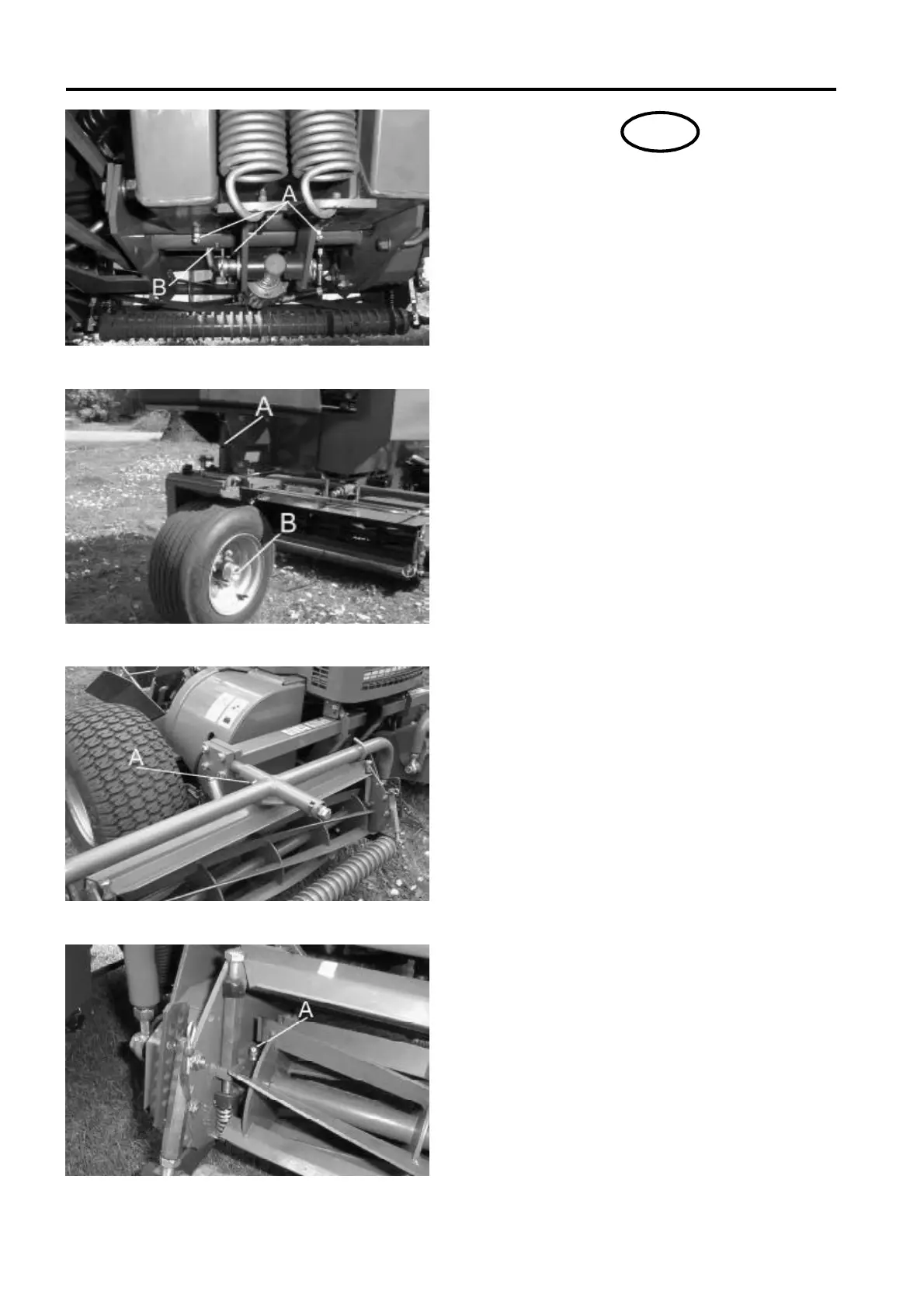

Fig.12
Fig.13
Fig.14
Fig.15
