Rapid Engineering BH-40 - Figure 16: Linear Heater Layout Overview

SECTION 6: HEATER INSTALLATION
17 of 59

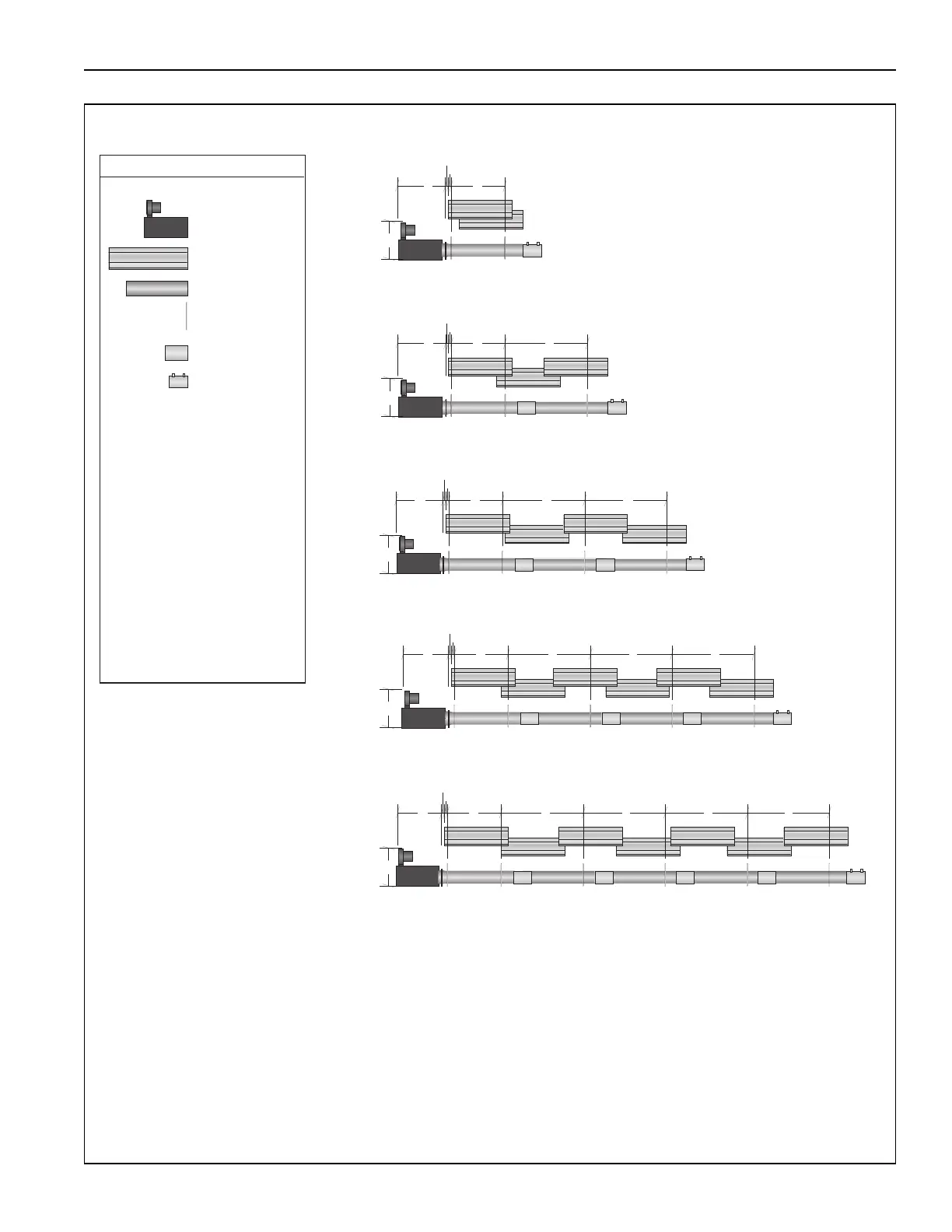

FIGURE 16: Linear Heater Layout Overview
a = 14" (36 cm)
reflector width (not shown)
b = 2" (5 cm)
end cap to burner
c = 2" (5 cm)
end cap to hanger
d= 7
' 6" (2.3 m)
distance first hanger
e= 10
' (3 m)
distance between hangers
f = 12.5" (32 cm)
burner height
g = 11" (28 cm)
burner length
Vent Adapter
Burner
Reflector
Tube
Tube/Reflector
Hanger
Coupling Assembly
LEGEND
g
c
b
d
f
g
c
b
de
f
g
c
b
de
f
e
g
c
b
de
f
e e
g
c
b
de
f
e e e
10' (3 m) Tube Length
20
' (6.1 m) Tube Length
30
' (9.1 m) Tube Length
40
' (12.2 m) Tube Length
50
' (15.2 m) Tube Length
