Rapid Engineering BH-40 - Protective Grille Installation

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
34 of 59

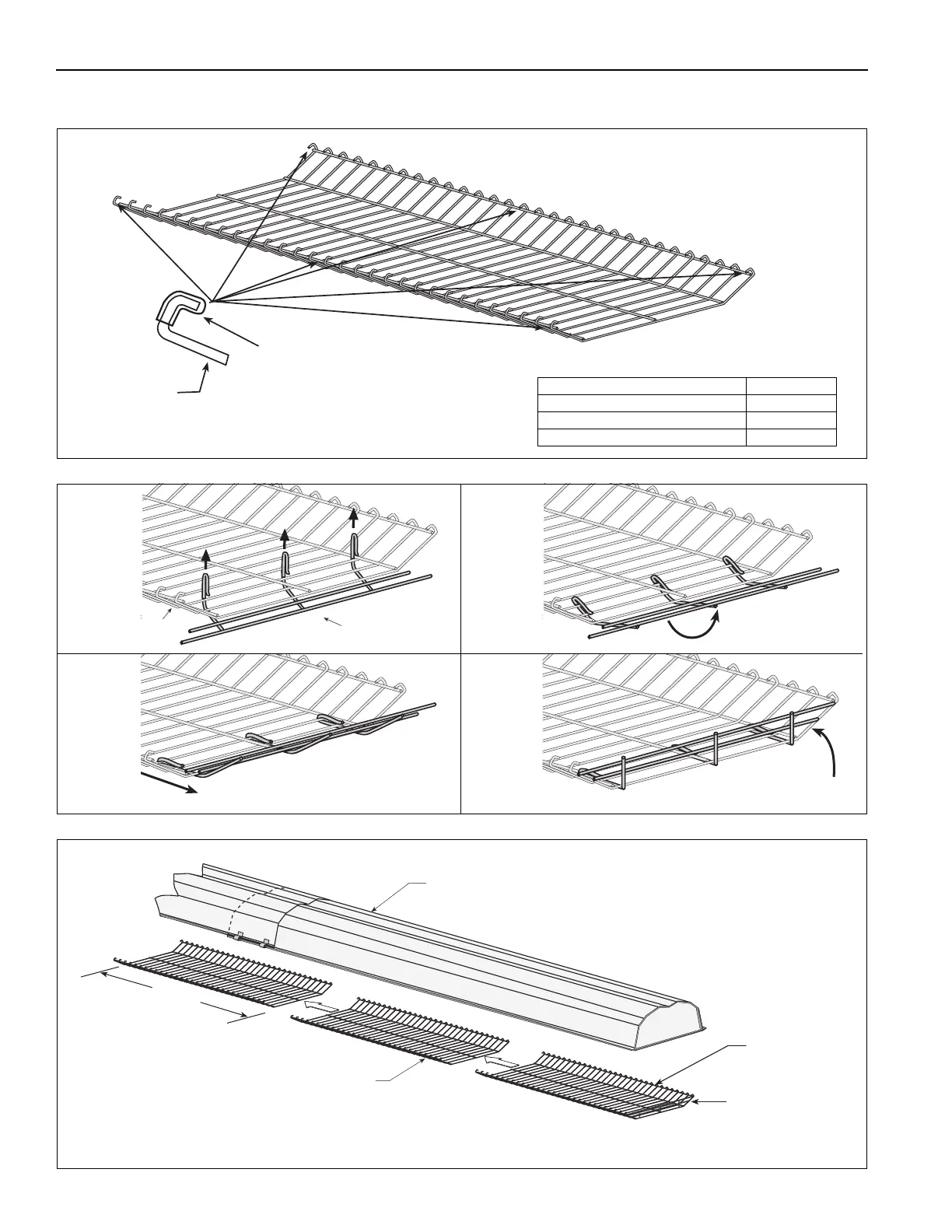

7.6 Protective Grille Installation
Step 7.6.1 Silicone Cap Installation
Step 7.6.2 Grille End Cap Installation
Step 7.6.3 Grille Installation
Silicone Cap
Grille
Finger
Description Part Number
Grille Section 08050001
Grille End Cap 08050002
Silicone Cap 91915951-6P
Bend up 90°.
Pull outward.
Grille
Grille End Cap
A
B
C
D
Grille
Grille
End Cap
Reflector
Final Grille
Section
40"
(101 cm)
