Rapid Engineering BH-40 - Turbulator Installation

SECTION 6: HEATER INSTALLATION
21 of 59

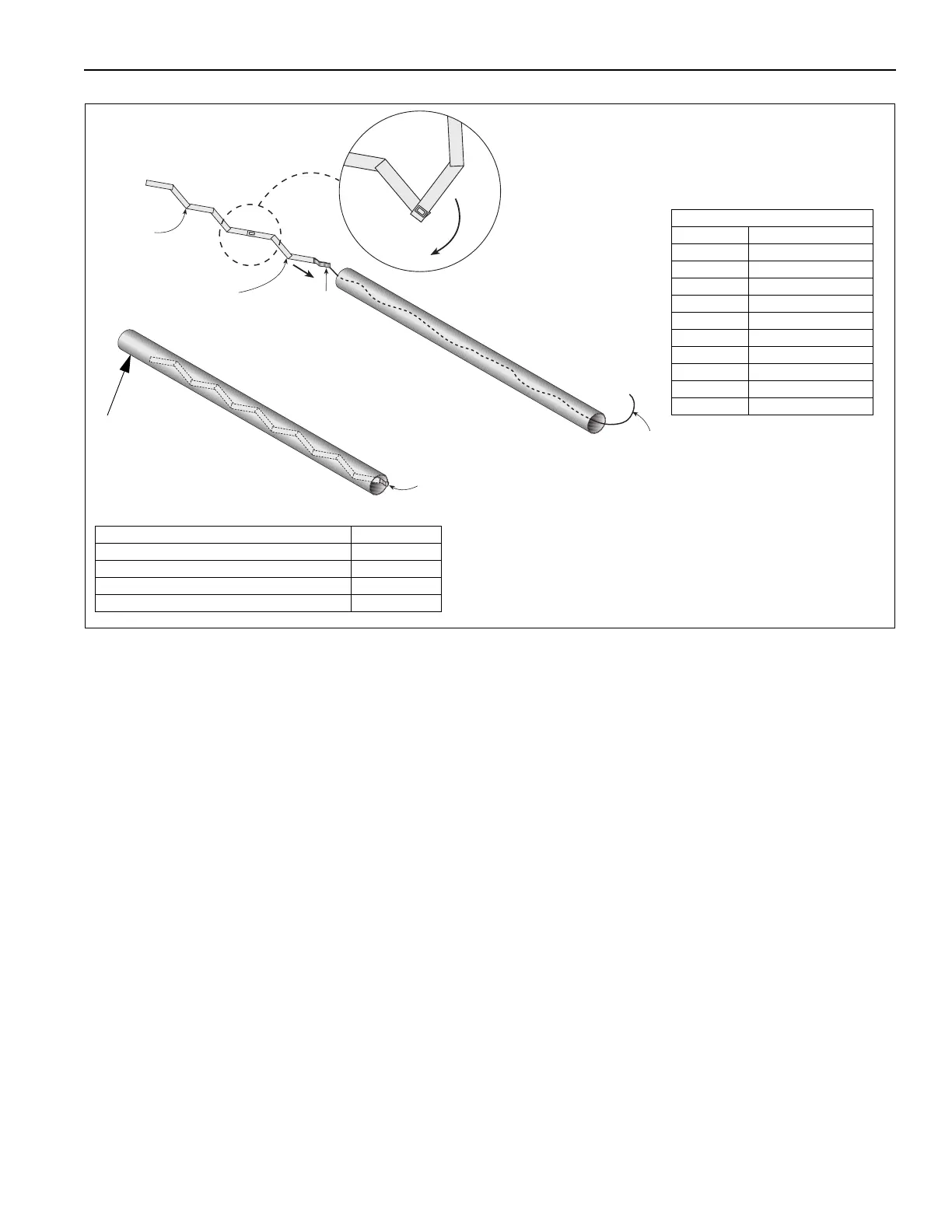

Step 6.4 Turbulator Installation
T
w
i
s
t
Pull String
Tab
Fold tab around outside
of tube nearest to the vent to
hold turbulator in place.
Turbulator
Section
Turbulator
Adapter
Description Part Number
Turbulator Adapter 2.5' (76.2 cm) 03051503
Turbulator Section 2' (61 cm) 03051504
Turbulator Section 2.5' (76.2 cm)(Stainless) 03051505
Tube 91409XXX
Turbulator must be installed in the last
standard section of tube. Turbulator is
not required on the BH-125/150/175/200.
Turbulator Installation
Model Tube Section
BH-40 1st 10' (3 m) Section
BH-60 2nd 10' (3 m) Section
BH-80 2nd 10' (3 m) Section
BH-100 3rd 10' (3 m) Section
BH-115 3rd 10' (3 m) Section
BH-125 N/A
BH-140 4th 10' (3 m) Section
BH-150 N/A
BH-175 N/A
BH-200 N/A
Turbulator section 2.5'
(76.2 cm) (stainless) used in
BH-40 heaters must be in the
section of turbulator nearest
to the burner.
