Rapid Engineering BH-40 - Lower Clearance Shield Installation; Two-Foot Decorative Grille Installation

BH-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
32 of 59

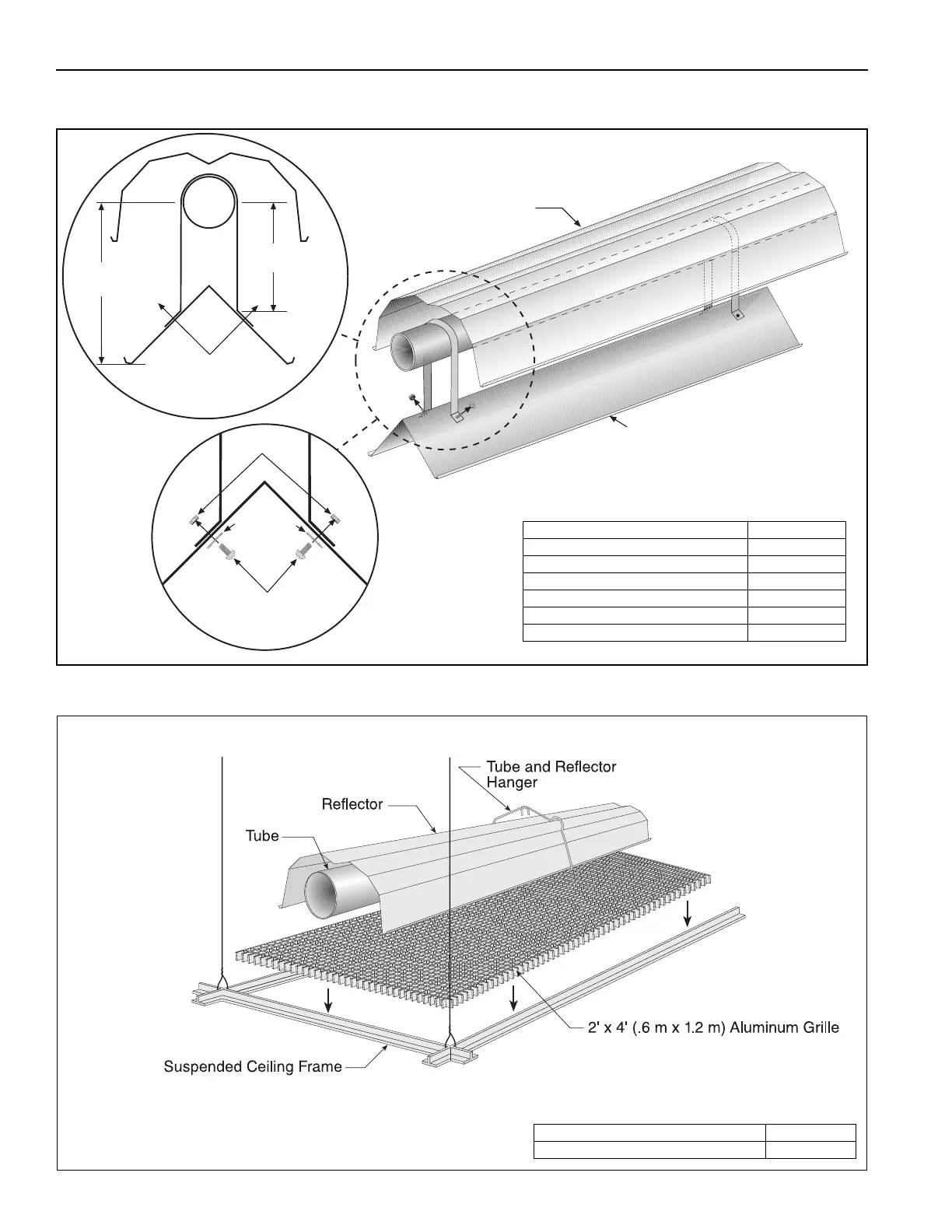

7.4 Lower Clearance Shield Installation
Step 7.4.1 Shield Support Strap Assembly
7.5 Two-Foot Decorative Grille Installation
Step 7.5.1 Grille Installation
12"
(30 cm)
Reflector
Lower Clearance Shield
17"
(43 cm)
Washers
Screws
Locknuts
Align Pilot Holes
Description Part Number
Lower Clearance Shield Package 01397501
Shield Support Strap 01397500
Lower Clearance Shield 8' (2.4 m) 02793000
Locknut #8 92311400
Flat Washer #8 95310800
Screw #8 x 3/8'' 93511406
Description Part Number
Aluminum Grille 2' x 4' (61 x 122 cm) 91407000
