Rapid Engineering BH-40 - Coupling and Tube Assembly; Tube Clamp Package Installation

SECTION 6: HEATER INSTALLATION
19 of 59

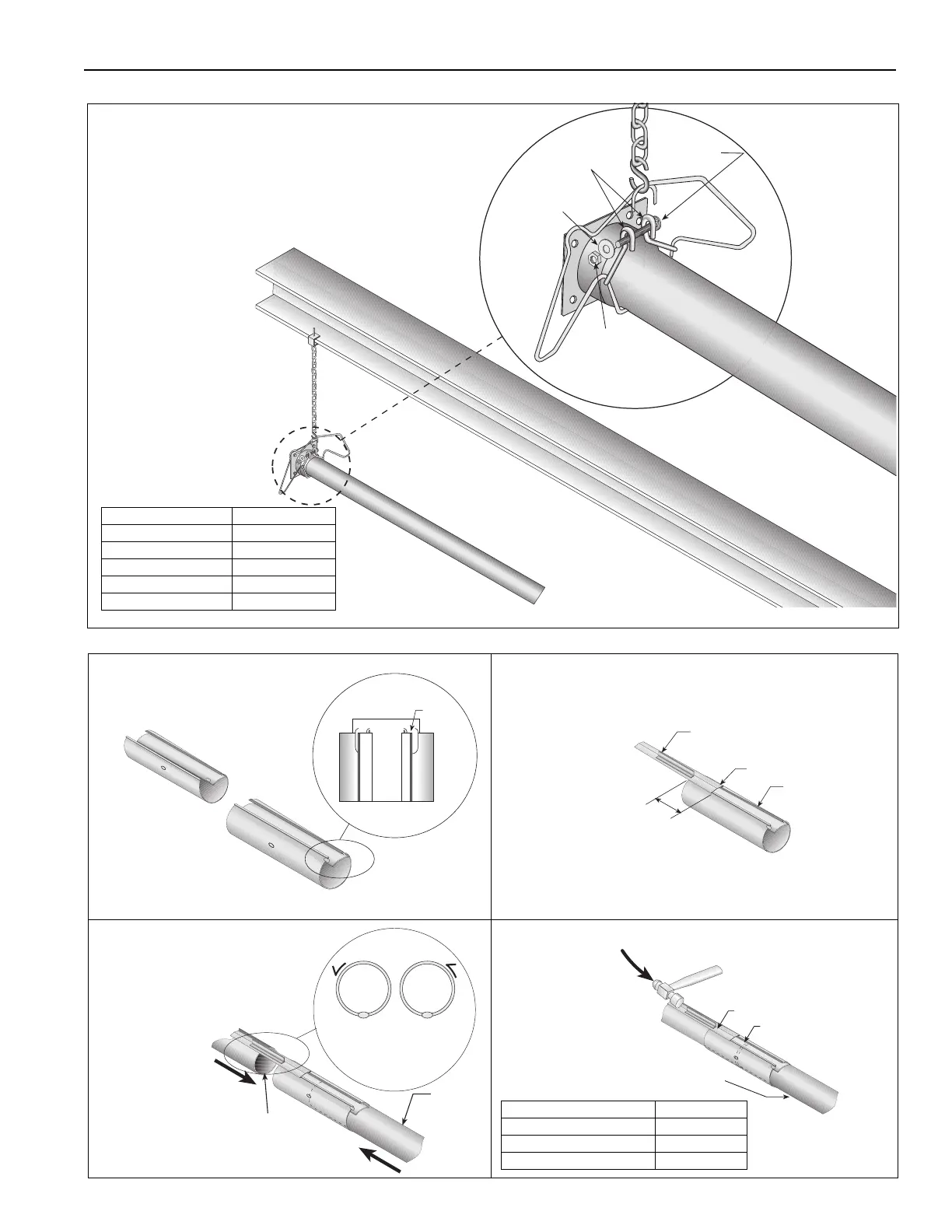

Step 6.2 Tube Clamp Package Installation
Step 6.3 Coupling and Tube Assembly
Bolt
Tube Clamp
Flat
Washer
Nut
(Torque 120 in/lb
13.56 Nm)
Description Part Number
Tube Clamp Package01318901
Tube Clamp 01396801
Bolt 97113940
Flat Washer 95211600
Nut 92113900
Tube
Tube
Orient coupling so that
the impact block is in the
2:00 or 10:00 oclock
positions.
Closed
Open
Tab
3" (8 cm) to
4" (10 cm)
Slide Bar/Coupling Lock
Coupling
Wide End
Coupling
Tube
Slide Bar/Coupling Lock
A
Close coupling
with tab.
B
Start slide bar/coupling lock
onto coupling.
C
Insert tubes into coupling.
D
Tighten coupling to join tubes.
Description Part Number
Coupling 01329600
Slide Bar/Coupling Lock 01329700
Tube91409XXX
