8
Electric connection

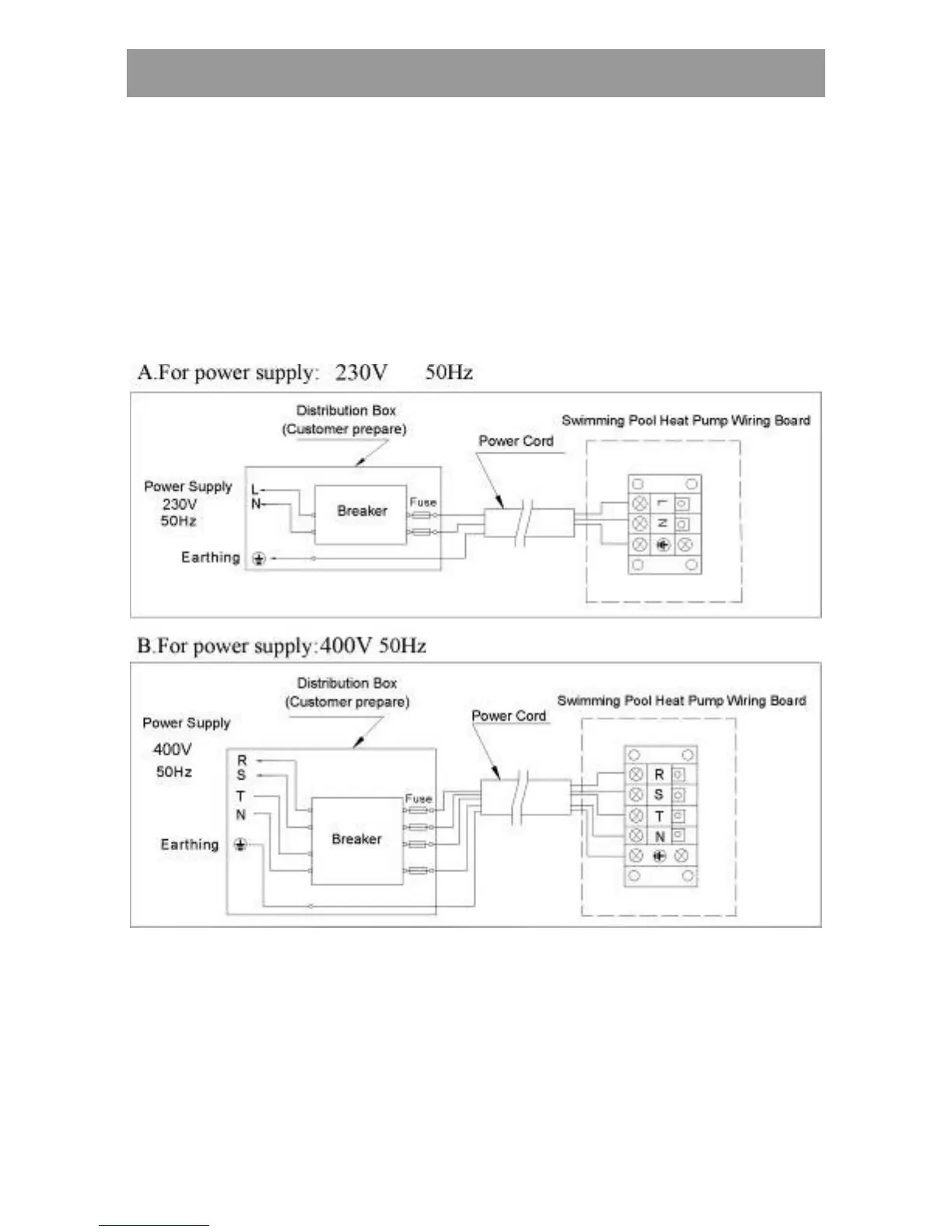

- Wiring must be handled by a professional technician according to the circuit diagram as
following.
- Connect the heat pump to appropriate power supply and the voltage should comply with
the rated voltage of each model stated on the specification.
- Make sure the machine is ground well.
- Always put leakage protector according to the local code for wiring (leakage operating
current ≤ 30mA).
- Protect the circuit with a suitable circuit breaker or fuse (as it is shown in table on page 9)
