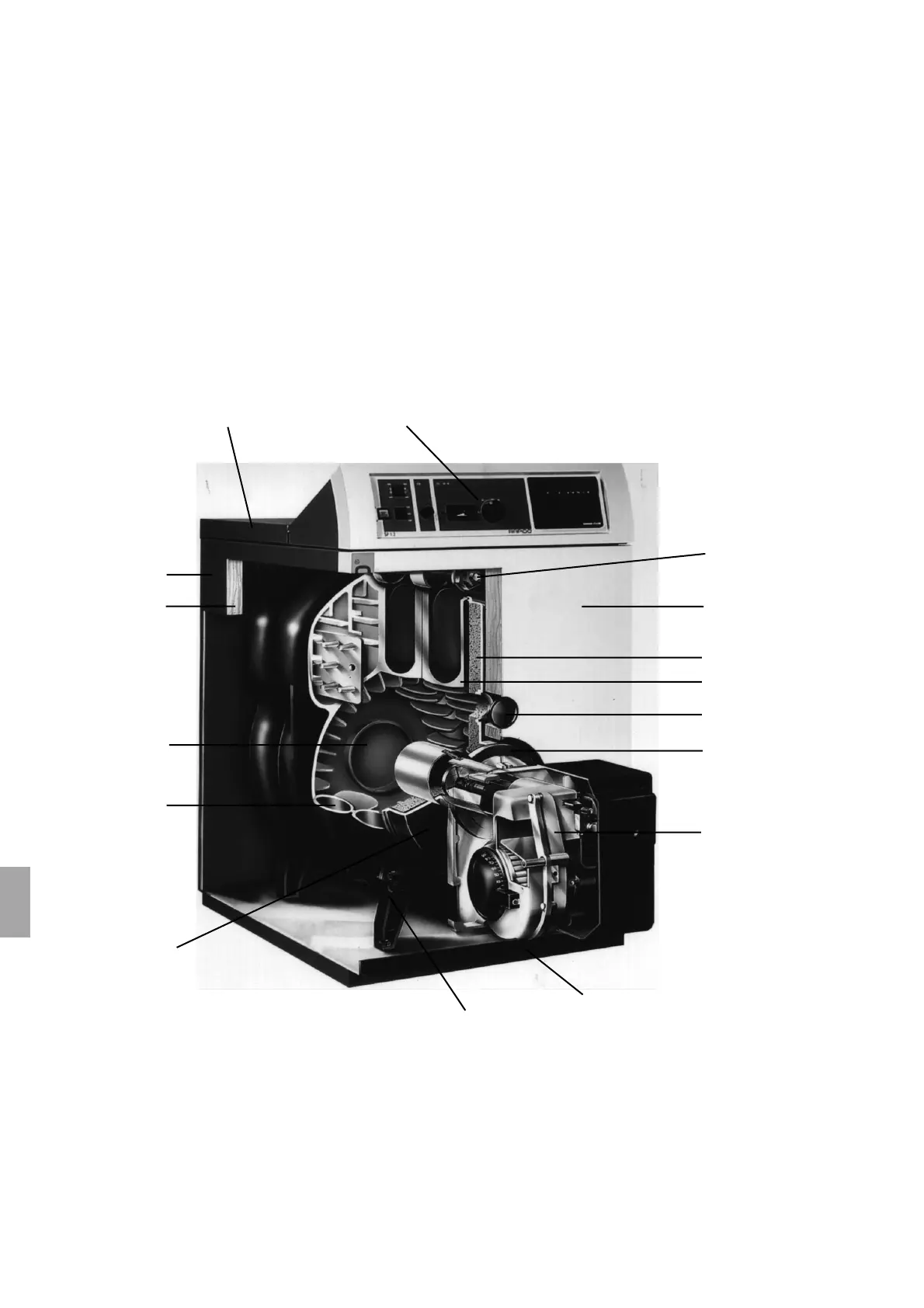

5. Overview
1 SP 1.2 with rapidomatic heating circuit control
(accessory)
2 Upper rear cover panel
3 sleeve (1/2 ”)
4 front insulation panel
5 burner door
6 inspection hole
7 burner door sealing flange
8 door brick
Fig. 2
9 door fixing
10 base plate (for F 110/3 – 4.1 NT)
angled plate (for F 110/5 – 6.1 NT)
11 front section
12 side insulation
13 middle section
14 end section
15 heat insulation mat
16 BF 100 oil-jet burner (accessory)
