Rapido ga110 e - Technical Dimensions

20
5 Dimensions
B2
B4
B5
B
6
B3
C2
C1
A1
B
A
C
B1
C3
1
2
3
4
56
A2

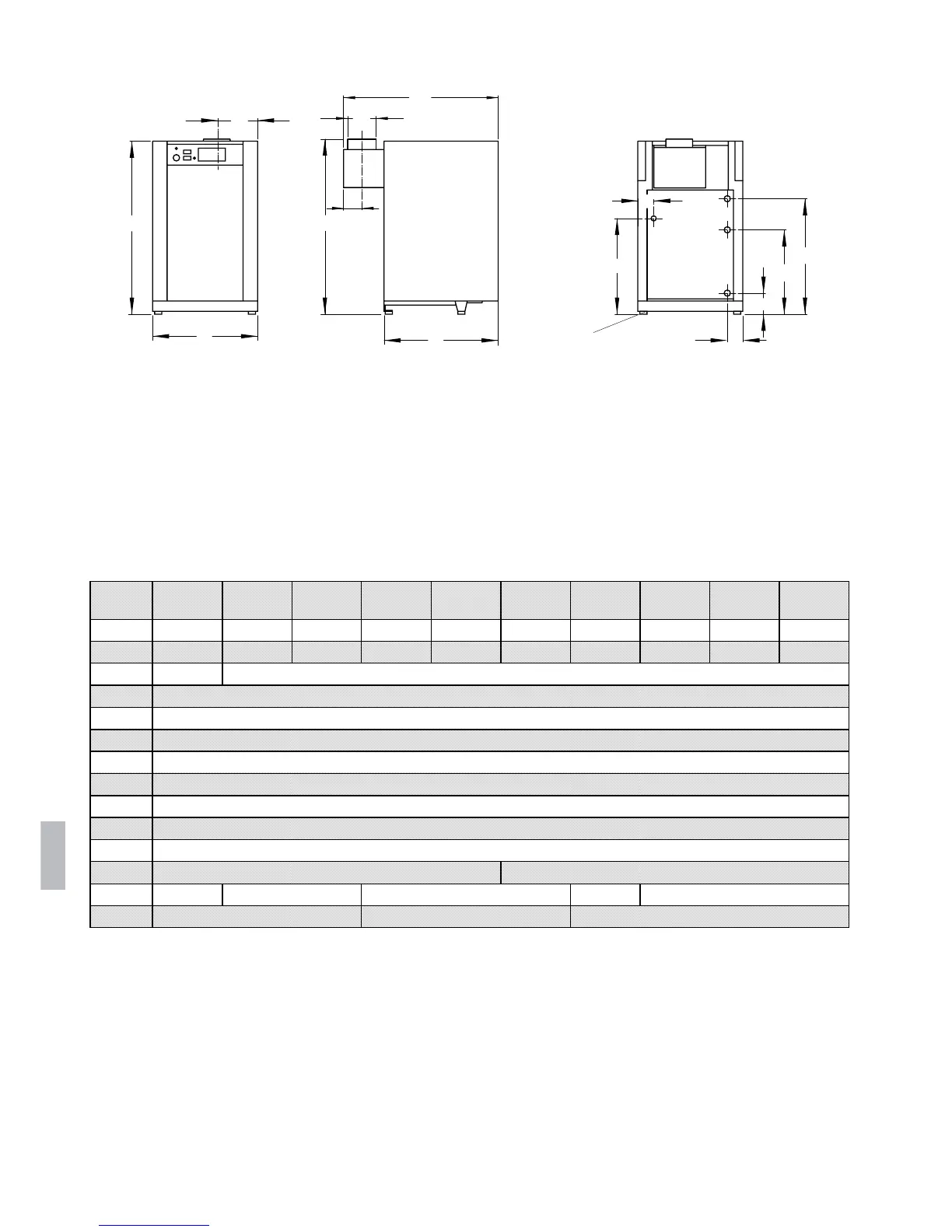

side view
rear viewfront view
1 Water flow
2 Water return
3 Water return / (GA 110 EU)
4 Gas connection
5 Sensor plugs
6 230 V plugs
C 3 72 82 91
C 2 Ø 90 110 130 150 180
C 1 720 730
C 545
B 6 543
B 5 398
B 4 110
B 3 80
B 2 450
B 1 810
B 805
A 2 135 80
A 1 173,5 202 230,5 259 287,5 316 344,5 373 401,5 430
A 445 445 502 559 616 673 730 787 844 901
Dimensions GA 110 GA 110 GA 110 GA 110 GA 110 GA 110 GA 110 GA 110 GA 110 GA 110
in mm /9 E /15 E /19 E /23 E /27 E /31 E /35 E /41 E /46 E /51 E
adjusting screw
Fig. 1
