Battery Gauge (Fuel Gauge)
The Rascal AutoGo includes an illuminated Battery Gauge
that provides a visual indication of the electrical charge in

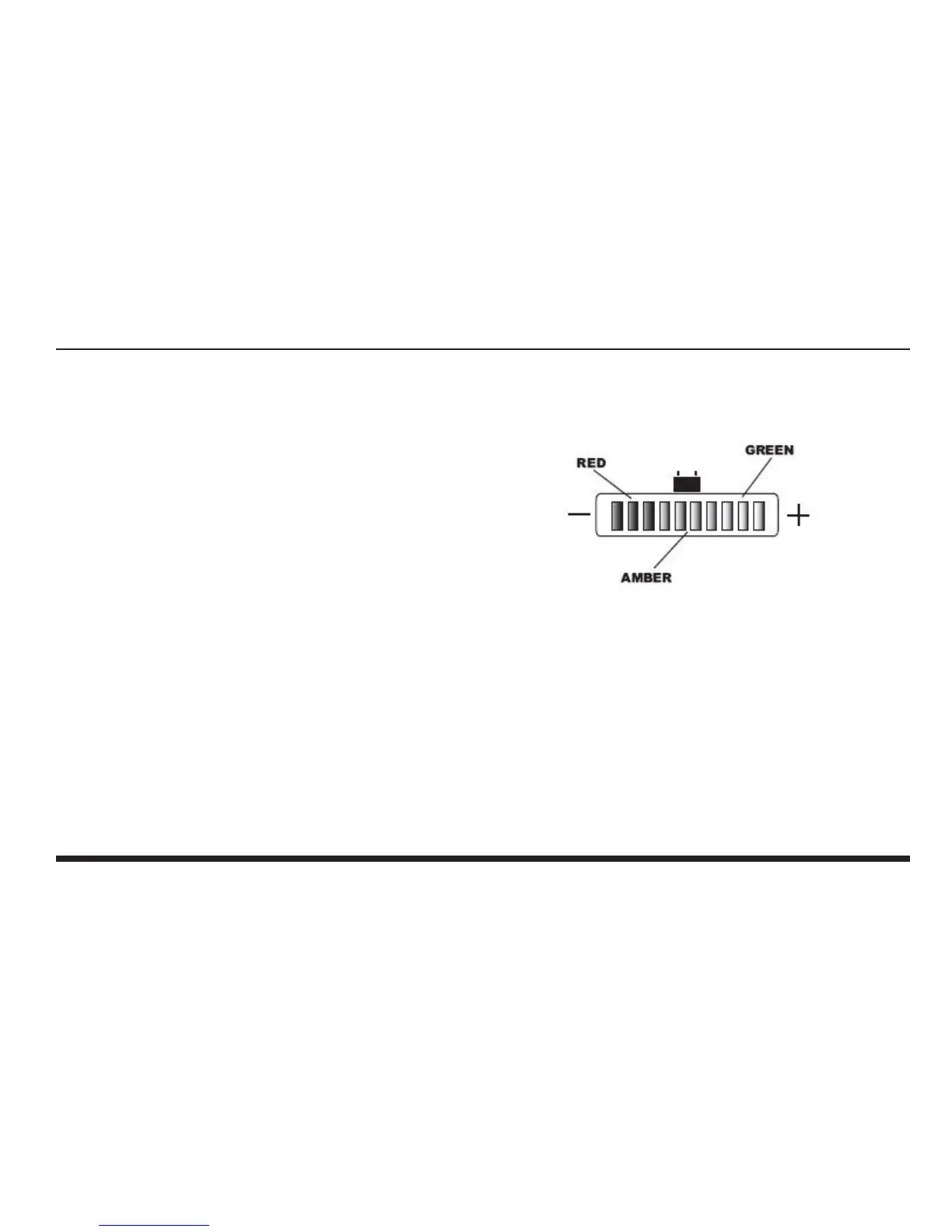

the Battery Pack. It consists of 10 different LED bars (3
red, 4 amber and 3 green), that are lit in accordance with
the state of battery charge.
• If all bars are lit — indicates Battery Pack is fully
charged
• If only red and amber bars are lit — indicates Battery
Pack charge is low
• If only red bars are lit or flashing — indicates Battery
Pack requires immediate recharging
The Battery Gauge also functions as a Status Indicator to
troubleshoot and identify problems with the Rascal AutoGo
or controller. If Battery Gauge is flashing, see “Controller
Fault Codes” on page 48.
