3. Lift Battery Pack handle up and pull forward to remove
Battery Pack from tiller.
4. Flatten seat frame as shown in Illustration 13, by:
— Rotating seat Frame Cams by pushing cam handles
down until they lock,
— Lifting the rear of seat frame up,
5. Pull Rear Frame back and lift crossover strap up until
seat frame collapses to the rear.
6. Rear cams will return to original position
7. Lift Dash Release and lower tiller onto frame.

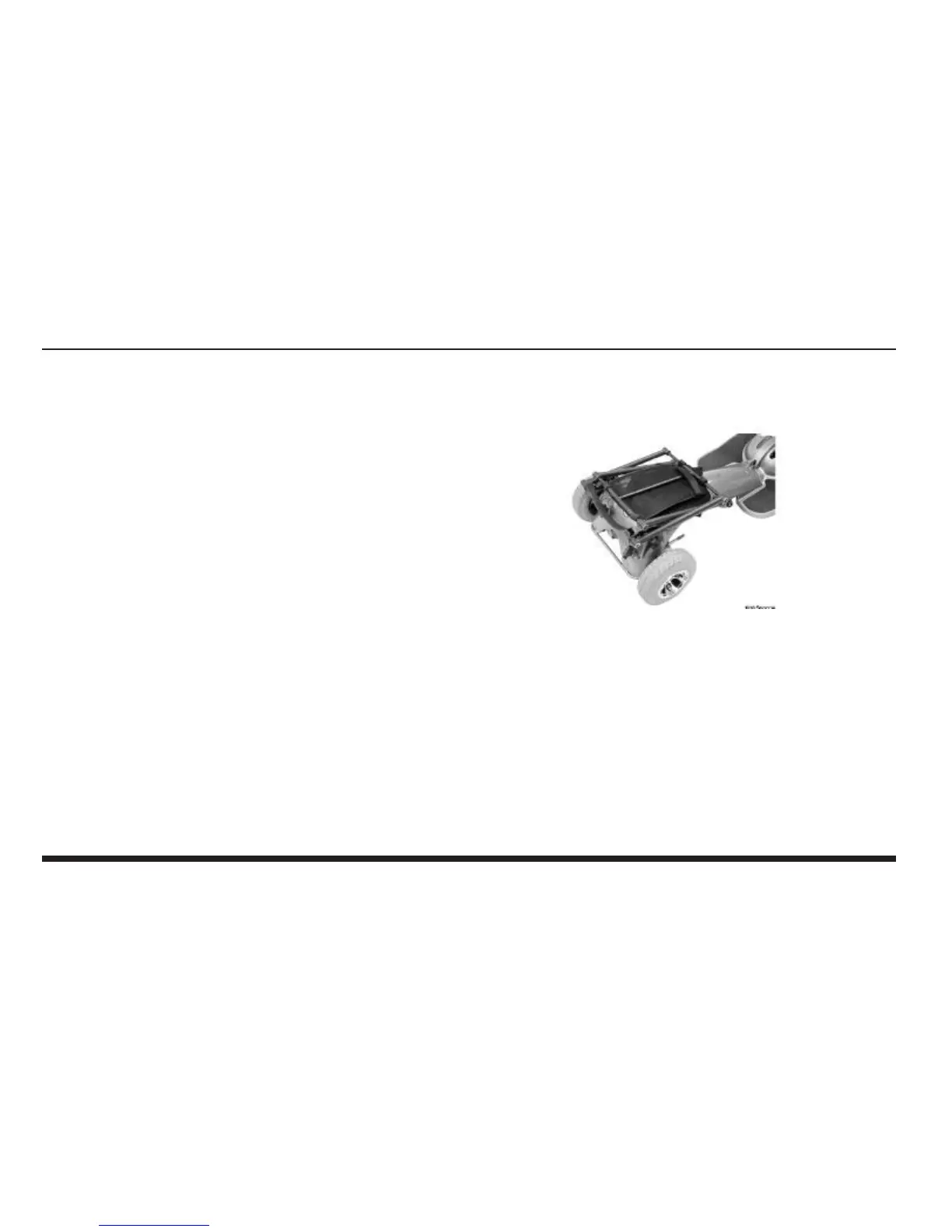

Illustration 13 - Flattening Seat
