Rath Multi-Line Command Center User Manual

Page 7
Option 3
17+ Line System:
• On top of each RJ45 interface there is a label indicating connection:
S_ is the port used for connecting elevator phones
TD(1-2)(3-4) with a dot under the D is the port used for connecting Command Center phone(s)
TD(1-2)(3-4) with a dot under the T is the port used for outside Telco lines
• Plug the supplied RJ45 pigtail cables into the RJ45 interface connections following the wiring chart and pin
out color scheme below.
• Refer to the top of the cards to see what type of RJ45 interface and number of extensions
• The same pin-out color scheme should be used for the primary card and for all additional cards. The
system uses T568-A for pin-out wiring.
• Each card installed in 17+ line system will have 6 RJ45 interface connections
• The rst card installed will always be:
• Interface 1 (S01-S04): connection for up to 4 phones
• Interface 2 (S05-S08): connection for up to 4 phones
• Interface 3 (S09-S12): connection for up to 4 phones
• Interface 4 (S13-S16): connection for up to 4 phones
• Interface 5 (D1-2): connection for up to 2 Command Center Phones
• Interface 6 (T1-2): connection for up to 2 Telco lines
• Each additional card is used for connecting phones:
• Interface 1 (S01-S04): connection for up to 4 phones
• Interface 2 (S05-S08): connection for up to 4 phones
• Interface 3 (S09-S12): connection for up to 4 phones
• Interface 4 (S13-S16): connection for up to 4 phones
• Interface 5 (S17-S18): connection for up to 2 phones
• Interface 6 (S19-S20): connection for up to 2 phones
• Or for connecting phone lines:
• Interface 1 (TD1-TD4): connection for up to 4 Telco lines
• Interface 2 (TD5-TD8): connection for up to 4 Telco lines
• Interface 3 (TD9-TD12): connection for up to 4 Telco lines
• Interface 4 (TD13-16): connection for up to 4 Telco lines
pg. 6
S01-S04
S05-S08
S09-S12
2003
2004
COMMAND CENTER 1
SECONDARY COMMAND CENTER
2001
2002
PHONE 1
PHONE 2
PHONE 3
PHONE 4
Note: Do not use
the green and
brown pairs
S13-S16
D1-2 T1-2
2007
2008
2005
2006
PHONE 5
PHONE 6
PHONE 7
PHONE 8
2011
2012
2009
2010
PHONE 9
PHONE 10
PHONE 11
PHONE 12
2015
2016
2013
2014
PHONE 13
PHONE 14
PHONE 15
PHONE 16
TELCO LINE 1
TELCO LINE 2

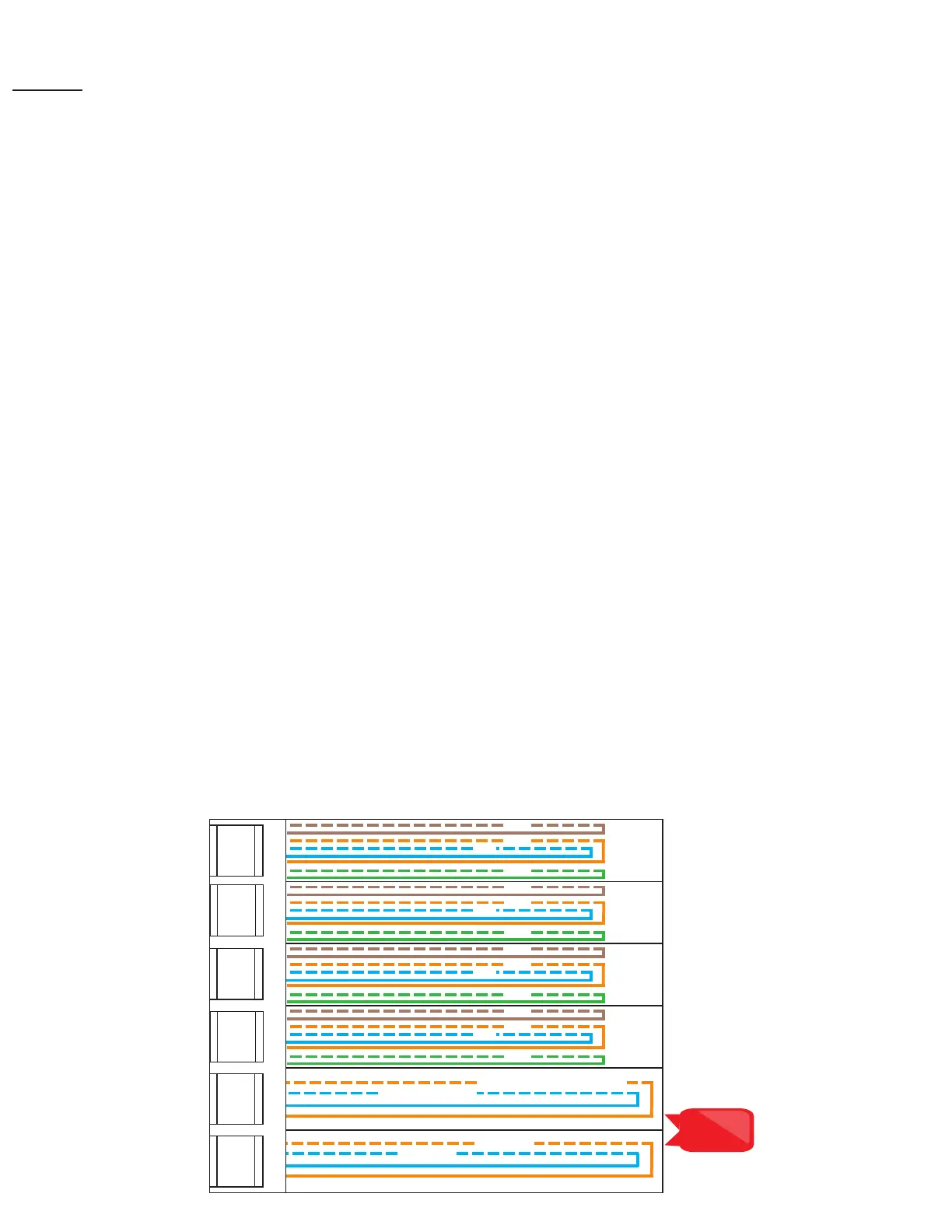

Card 1 Example
