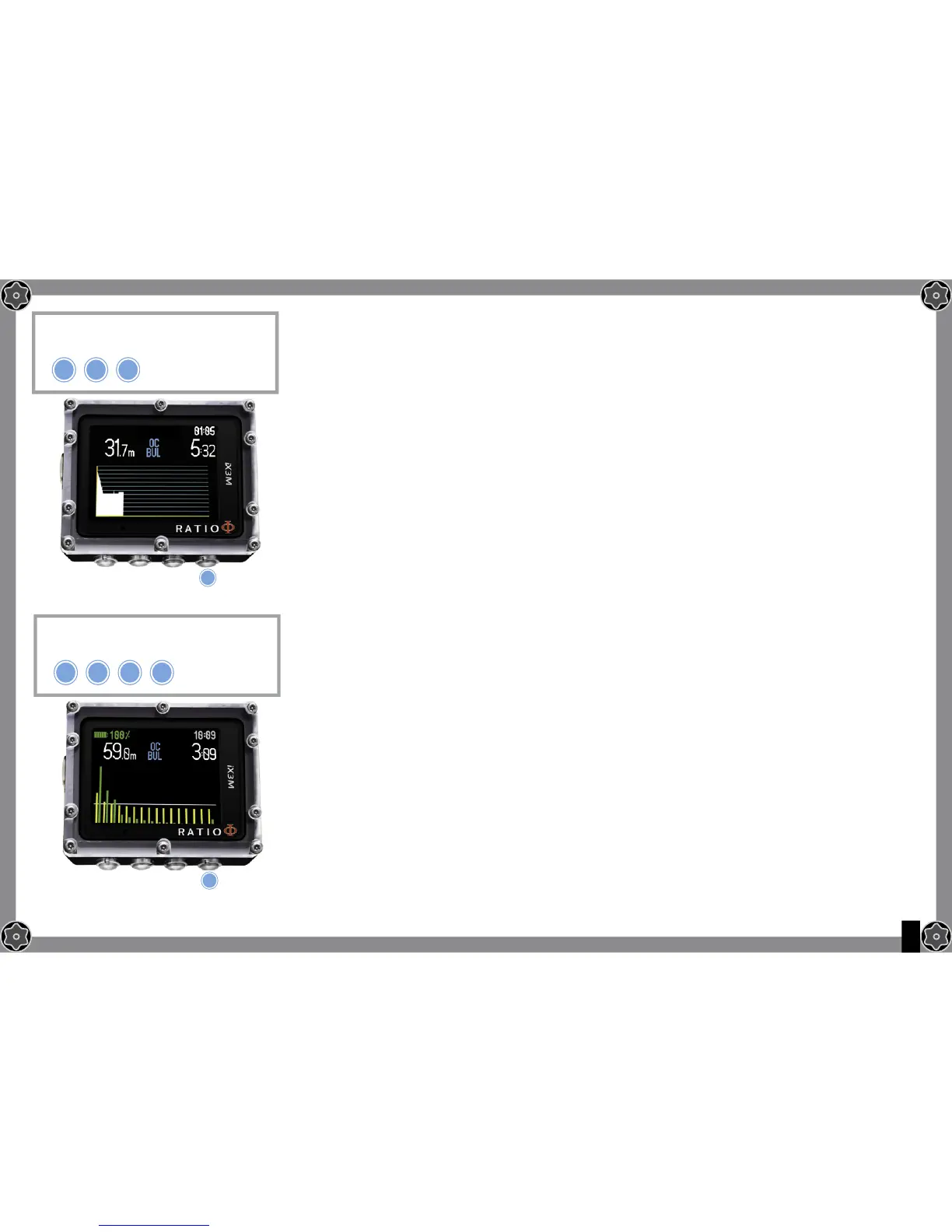

Current dive’s pro le:
Current depth: (left) with coloured alarm code when passing the gas MOD,
the mandatory stop and the depth alarm.
Dive Mode: (centre) Kind of dive and used algorithm:
OC= Open Circuit, CCR=Rebreather
BUL= Bühlmann ZHL-16 B, VPM= VPM-B
Dive Time: (right) Runtime in minutes:seconds
Diagram: Current dive profi le in HD
Tissues saturation when diving:
The diagram represents the 16 tissues which are taken into consideration by the
two decompressive algorithms (BUL or VPM).
The yellow lines represent the nitrogen levels .
The green lines represent the helium levels (if present)
The blue line represents the environment pressure in the surface at the dive’s
beginning.
The diff erent tissues’ saturation, represented by the yellow/green lines, represents
the inertial partial pressure in comparison to the environment pressure on the
surface .
In case of deco, the “pilot” tissue of that precise moment is highlighted by a red
rectangle .
