3 Product description
3.1 Unit description
Unit size 6-2/3 GN

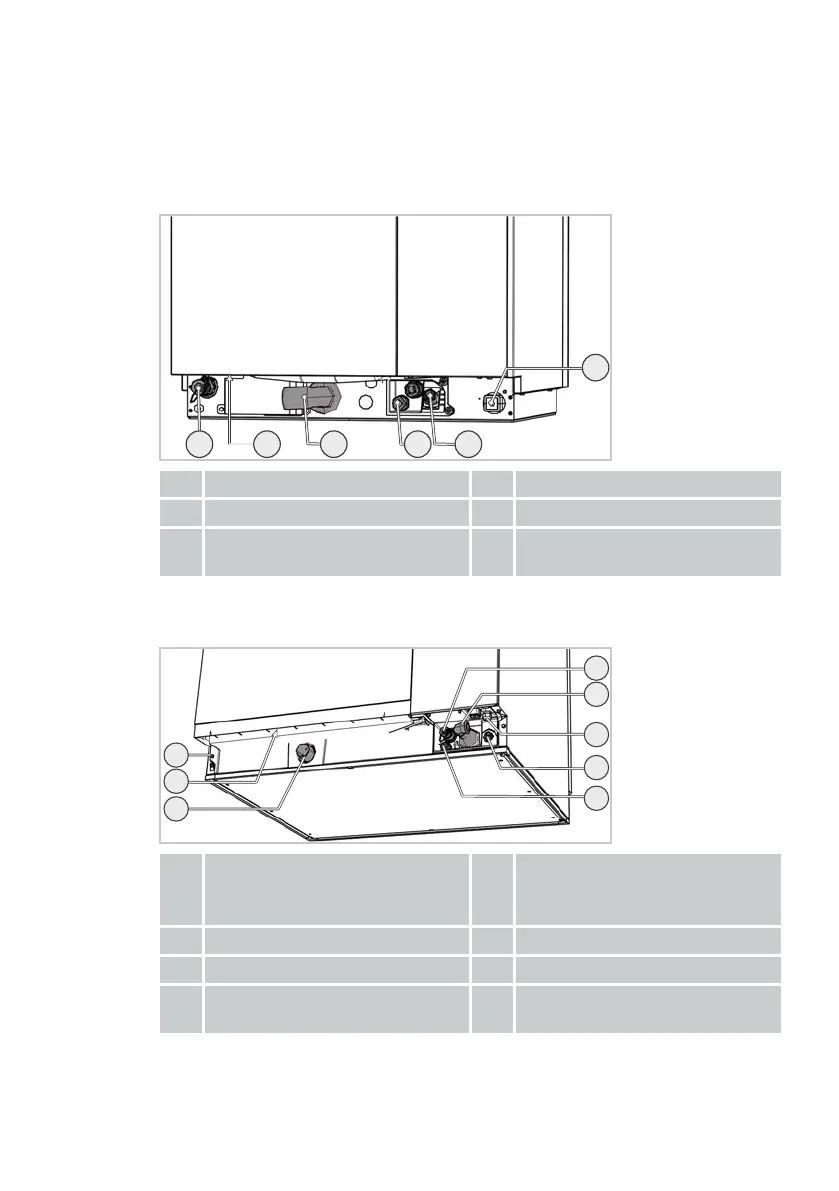

The installation connections are on the rear of the unit:
1
23456
1 Equipotential bonding 2 Water connection
3 Electrical connection 4 Drain connection
5 Safety overflow for drain connec-
tion
6 Network connection
Unit size 6-1/1 to 10-2/1 GN
The installation connections are on the rear of the unit:
1
2
4
8
6
7
3
5
1 Network connection 2 Only for gas units: gas connection
Only for electric units: electrical
connection
3 Power supply 4 Water connection
5 Optional connection 6 Drain connection
7 Safety overflow for drain connec-
tion
8 Equipotential bonding
