Rational iCombi Classic

6 | Electrical connection
80.06.070_iCombiPro-iCombiClassic_IM_en-GB 53 / 108

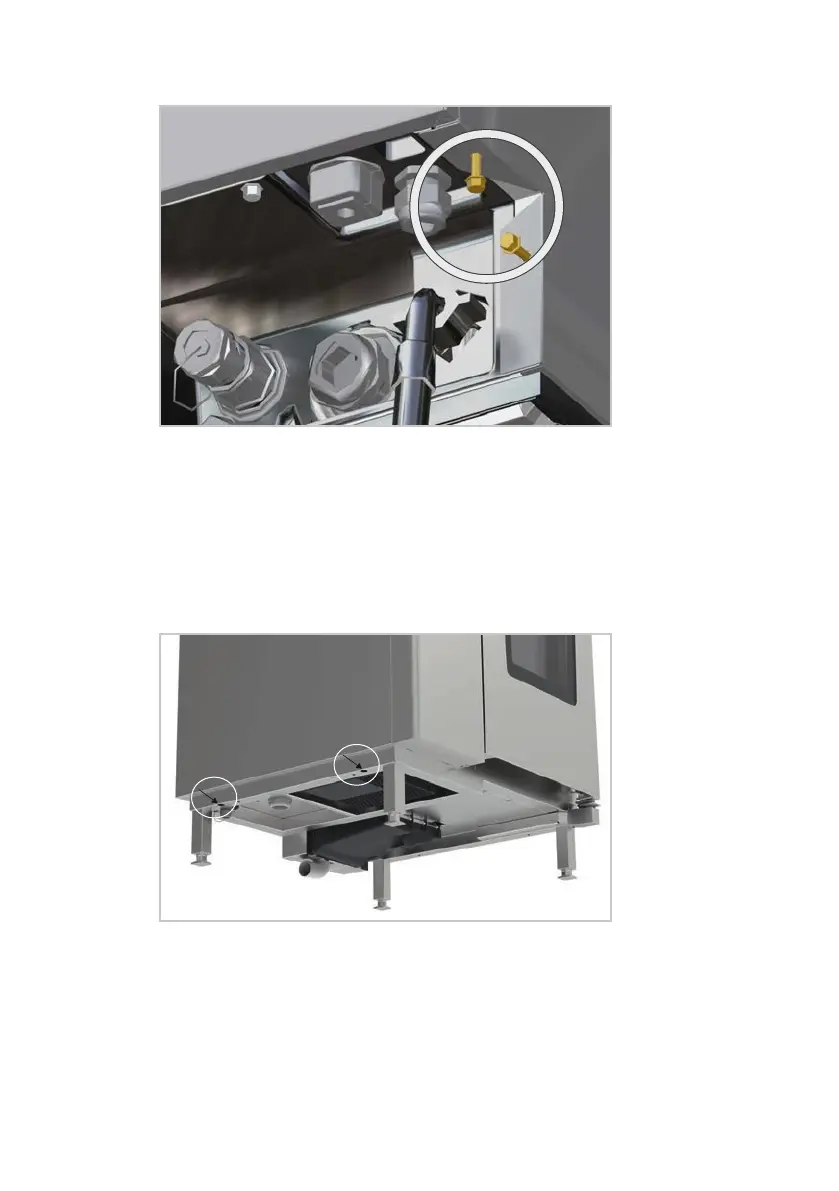

3. Loosen two screws in the recess of the unit's side panel.
4. Pull the left side panel downwards away from the unit.
5. Remove the side panel.
>> The electrical compartment is open.
Unit size 20-1/1 GN, 20-2/1 GN
1. Loosen two screws on the underside of the side panel.
> The openings to the screws are closed with a cover. Carefully remove the
cover to access the screws.
2. Lift up the left side panel from below and pull the side panel downwards
away from the unit.
