6 | Electrical connection
54 / 100 80.06.083_iCombiPro-iCombiClassic_IM_en-US

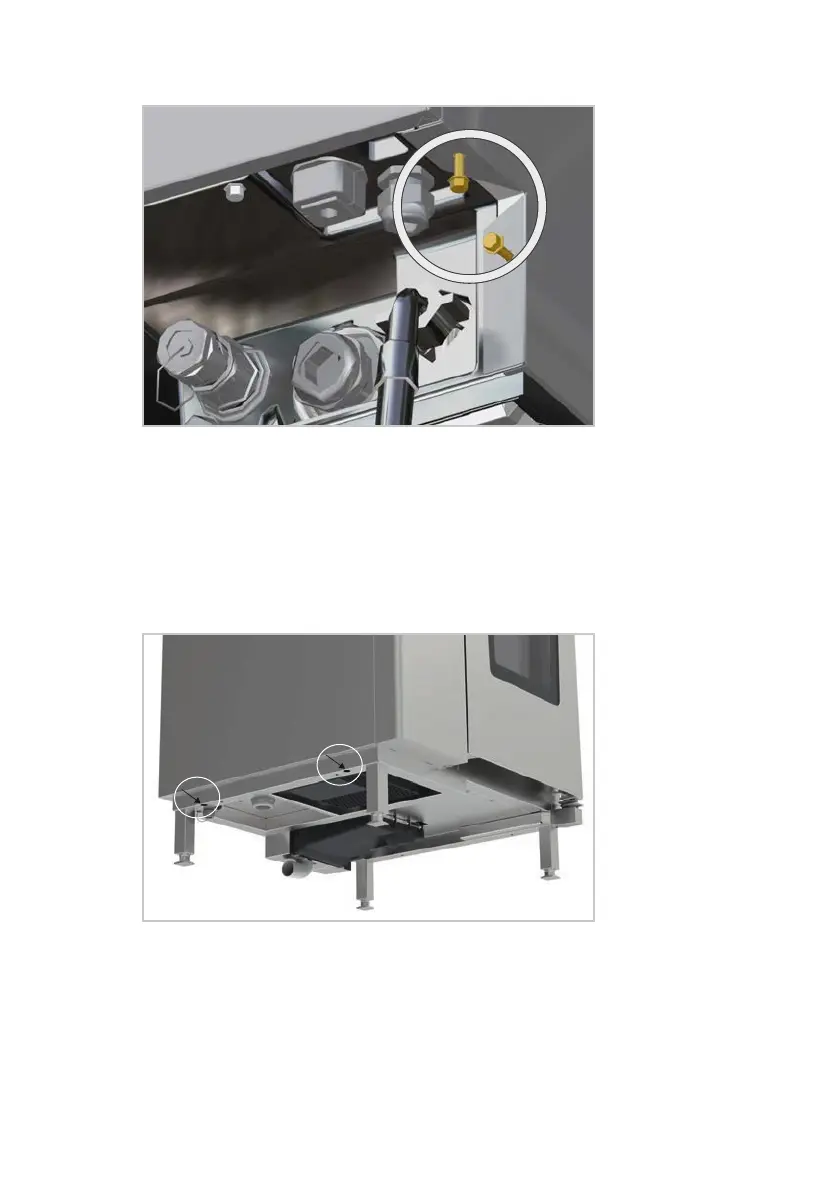

3. Loosen two screws in the recess of the rear side wall of the unit.
4. Pull the left side wall downwards away from the unit.
5. Remove the side wall.
>> The electrical compartment is open.
Unit size 20 half size GN, 20 full size GN
1. Loosen two screws on the underside of the side panel in recess of frame.
> The openings to the screws are closed with a cover. Remove the cover
carefully to access the screws.
2. Lift the left side wall from below and pull the side wall downwards away
from the unit.
