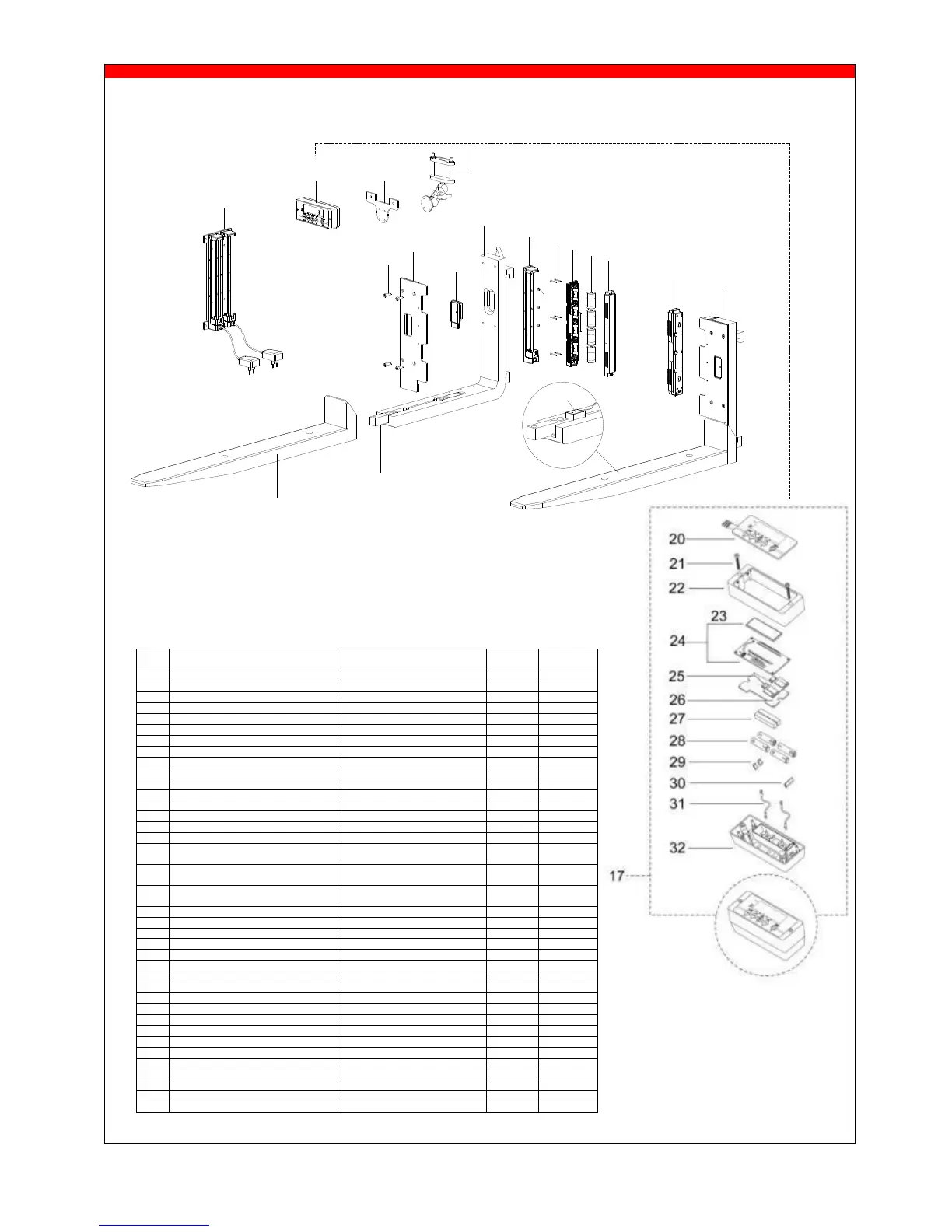

3. Exploded-view & parts list
Part
nr.
Designation
Article code
Number
Supplier
1
Assembled weighing fork
2
-
2
Battery pack (assembly without D-cellls)
BAP-IFORK
2
RAVAS
2a
with 1.5 V alkaline D-cellls (standard)
SA-BA-IFORK-ST
2
RAVAS
2b
with rechargable 1.2 V D-cells (option)
SA-BA-IFORK-RC
2
RAVAS
3
Top housing battery pack
2
-
4
Batteries (D-cell):
-
-
4a
A = regular 1.5 V D-cells (standard)
BA-1,5-DCELL
8
Buy locally
4b
B = rechargeable 1.2 V D-cells (option)
BA-1,5-DCELL-RC
8
Buy locally
5
Bottom housing battery pack
2
-
6
Philips-head screw M3 x 25
12
Buy locally
7
Round-head screw M6 x 8
MP-SCREW-M6-8-LOW-STST
6
Buy locally
8
Holder battery pack
BAP-HOLDER-WF
2
RAVAS
9
Weighing fork
WF-2A-100-45-608 (or 2B)
2
RAVAS
10
Loadcell
LC-2000
4
RAVAS
11
Loadcell fixation ring
MP-RING-LC-FIXATION
4
RAVAS
12
Fork shoe
FS-WF-25-1150-10-15-RAL7021
2
RAVAS
13
Bluetooth transmitterbox (assembly)
HO-J-RWV-BLT-F1
HO-J-RWV-BLT-F2
1
1
RAVAS
13a
Labels for Bluetooth transmitterboxes
(set with nr. 1 and 2)
SS-LABEL-WF-SMALL
1
RAVAS
14
Coverplate forks (left)
Coverplate forks (right)
MP-CP-RF-LEFT-FEM2A (or 2B)
MP-CP-RF-RIGHT-FEM2A
1
1
RAVAS
15
Socket-head screw M8 x 20
MP-BOLT-M8-20-CYL
8
Buy locally
16a
Mounting bracket indicator
MP-BRACKET-RAM-BB
1
RAVAS
16b
Indicator mounting support
MP-SUP-RAM-CLAMP-BASE
1
RAVAS
17
Indicator (assembled)
SA-IN-31-IFORK
1
RAVAS
18
Charger (option)
SA-CH-WF-DUAL
1
RAVAS
19
Level correction sensor (option)
EP-LEVELSENSOR
1
RAVAS
20
Touch panel
FR-31N-RAV-HO
1
RAVAS
21
Socket head screw M6x40
MP-BOLT-M6-40-CYL
2
RAVAS
22
Top housing indicator (red)
HOP-RAV-RAL3000-UPPER
1
RAVAS
23
Display
INP-31-DISPLAY
1
RAVAS
24
Indicator board
IN-31-N-NO-ADS
1
RAVAS
25
Bluetooth receiver board
EB-31-N-BLT-DUAL
1
RAVAS
26
Middle cover
HOP-MC
1
RAVAS
27
Cellrubber block
HOP-PACK-XTRA-RU-STRIP
1
RAVAS
28
AA battery 1.5V
BA-1,5-PENN-AA-R6
4
Buy locally
29
Contact snap single
BAP-SNAP-SINGLE
2
RAVAS
30
Contact snap dual
BAP-SNAP-DUAL
1
RAVAS
31
Strain relief
HOP-RAV-STRAINRELIEF
1
RAVAS
32
Bottom housing indicator
HOP-RAV-RAL9011-LOWER
1
RAVAS
2
3
4
5
6
8
7
13
14
15
11
12
17 16a
9
16b
18
10
1
