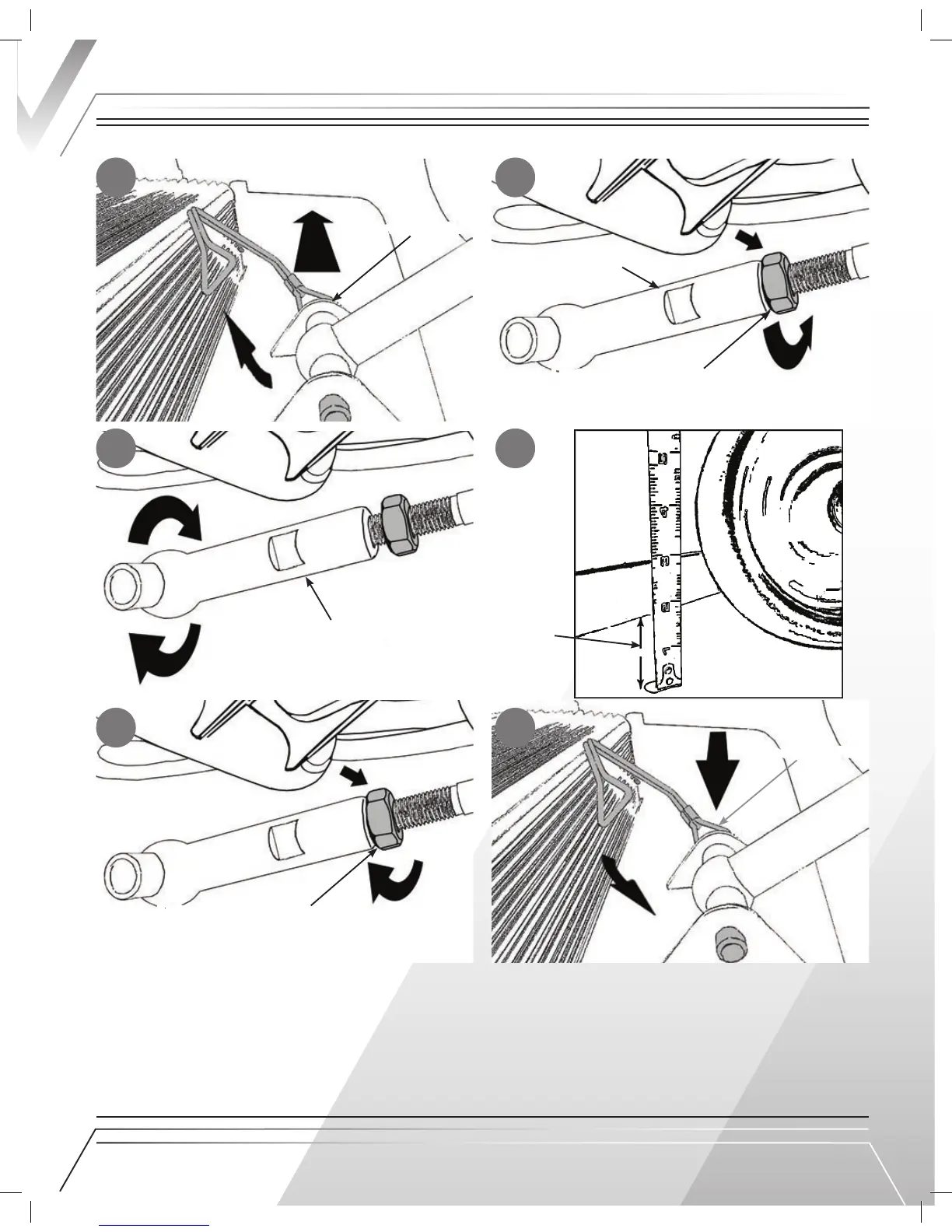

Front to Rear (Lock Nut) Adjustment
a. Ensure the MPV is turned off with the key removed, and that the deck is unplugged (see page 30 step C).
b. Remove the pin from the deck front link rod.
c. Loosen the lock nut using a 16mm wrench.
d. Tighten or loosen the rod end to adjust.
e. Measure and adjust again as required.
f. Once level, tighten the lock nut.
g. Replace the pin.
WWW. RAVENAMERI C A. C OM
servICe & MaIntenanCe
3 3
Lo o s e n 16 m m Lo c k Nu t
T i g h t e n 16 m m Lo c k Nu t
T i e Ro d En d
Me a s u r e
T i g h t e n o r Lo o s e n
Ro d En d
Re m o v e F r o n t Pi n
Re p l a c e F r o n t Pi n
CB
D
F
E
G
