Raven MPV-7100 User Manual

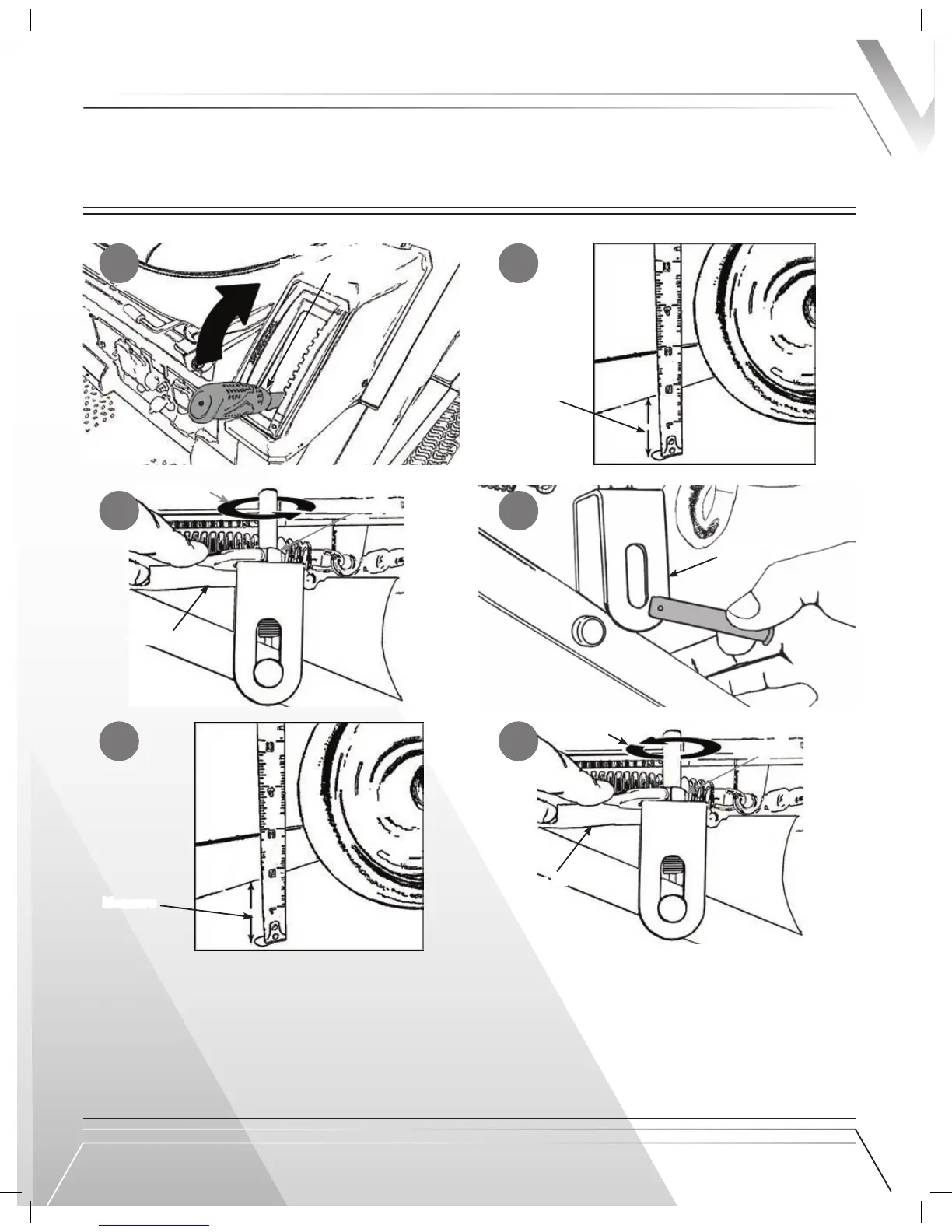

Side to Side Adjustment
a. Ensure the MPV is turned off with the key removed, and that the deck is unplugged (see page 30 step C).
b. Raise the cutting deck to the highest position.
c. Measure the distance from the outside edges of the deck to the ground. If they are equal, the deck is level.
d. If not, loosen the locknut with a 16mm wrench.
e. Disconnect the drop link clevis from the lift arm and turn the clevis left to lower or right to raise.
f. Reinstall the clevis to lift rod and measure again. Re-adjust the clevis as necessary to level the deck.
g. Once level re-tighten the locknut with the wrench.
h. Raise or lower the cutting deck as needed.
RAVEN MPV-7100/7100S OWNER’S MANUAL
Leveling the Deck
Before leveling the deck, ensure the MPV is parked on a level surface. Check the tires to ensure the rear tires are inated to
15 psi and that the front tires are inated 12 psi. If the tires are not properly inated, the appearance of your lawn and cutting
height may be affected.
servICe & MaIntenanCe
3 2
Ra i s e D e c k t o
H i g h e s t Po s i t i o n
Me a s u r e
Me a s u r e
16 m m Wr e n c h
16 m m Wr e n c h
Lo c k n u t
Lo c k n u t
Lo o s e n
Lo o s e n
D r o p Li n k
C l e v i s
CB
D
F
E
G
