Chapter5

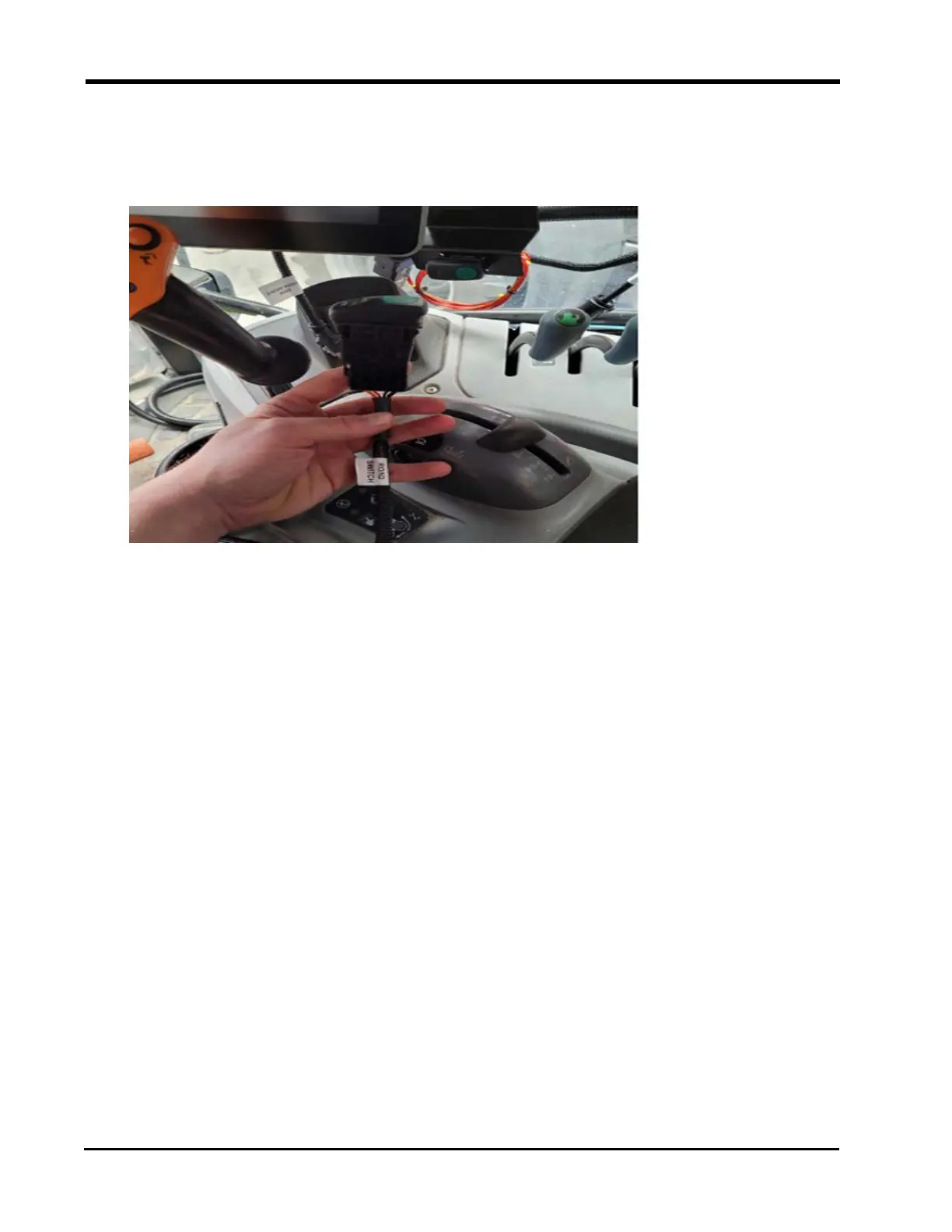

12. Route the road switch connector from the DirecSteer main cable (P/N 115-8000-474)
through the open cavity and connect it to the road switch.
Note: Use the provided adapter for the switch if needed.
44
