Install RS1™ with DirecSteer

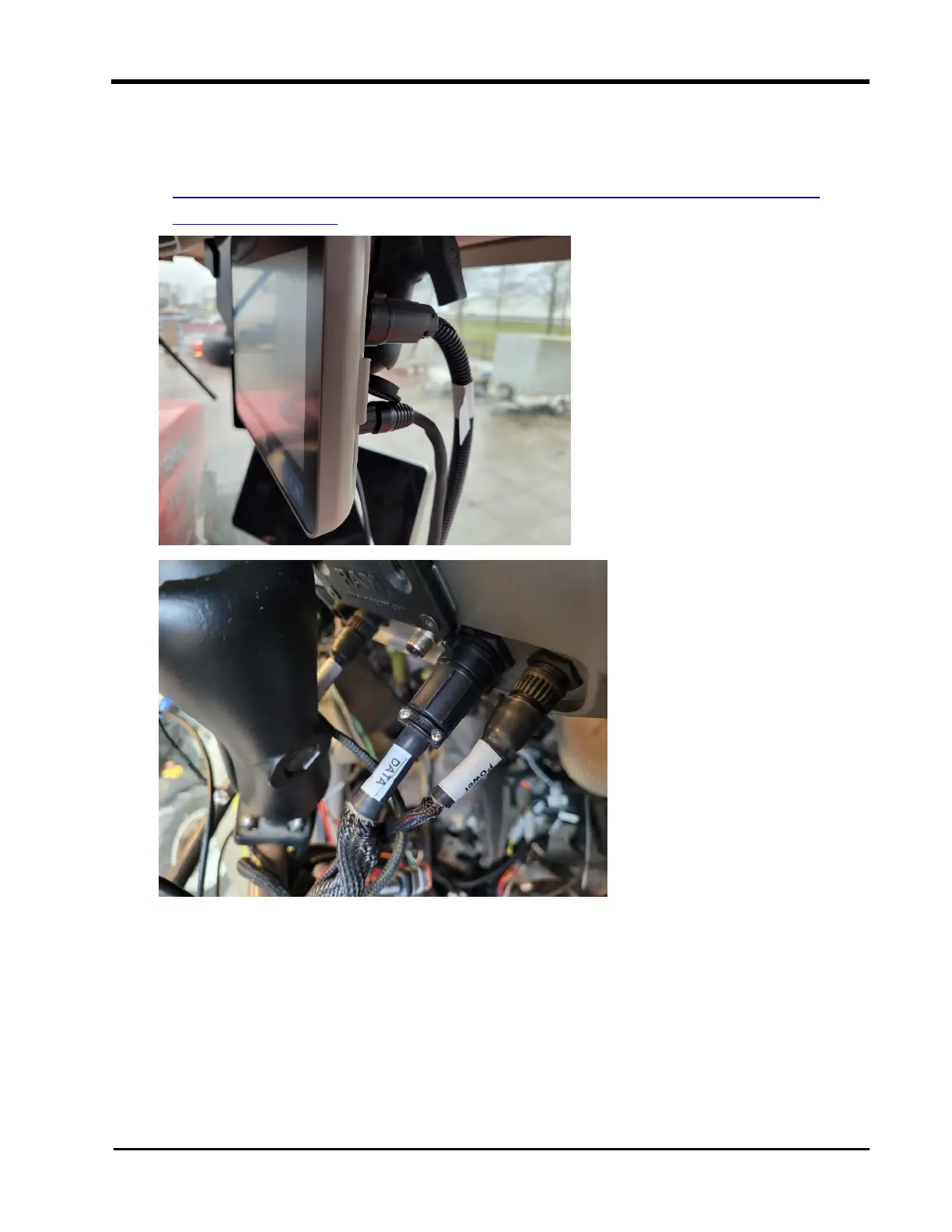

18. Connect the field computer cable to the mating connectors on the back of the display.
Note: Refer to System Diagrams for cable part numbers and refer to
https://ravenindustries.mcoutput.com/fieldcomp/en-us/Content/0-General/CRX_
DeviceOverview.htm for specific device connections.
19. Once everything is installed and connected, hide the cabling behind the lining
whenever possible, and tie down the cabling where appropriate to avoid loose cabling.
47
