Chapter6
3. If Installing a Kit with IBBC:
a. Starting from the battery, route the implement ready power harness (P/N 115-
8000-060/315) through the machine so the IBBC connectors end up near the
back of the machine.
b. Ensure the 12-pin connector can still be routed into the cab of the machine.

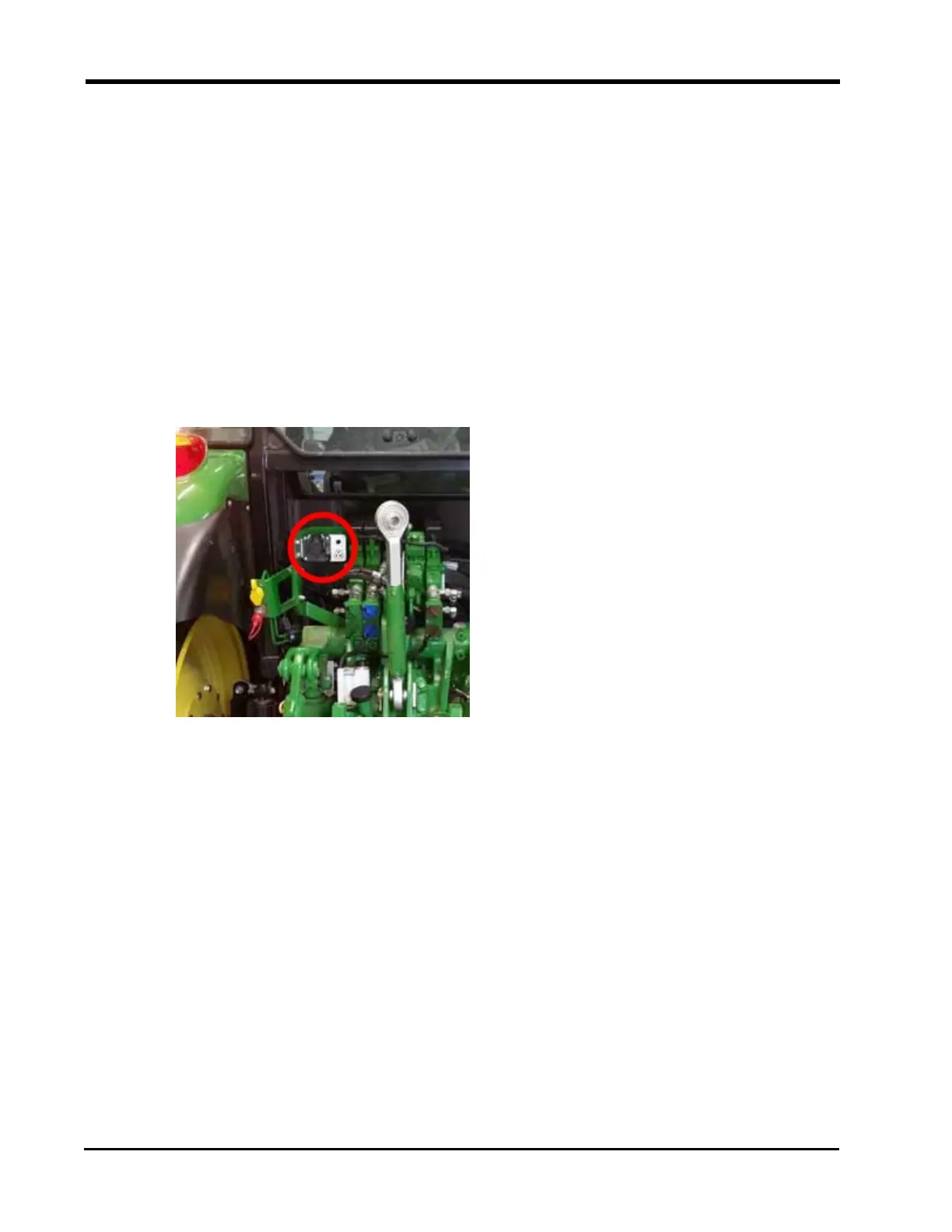

c. At the back of the machine, find the most appropriate mounting position for the
IBBC connector. Be careful to consider moving parts or clinch points.
d. Use the supplied tools to attach the IBBC connector (P/N 408-4002-131) to the
mounting plate.
e. Mount the IBBC plate and connector to the back of the machine.
f. Connect the ISObus IBBC connector from the DirecSteer power harness (P/N
115-8000-060/315) to mounted IBBC connector.
If Installing a Kit without IBBC:
a. Starting from the battery, route the basic power harness (P/N 115-8000-141) to a
point in the machine where the 12-pin connector cable can enter the cabin.
62
