Install
SC1™/TC1™
with
DirecSteer
12.

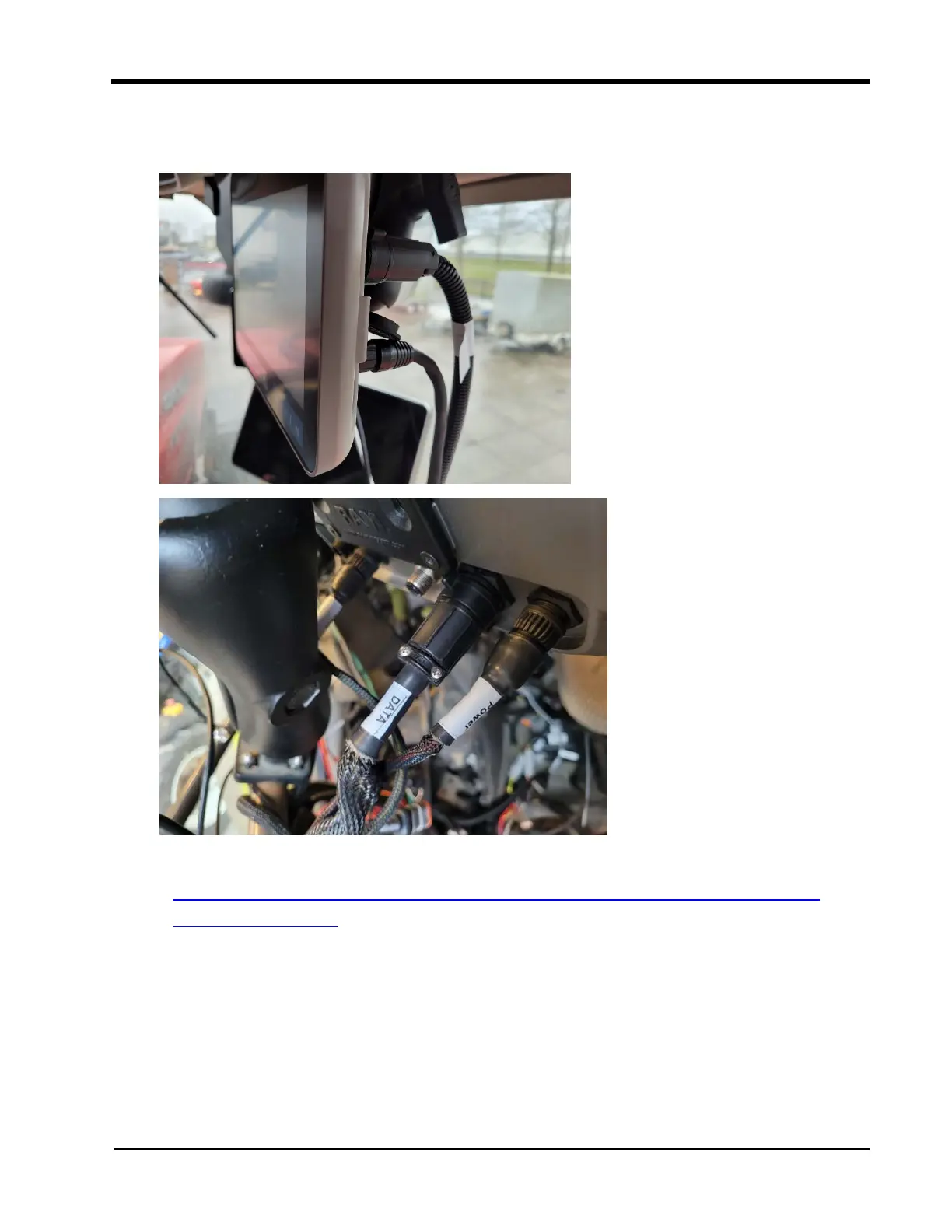

Connect
the
terminal
connectors
of
the
field
computer
harness
(P/N
115-8000-
064/327)
to
the
back
of
the
terminals.
Note:
Refer
to
System
Diagrams
for
cable
part
numbers
and
refer
to
https://ravenindustries.mcoutput.com/fieldcom
p/en-us/Content/0-General/CRX_
DeviceOverview.htm
for
specific
devi
ce
connections.
