8 TerraGator B Raven RS1™ ISO Guidance and Steering Installation Guide

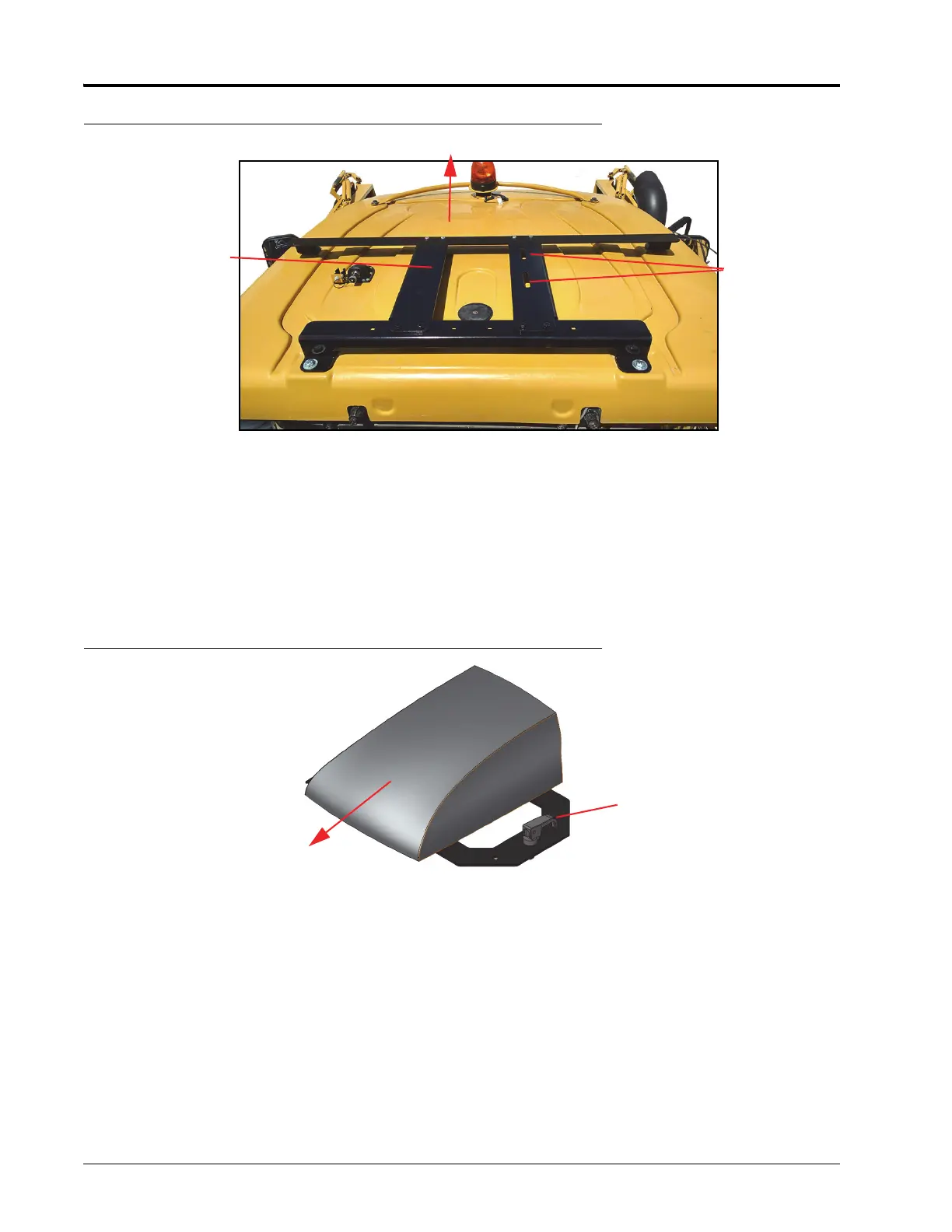

FIGURE 13. RS1 Roof Bracket Orientation
26. Secure the roof bracket and the top of the cab using the remaining hardware removed from the top of the cab
earlier.
27. Insert the two tabs on the RS1 mounting bracket into the roof bracket slot on the roof bracket.
28.Insert the latch into the hole on the roof bracket and secure in place by pressing down on the handle.
NOTE: The latch may need to be adjusted to provide proper compression. To do this, tighten the nut on the
bottom of the latch.
FIGURE 14. RS1 Unit Orientation
29.Connect the 12-pin Deutsch connector to the mating receptacle on the RS1 unit.
Front of Machine
RS1 Bracket to
Roof Bracket
Slots
Latch Hole
Towards Machine Front
Latch Handle
