Manual No. 016-5033-151 Rev C. EC30597 12/17 7
TERRAGATOR B RAVEN RS1™ ISO GUIDANCE AND STEERING INSTALLATION GUIDE

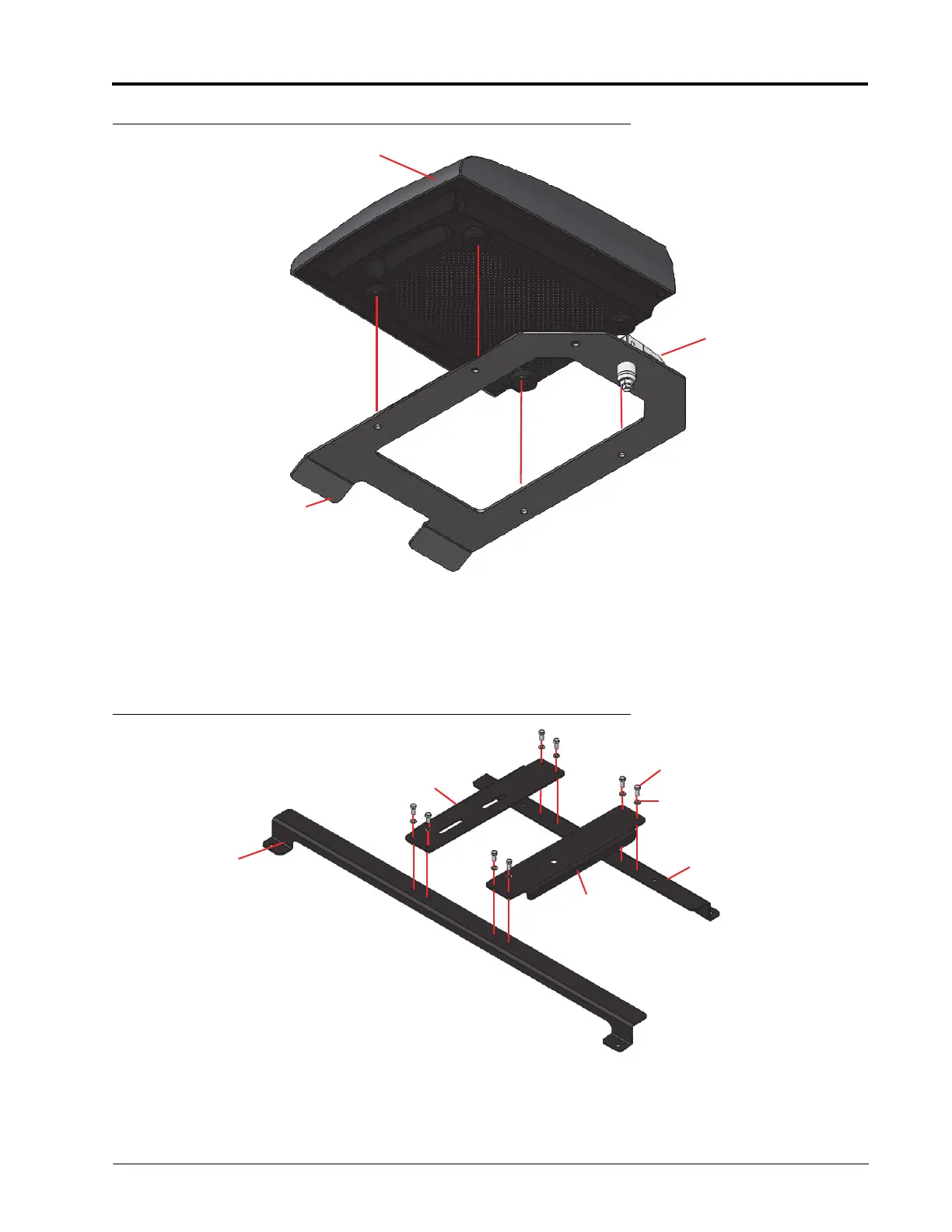

FIGURE 11. Mounting RS1 Unit to Mounting Bracket
24.Assemble the four pieces of the RS1 roof bracket (as shown in“RS1 Roof Bracket Assembly” on page 7). Use the
eight provided 3/8” x 1 bolts and lock washers to secure the assembly together.
NOTE: If the machine came equipped with a roof rack, reinstall the existing roof cap then skip to step 27.
FIGURE 12. RS1 Roof Bracket Assembly
25.Place the RS1 unit roof bracket on the cab with it oriented as shown in Figure 13 on page 8. The holes on the
corners of the roof bracket will line up with existing cab mounting holes.
Front of RS1
Unit
Mounting Tabs
Latch
Back Bracket
Notch Bracket
Latch Bracket
Front Bracket
Bolt
Nut
To Next Page
