CHAPTER 3
18 Miller Nitro 5000 Series & New Holland Guardian F Series RS1™ HDU Guidance and Steering Installation Manual

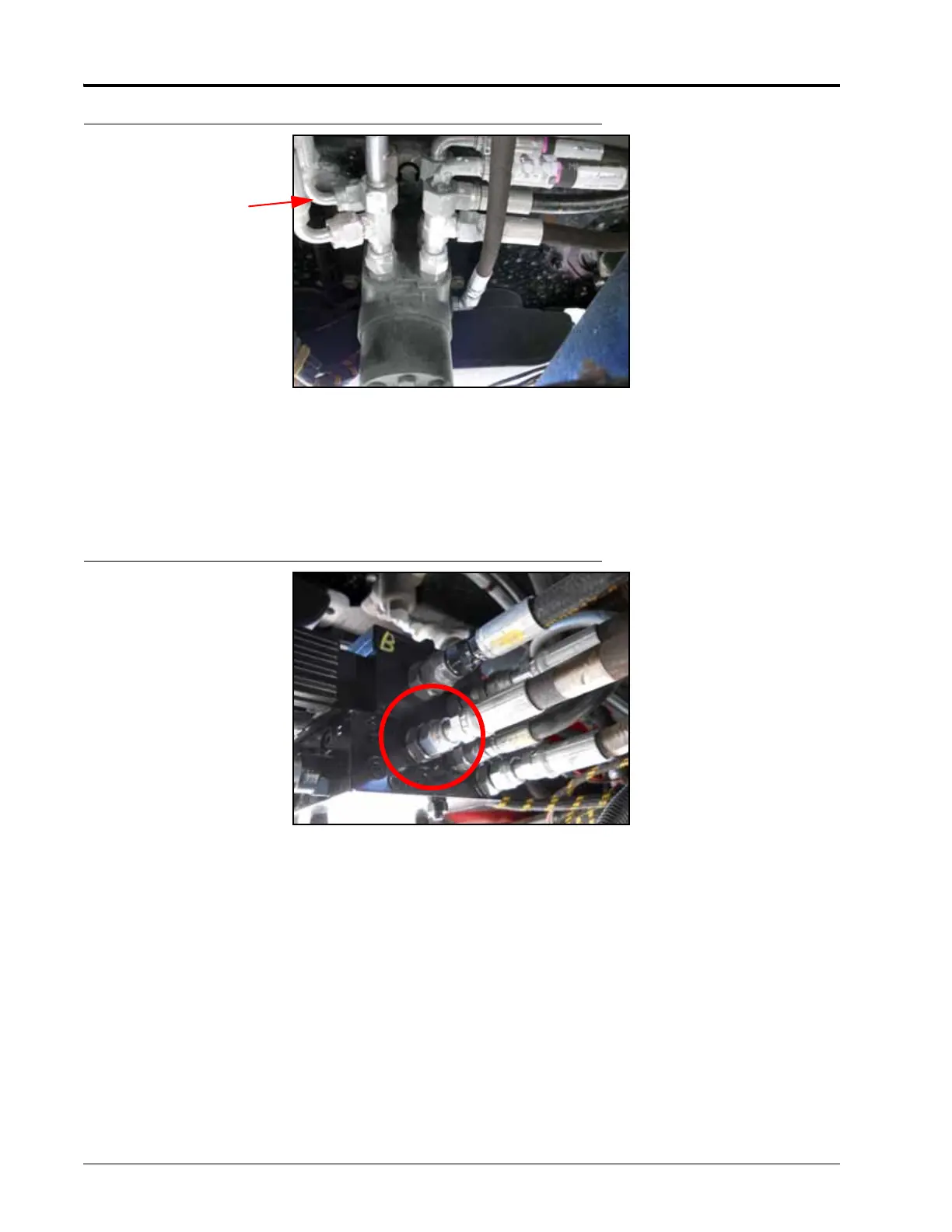

FIGURE 8. Tank Hose Installed on Steering Valve
6. Disconnect the machine’s tank hose from the steering orbital.
7. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) in the open port of the steering
orbital.
8. Connect the machine’s tank hose to the opposite end of the installed tee fitting.
9. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-948) on the 90° end of the installed tee fitting.
FIGURE 9. Tank Hose Installed on Steering Orbital
10. Connect the straight end of the installed hydraulic hose to the fitting installed in Port T of the steering valve.
Installed Hydraulic
Hose
(P/N 214-1000-948)
To Next Page
