Raven RS1/HDU - Chapter 5 Cab Component Installation; Install the RS1 Unit

CHAPTER
5
P/N 016-5032-114 Rev. A 27
CHAPTER 5 CAB COMPONENT
INSTALLATION
INSTALL THE RS1 UNIT

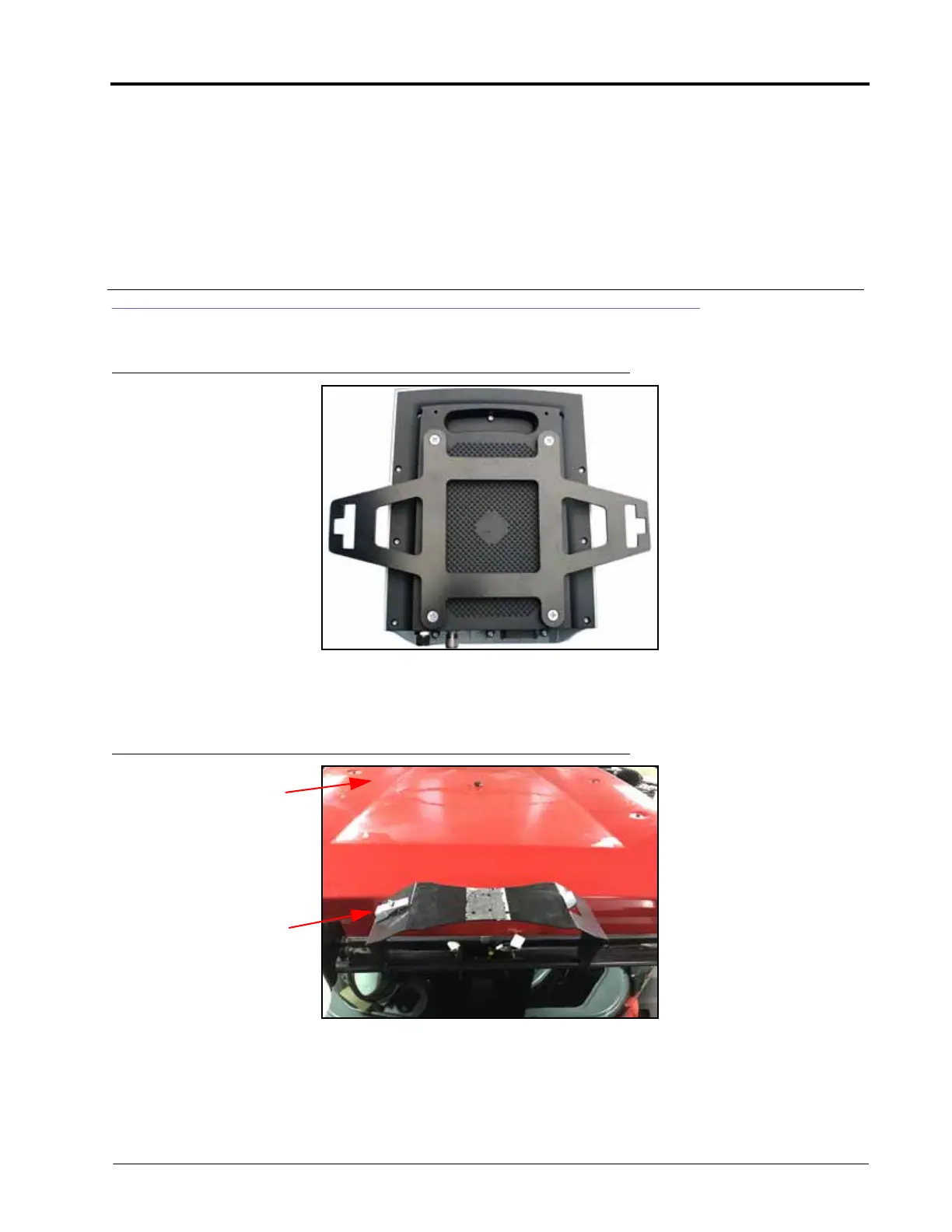

FIGURE 1. Mounting Bracket Installed
1. Install the RS1 mounting bracket (P/N 107-0172-498) on the bottom of the RS1 unit using four 1/4”-20 x 1/2” flat
head machine screws (P/N 311-0003-041).
FIGURE 2. Machine’s Existing Receiver Mounting Bracket
2. Install the over-center padlock latch on the machine’s mounting bracket located on the rear of the cab roof
using two #6-32 zinc torx screws (P/N 311-0004-107) and two #6-32 nylon insert lock nuts (P/N 312-4000-052).
Front of Cab
Over-Center
Padlock Latch
Mounting
Location
