Manual No. 016-0159-845
17
Inst
allation
F
an Sensor

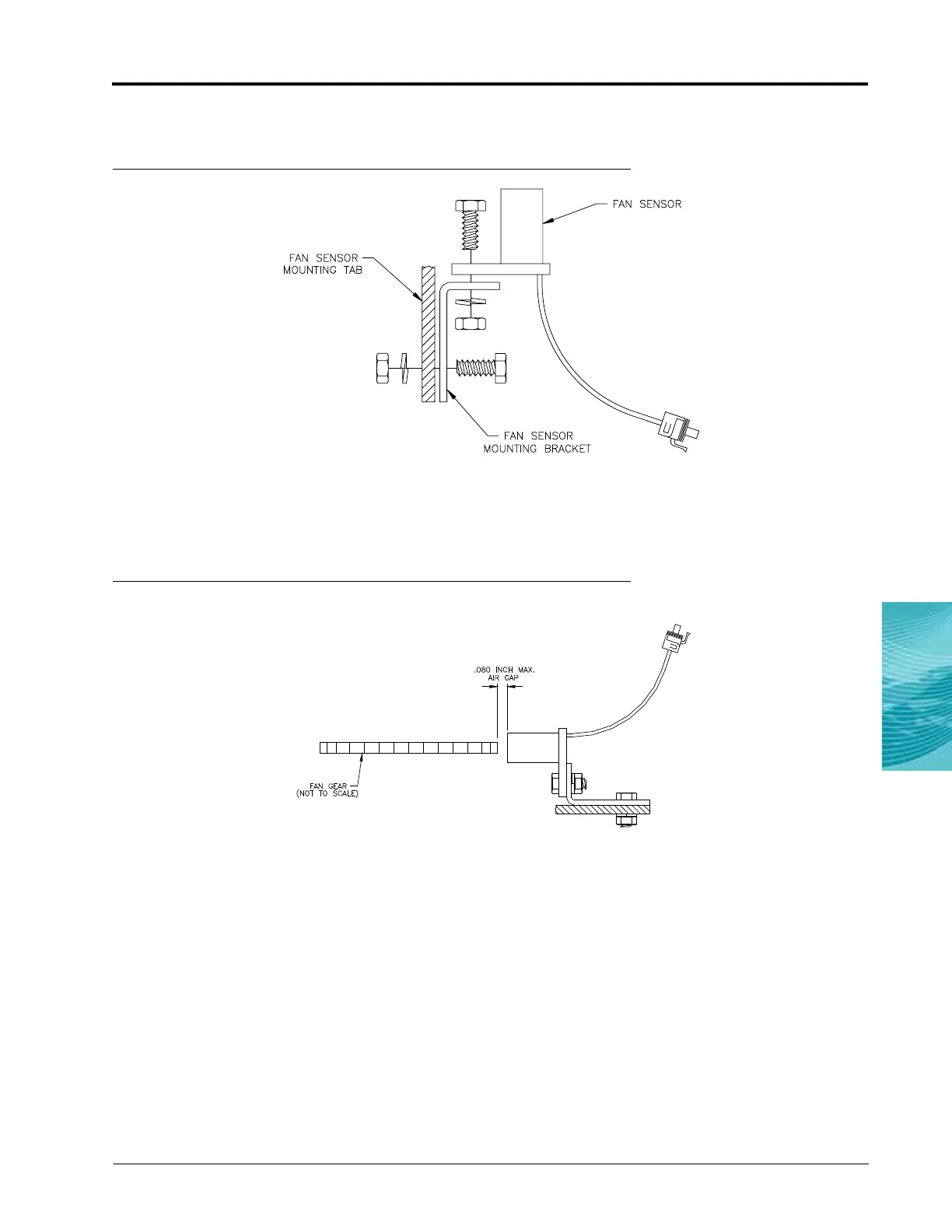

FIGURE 8.
Fan Sensor Assembly
1.
Attach
the fan RPM sensor to the fan sensor br
acke
t using a stainless steel bolt, lock washer
, and nut.
2.
Mount the fan sensor assembly on
the fan sensor mounting t
ab using a st
ainless steel bolt, lock washer
,
and nut.
FIGURE 9.
Fan Sensor Adjustment
3.
Adjust the air gap between the fan gear an
d fan sensor to betwe
en .040 and .080 inch.
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Important Safety Information
7
Hydraulic Safety
8
Electrical Safety
8
Chapter 2 Introduction
9
Introduction
9
Unit Definitions and Conversions
10
Unit of Measure Definitions
10
Unit of Measure Conversions
10
Calculating Machine's Calibration Values
11
Calculate the Boom Cal Value
11
Calculate the Speed Cal Value
11
Raven Radar Only
11
Wheel Drive Speed Sensors Only
11
Calculate the Spreader Constant Value
12
Formula Calculation
12
Catch Test Calculation
13
New Leader Mark IV Interface Spreader Constant Values
14
Calculate the Meter Cal Value
15
Calculate the Valve Cal Value
15
Calculate the Rate Cal Value
16
Chapter 3 Calibration Card
17
Introduction
17
Chapter 4 Installation
19
Sensor Installation
19
Raven Radar Speed Sensor
19
Wheel Drive Speed Sensor
20
Rim Drilling for Four and Eight Hole Wheel Stud Patterns - Optional
20
Rim Drilling for Six Hole Wheel Stud Patterns - Optional
21
Mounting the Wheel Drive Speed Sensor
21
Phoenix 10 GPS Speed Sensor
22
Fan Sensor
23
Bin Level Sensor
24
Encoder Installation
25
Mounting the Encoder
25
Control Valve Installation
26
Install the Control Valve
26
Console and Cabling Installation
27
Battery Connections
30
Console Identification
31
Console Features
32
Chapter 5 Console Programming and Calibration
33
Button Definitions
34
Calibration Buttons
34
Function Buttons
34
Console Programming
35
Data Entry
35
Initial Console Programming
35
Refining the Speed Cal Value - Raven Radar Only
36
Refining the Speed Cal Value - Phoenix 10 Speed Sensors Only
37
Refining the Spreader Constant Value
37
Programming for New Leader Mark IV Interface
38
Changing Initial Console Programming
38
Programming Additional System Data
39
Vol Tank
39
Time and Date
39
Power down
39
System Features
40
Data Menu
40
Data Logger On/Off
41
Self Test Feature
42
Volume/Min Rate Fault
43
Volume/Area Rate Alarm
43
Low Tank Fault
43
Automatic Rate
43
Control Valve Delay and Valve Advance
44
Zero Speed Shut-Off
44
Data Lock Feature
44
Activate the Data Lock Code
44
Change the Data Lock Code
44
Entering Data in the Data Lock Mode
45
Clear the Data-Lock Code
45
Decimal Shift Feature
45
Shift the Decimal Place
46
Unshift the Decimal Place
46
Chapter 6 Initial System Setup and Testing
47
Initial System Setup
47
Initial System Field Test
47
Chapter 7 Preventative Maintenance and Troubleshooting
49
General Preventative Maintenance
49
Testing Flow Meter/Encoder Cables
49
Speed Sensor Cables
50
Testing Speed Sensor Extension Cables
50
Troubleshooting
51
Console Issues
51
Rate Control Issues
52
Chapter 8 Replacement Parts
55
Limited Warranty
59
