20 SCS 660 & 660M Serial Interface for Granular Applications Installation & Service Manual
Control Valve Installation
Install the Control Valve

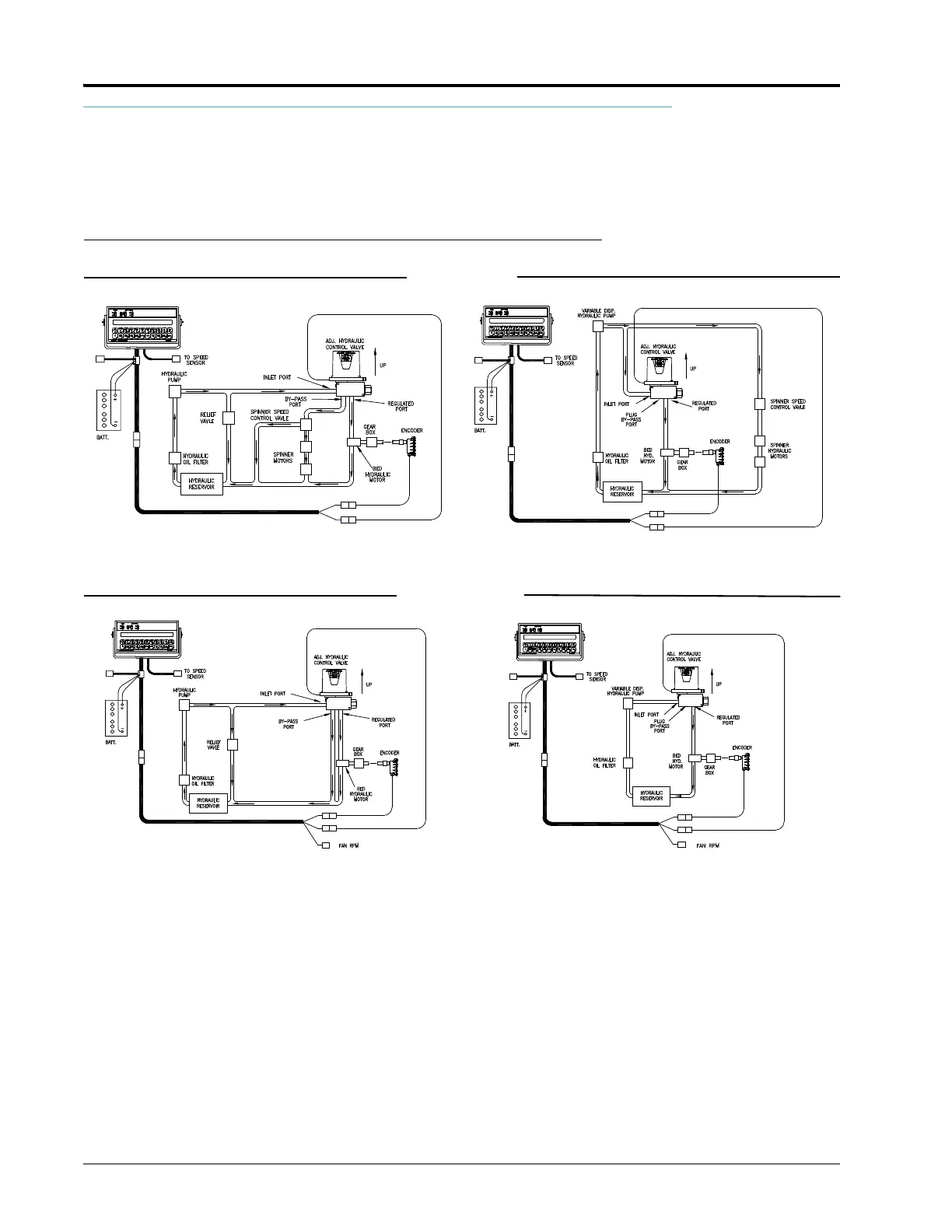

FIGURE 13. Control Valve Installation Diagram
1. Install the control valve with the motor in the upright position, in the location appropriate for the machine’s
configuration. Refer to the diagrams above.
Spinner System
Pneumatic System
Open Hydraulic System (Fixed Displacement Pump)
Open Hydraulic System (Fixed Displacement Pump)
Closed Hydraulic System (Variable Displacement Pump)
Closed Hydraulic System (Variable Displacement Pump)
