Manual # 016-0190-074 Rev B 06/07
5
C HAPTER
M
OUNTING
THE
U
NIVERSAL
B
RACKET
AND
V
ALVE
1. Attach pressure switch to PS port on SmarTrax valve before mounting
valve to ensure proper clearances.

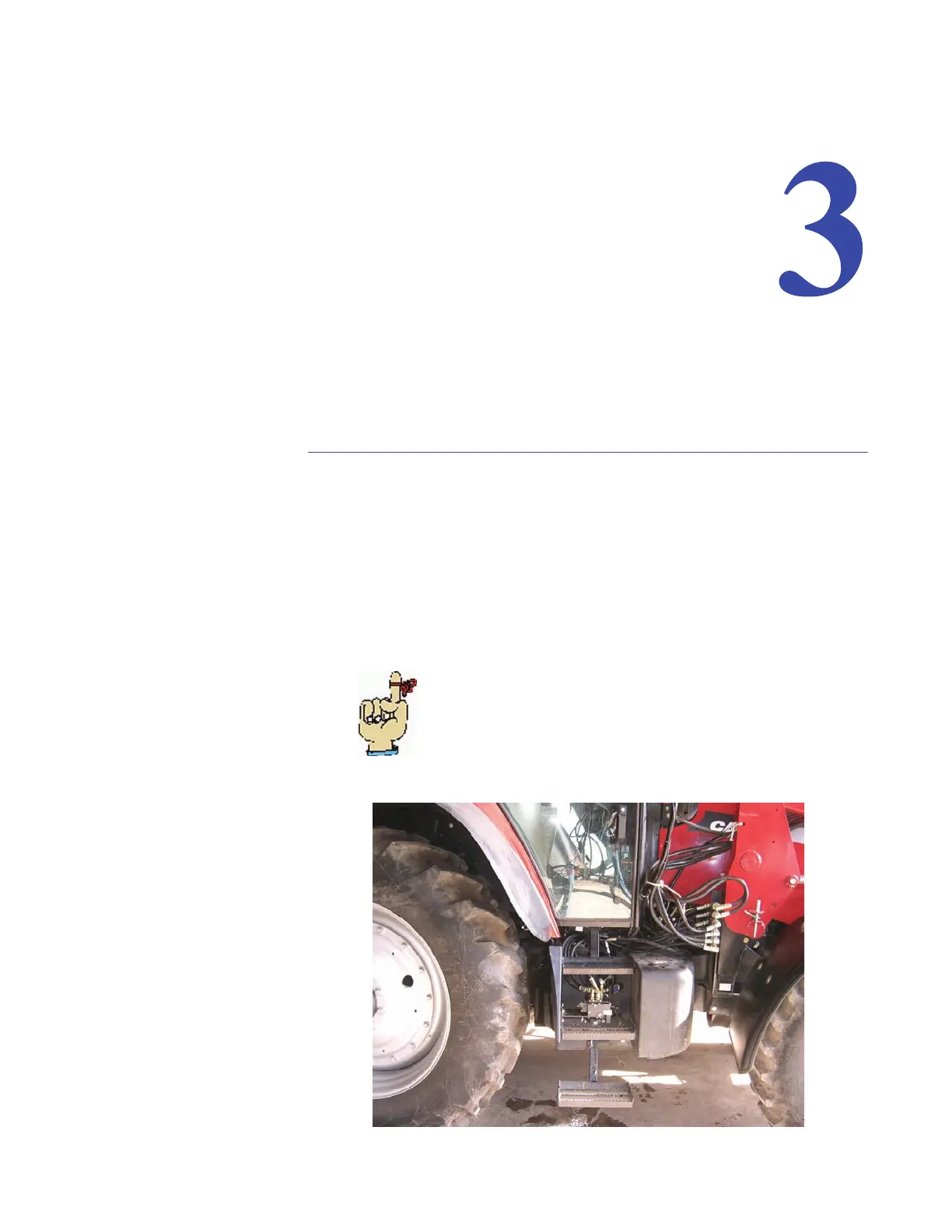

2. Using the t-shaped bracket, mount the valve on the right side of the
machine, either between the steps (by drilling holes in front of the rear
fender), or by using the steel plate on the lower right front corner of the
cab.
Remember: The supplied hoses are meant to reach to the side
of the tractor and will have excess length when the valve is
mounted on the corner of the cab.
