APPENDIX B
14 Raven Switch Pro™ Installation & Reference Manual
SWITCH PRO FOR SCS 4400 CABLED SYSTEMS
Refer to the following diagrams in reference to Switch Pro systems replacing an SCS 4400 console with the 117-
0171-168 kits.

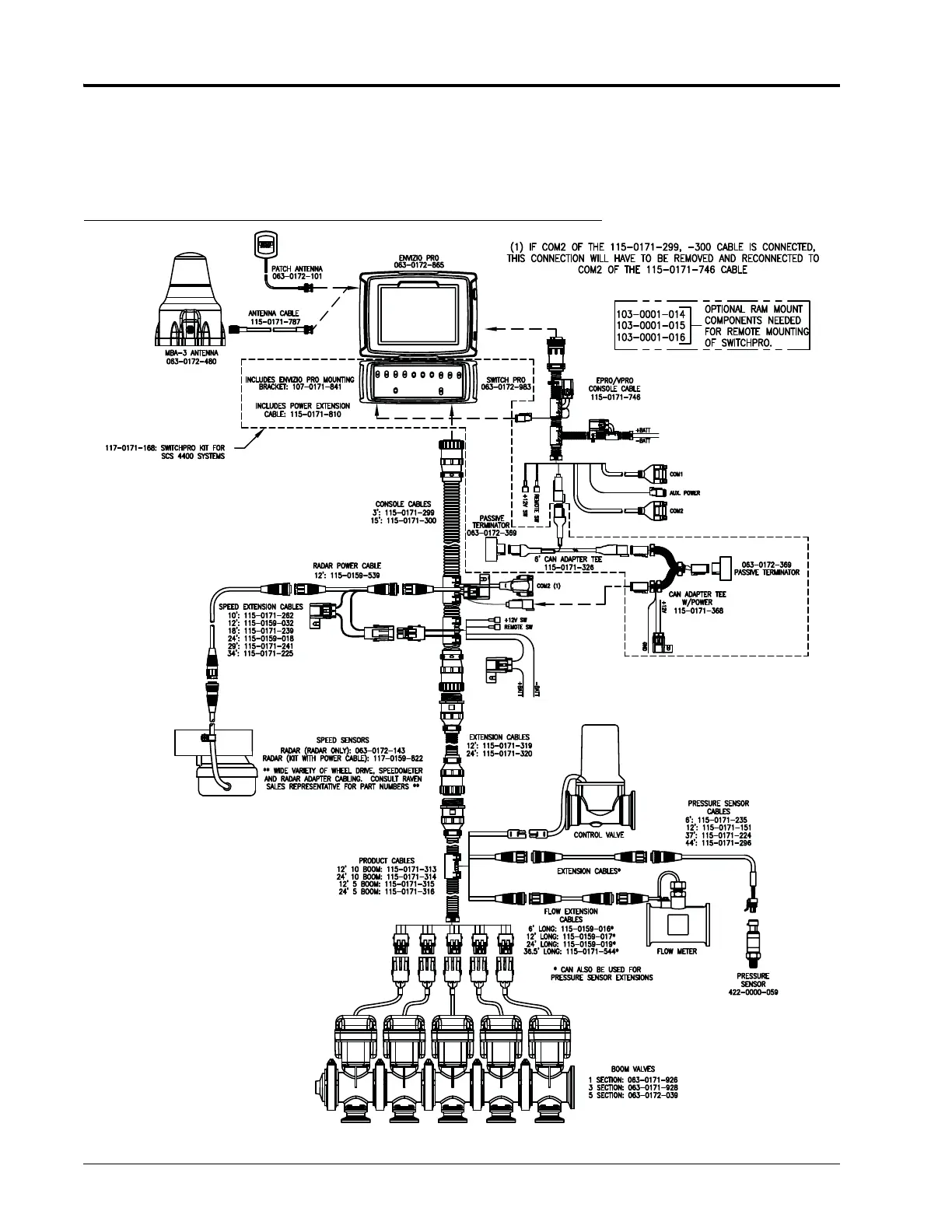

FIGURE 3. Envizio Pro with Switch Pro for SCS 4400 Cabled Systems
