APPENDIX B
18 Raven Switch Pro™ Installation & Reference Manual
SWITCH PRO COMBO CABLE TO SCS 4400 SYSTEMS
Refer to the following diagram when using the combo cable (P/N 115-0171-821) for SCS 4400 Systems (Kits 117-
0171-171 or 172).

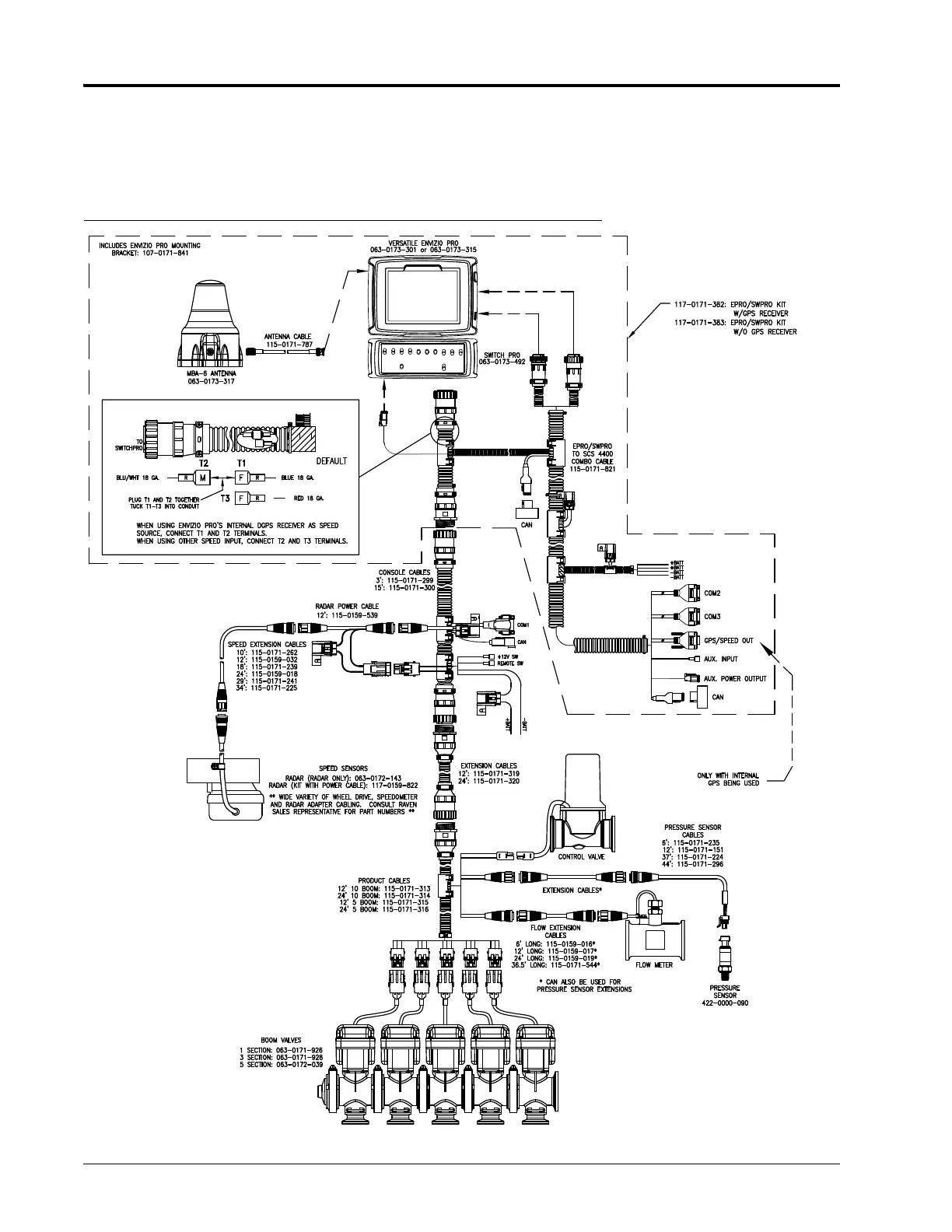

FIGURE 7. Envizio Pro with Switch Pro Combo Cable for SCS 4400 Cabled Systems
