Hydraulic System Installation: Install the Left and Right Steering Hoses 15
HYDRAULIC SYSTEM INSTALLATION

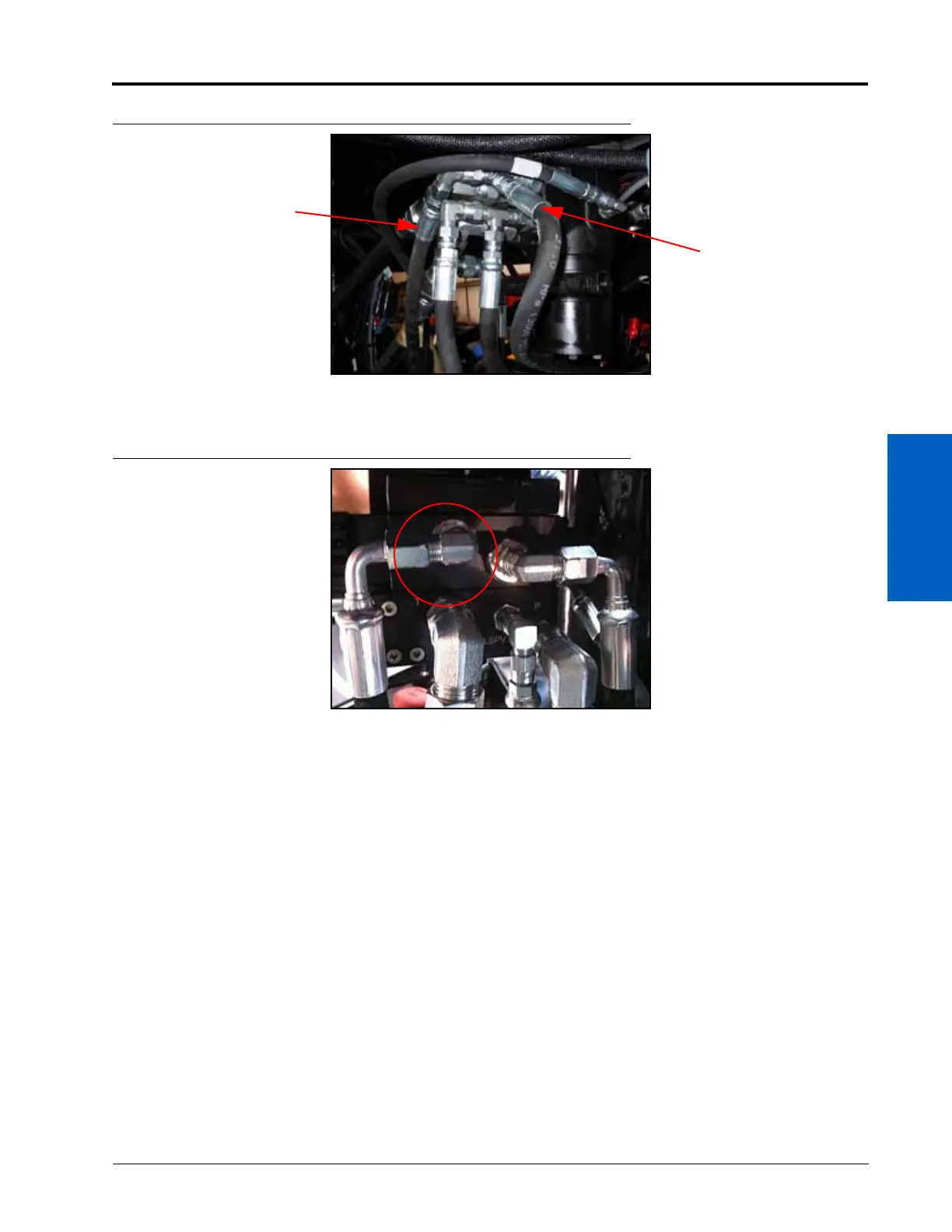

FIGURE 6. Left Steering Hose Installed on Steering Orbital
3. Install the straight end of the supplied hydraulic hose (P/N 214-1000-780) on the open port of the tee fitting.
FIGURE 7. Left Steering Hose Installed on Steering Valve
4. Connect the 90° end of the installed hydraulic hose to the fitting installed in Port A of the steering valve
(P/N 334-0003-088).
Machine’s
Left
Steering
Hose
Installed Left
Steering Hose
(P/N 214-1000-
780)
