14 RBR Enterprise Vector 300 LS/Venturi LS RS1/HDU Installation Manual
INSTALL THE LEFT AND RIGHT STEERING HOSES

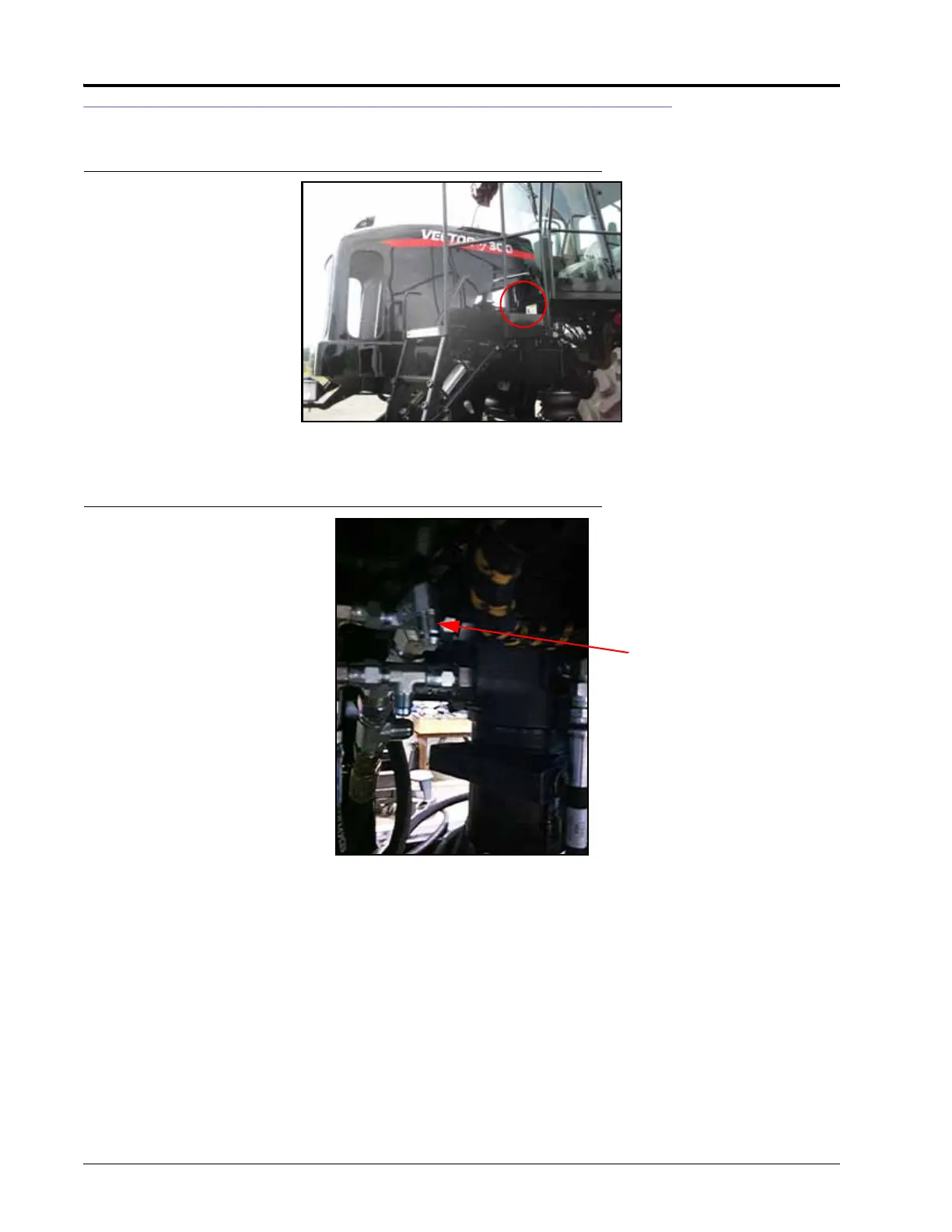

FIGURE 4. Steering Orbital Location
1. Locate the machine’s steering orbital under the hood, just in front of the cab.
FIGURE 5. Left Steering Port on Steering Orbital
2. Remove the cap from the tee fitting installed in the left steering port (upper-right corner) of the steering
orbital.
Left Steering Port
