Note:
1. After removing the caliper pad retainer, do not squeeze the front brake lever. Squeezing the front
brake lever may cause the brake caliper to clamp, making it difficult to insert the disc brake rotor.
2. When installing the front wheel, pay attention to the installation of the disc brake rotor and
caliper. After installation, ensure the front wheel rotates smoothly without any unusual noise.
3. When installing the disc brake rotor, apply anaerobic adhesive to the threaded portion (heat the
threaded portion when disassembling).

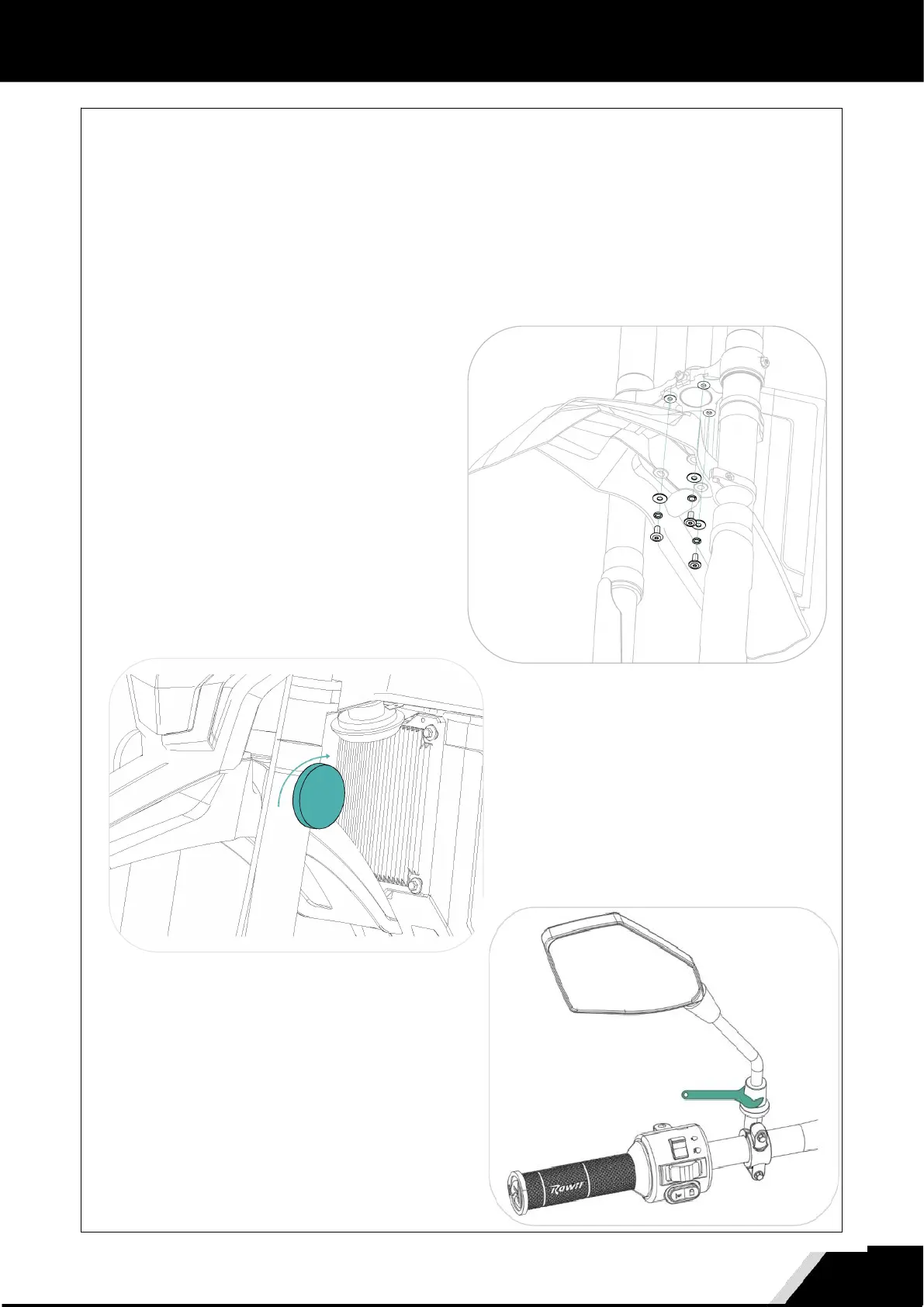

Installation of the front mudguard
Use a 5# hex key wrench to secure
the front mudguard to the lower
mounting plate using 3 screws,
including flat washers and spring
washers.
Installing the front reflectors
Rotate clockwise to install the
front reflectors on both sides of
the front forks.
Installation of the rearview mirror
Adjust the rearview mirror to the
desired position and tighten the nut
using a 14# open-end wrench.
(Example shown with E Mark
handlebars in the diagram.)
To Next Page
