IMPORTANT: DURING BURNER REMOVAL CARE
MUST BE TAKEN NOT TO DAMAGE THE CERAMIC
FIBRE INSULATION.

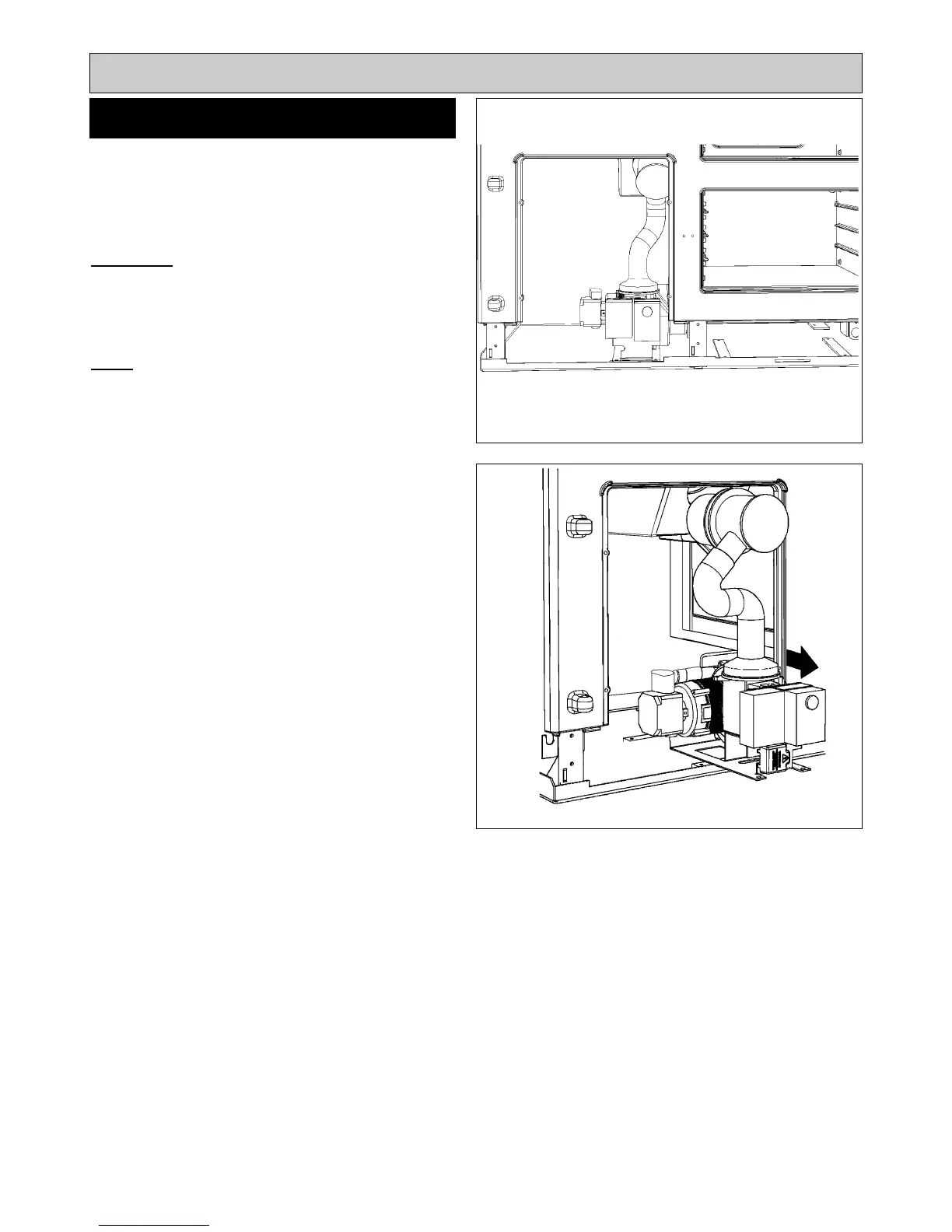

SEE FIGS 2 & 3
FLEXIHEAD
1. Using a 13mm spanner, unscrew top securing bolt
and remove the horseshoe clamp.
2. Withdraw the burner head.
BODY
1. Using a 10mm spanner remove 2 baseplate securing
screws.
2. Withdraw burner body complete with flexi-head.
6
BURNER REMOVAL
Fig. 2
Fig. 3
DESN 515886
DESN 515887
Burner Removal
