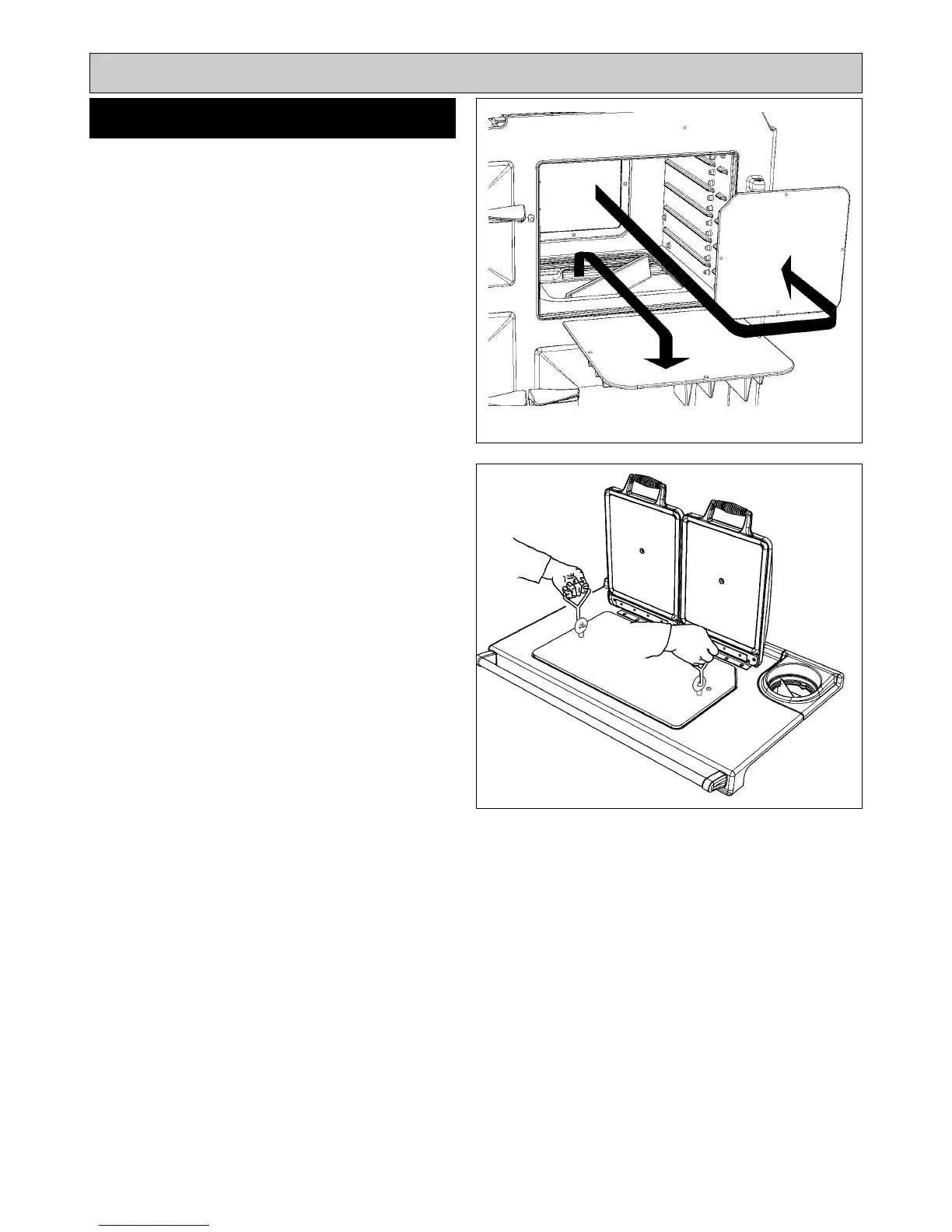

SEE FIG. 4 & 4A
1. Remove the top oven door and place in a safe
position. (Rayburn 600K only).
2. Remove side and base access doors (complete with
gaskets) using hex. driver.
3. Thoroughly clean top, side and base flueways through
access apertures with brush.
4. Remove all debris with vacuum cleaner.
5. Replace side and base access doors (replace gaskets
if necessary). Secure in position using hex. driver.
6. Remove hotplate by unscrewing 2 x countersunk hex
screws, insert lifting eyes and lift hotplate out with
hooks provided.
7. Brush and clean in between hotplate ribs on
underside.
8. Examine soft rope seal located around hotplate
aperture in top plate and two rope seals on hotspot.
Replace if frayed or damaged.
9. Replace hotplate ensuring the underside ribs are on
the LH side and that it seals to the top plate.
7
Cleaning
OVEN & HOTPLATE FLUEWAY
CLEANING
Fig. 4 DESN 515764
Fig. 4A DESN 515783
