Rayburn 680KCD C - Page 10

Cleaning
SEE FIGS 7 & 8
1. Remove the top oven door (Rayburn 680KCD C/F
only) and place in a safe position.
2. Remove side and base access doors (complete with
gaskets) using hex. driver.
3. Thoroughly clean top, side and base flueways through
access apertures with brush.
4. Remove all debris with vacuum cleaner.
5. Replace side and base access doors (replace gaskets
if necessary). Secure in position using hex. driver.
6. TO REMOVE THE HOTPLATE:
Remove nut and
washer from inside the roasting oven, top left hand
side. Unscrew 2 countersunk hex. screws, insert
lifting eyes and lift hotplate out with hooks provided.
7. Brush and clean in between hotplate ribs on
underside.
8. Examine soft rope seal located around hotplate
aperture in top plate and two rope seals on hotspot.
Replace if frayed or damaged.
9. Replace hotplate ensuring the underside ribs are on
the LH side and that it seals to the top plate.

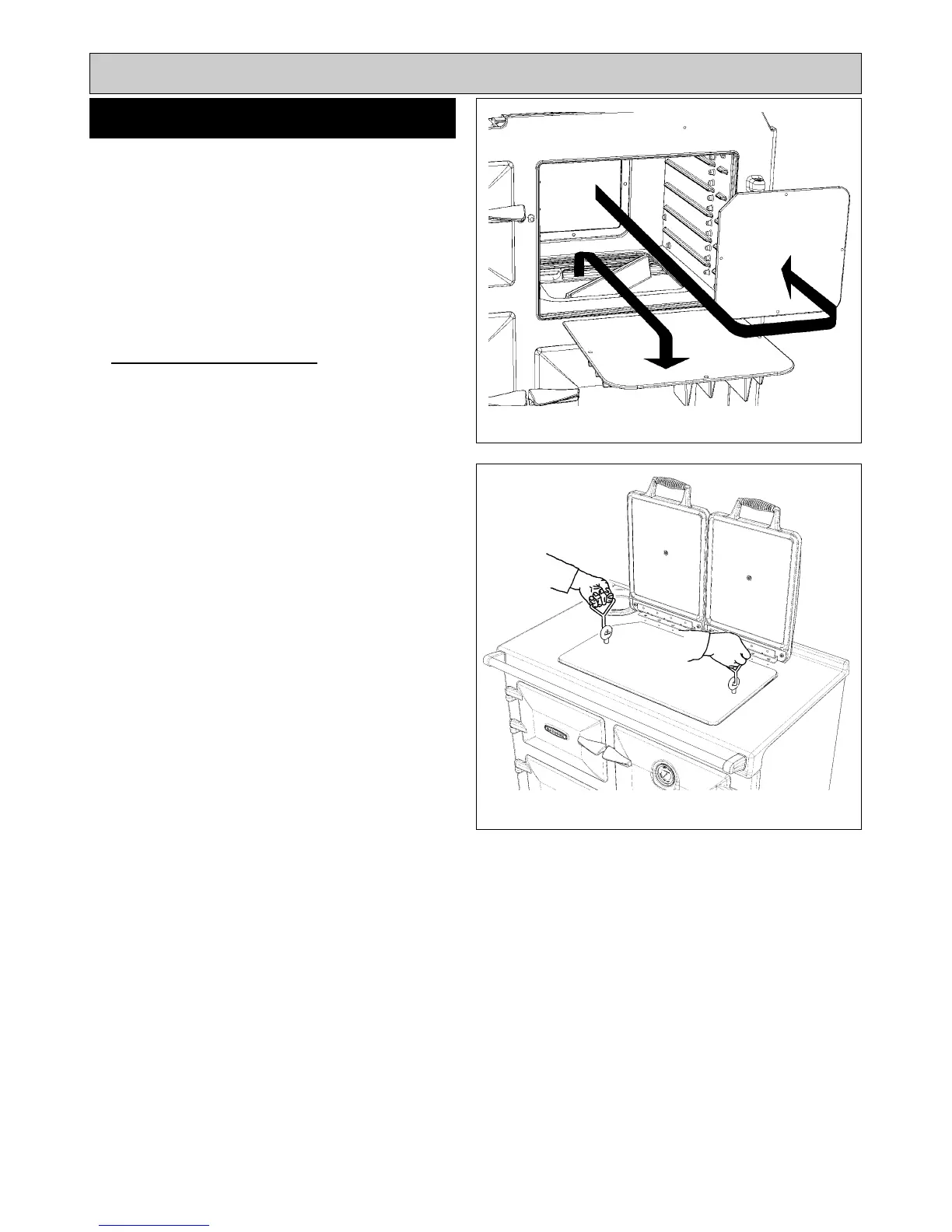

OVEN & HOTPLATE FLUEWAY
CLEANING
Fig. 7 DESN 515764
Fig. 8 - Rayburn 680KCD C/F shown DESN 516262
10
