Rayburn 680KCD C - Boiler Burner Removal; Cooker Burner Removal

IMPORTANT: DURING BURNER REMOVAL CARE
MUST BE TAKEN NOT TO DAMAGE THE CERAMIC
FIBRE INSULATION.
SEE FIGS. 2 and 3
BOILER BURNER
1. Place a sheet on the floor in front of the cooker to act
as a working area.
2. Remove lower LH door (Rayburn 680KCD C/F only)
and burner aperture cover and store in a safe place.
3. Unscrew jubilee clip and remove flexi air intake pipe
from burner.
4. Using a 13mm spanner, remove top securing bolt and
remove burner by rotating it approximately 90°
counterclockwise and drawing it away from the boiler.
COOKER BURNER
1. Unscrew jubilee clip and remove flexi air intake.
2. Using a 13mm spanner, unscrew top securing bolt and
remove burner by rotating clockwise and drawing
away from under the cooker.
7

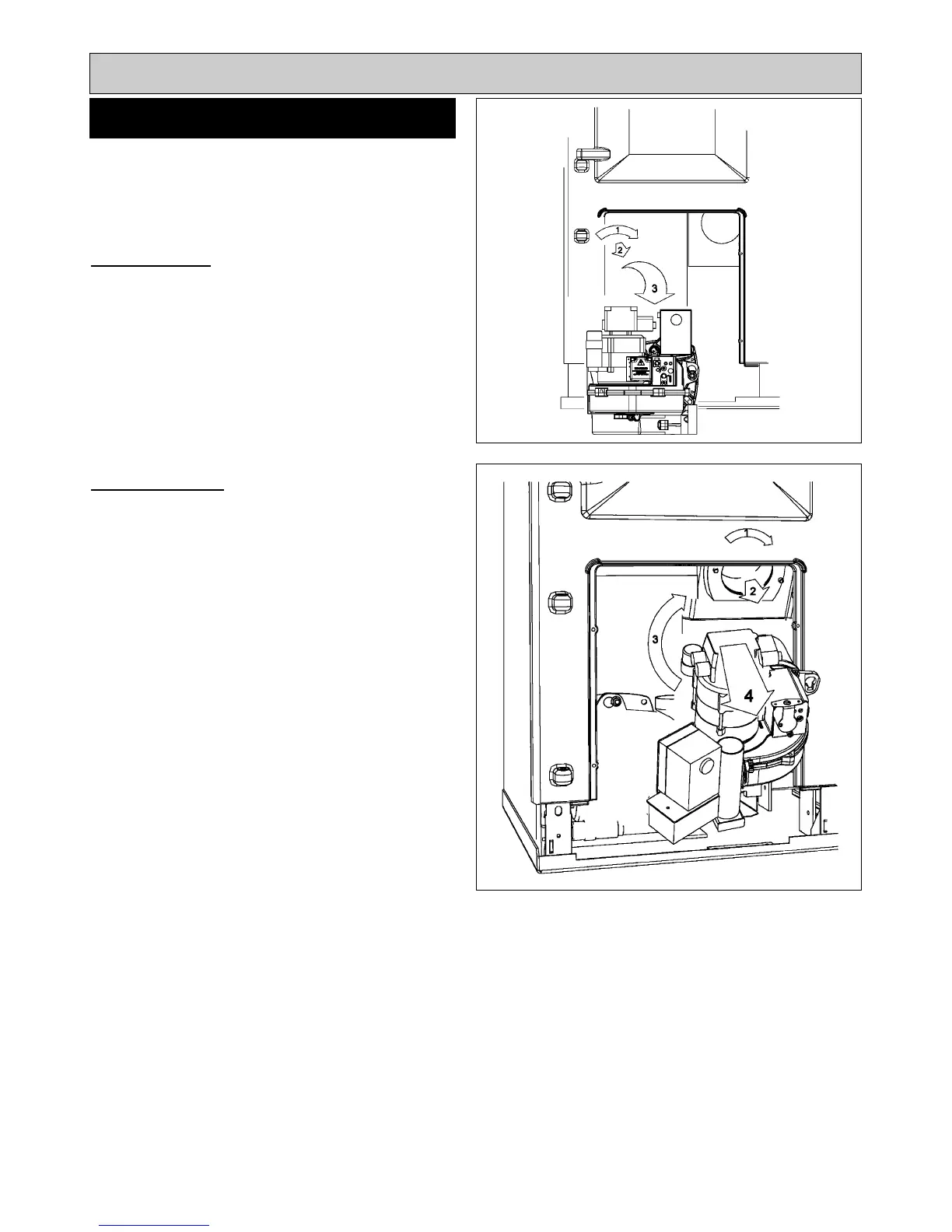

BURNER REMOVAL
Fig. 2
Fig. 3
DESN 515960
DESN 515961
Burner Removal
