SEE FIG. 24
Follow instructions in sections BURNER ACCESS, Steps
1 to 3, and BURNER REMOVAL.
1. Remove both HT leads from ignitor.
2. Remove mains plug from ignitor.
3. Remove 2 ignitor securing screws.
4. Remove ignitor.
5. Fit new ignitor, re-assemble in reverse order.
SEE FIG. 25
Follow instructions in sections BURNER ACCESS, Steps
1 to 3, and BURNER REMOVAL.
1. Remove plug.
2. Remove solenoid securing nut and washer.
3. Remove solenoid coil.
4. Fit new solenoid coil, re-assemble in reverse order.
18

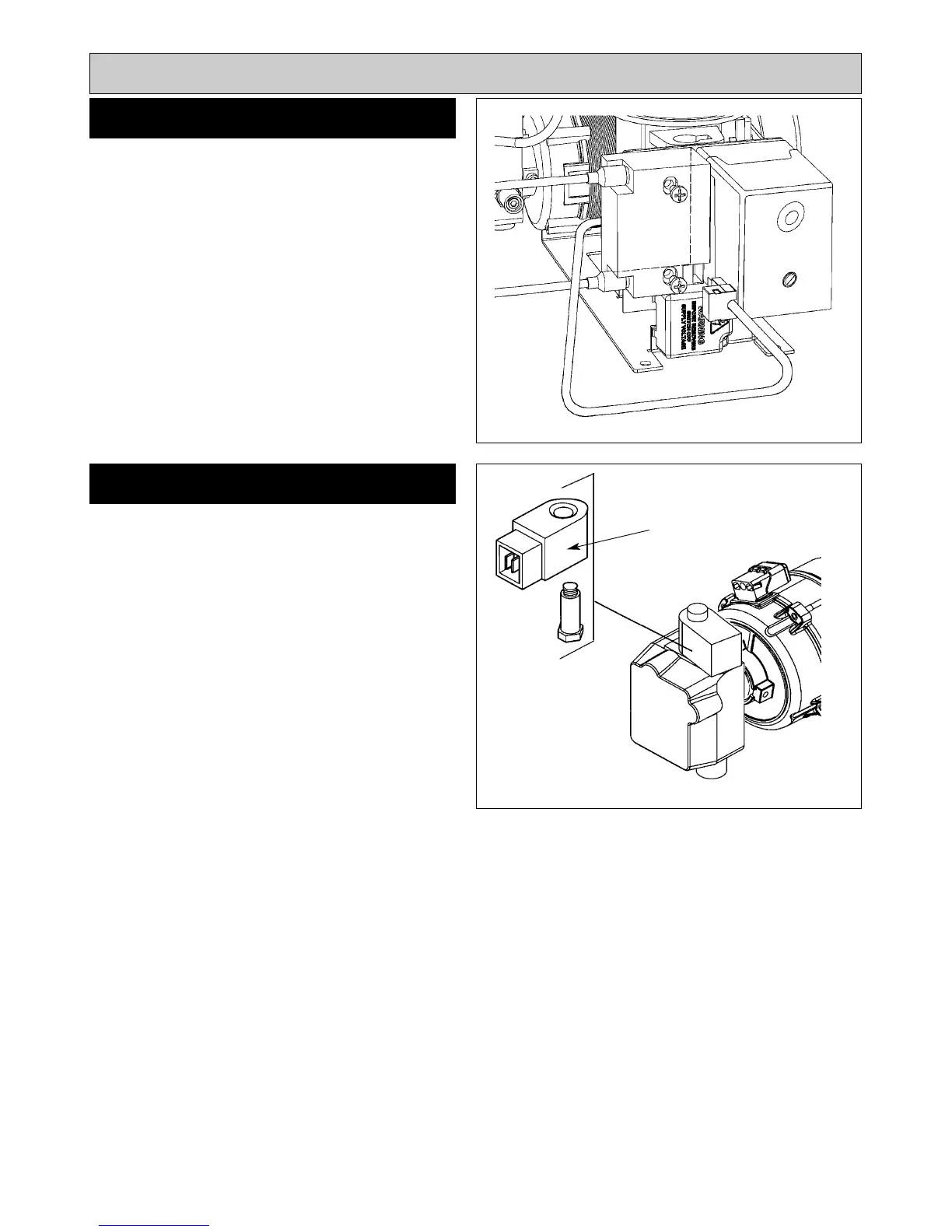

Replacement of parts (Burner)
Fig. 24 DESN 516265
SOLENOID COIL
IGNITOR
Fig. 25 DESN 515972
SOLENOID
