RG 1635A STUMP CUTTER
RAYCO
®
38
MAINTENANCE INTERVALS

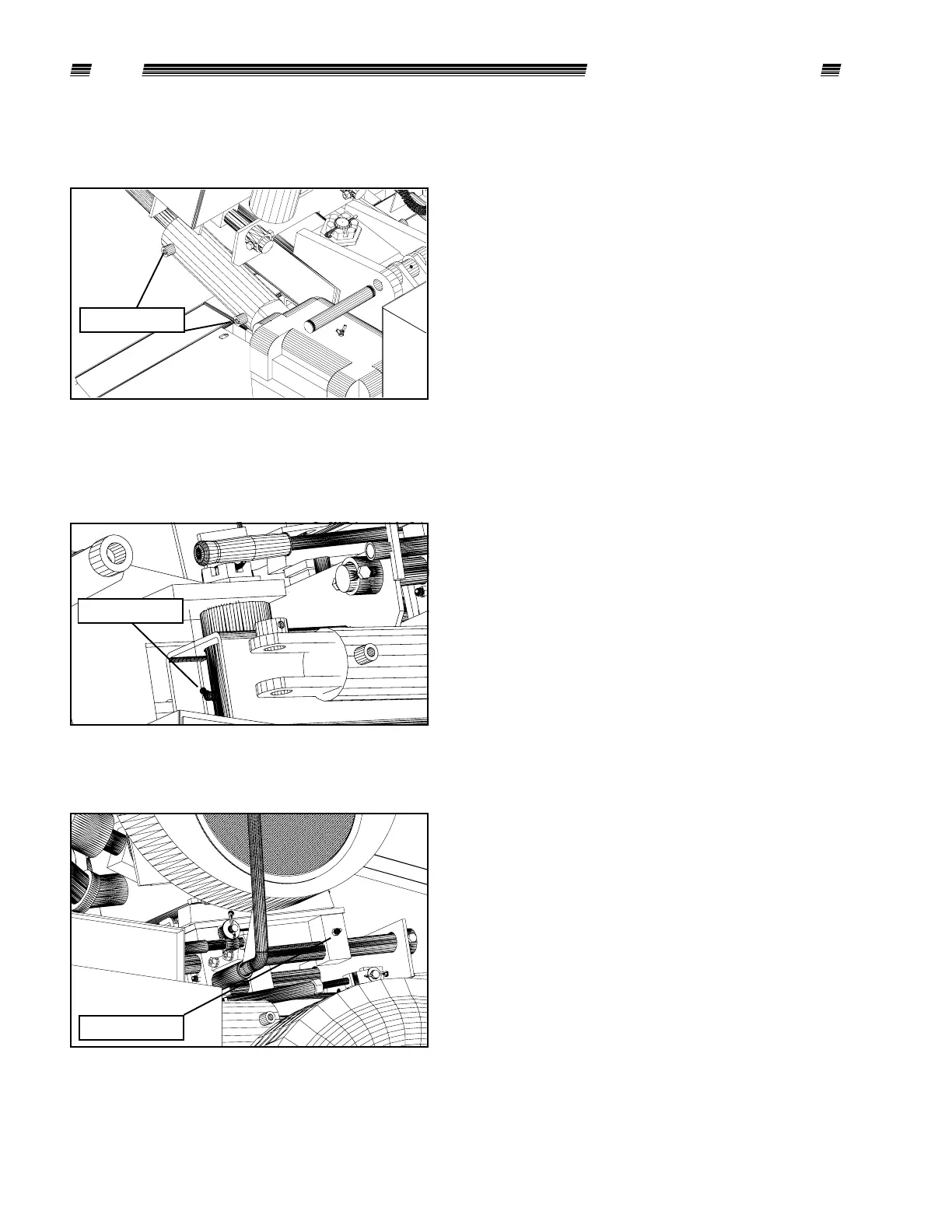

Side Swing Cylinders
Pivots - Lubricate
Lubricate the four total grease fittings on the two
pivots of both right (shown) and left cylinder.
Cutting Boom Swing Pivot
- Lubricate
Lubricate one fitting on the bearing housing at the
pivoting end of the cutting boom.
Slide Blocks - Lubricate
Lubricate the six total grease fittings on the engine
slide mechanism.
Air Filter Element - Clean
Follow directions as shown as shown in the
Wisconsin [Engine] Operation Manual.
LUBRICATE
LUBRICATE
LUBRICATE
