Rayco RG13II - Page 41

RG13II Operation • Maintenance • Parts
800.392.2686
41

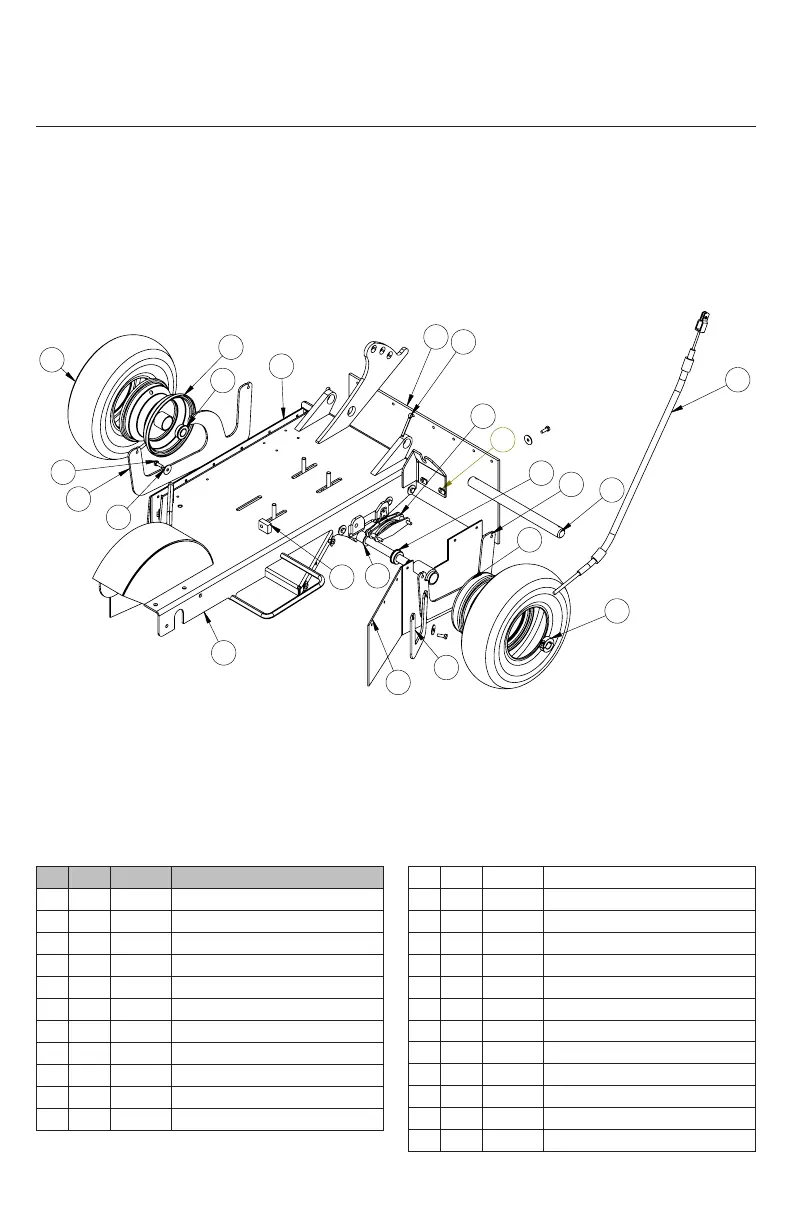

39017 Frame Assembly
21
23
19
12
14
17
7
8
24
2
13
20
11
10
19
18
22
?
5
6
1
4
ITEM QTY. PART # DESCRIPTION
1 1 1479 ADJUSTMENT TAB
2 1 10419 CABLE-BRAKE
3 2 10437 PLATE BACK-UP ENGINE
4 1 1074 9 MAIN FRAME WELDMENT
5 1 10819 CURTAIN - SIDE
6 1 10821 CURTAIN, SIDE GUARD
7 1 10823 CURTAIN, BACK
8 1 11159 PIN - HINGE
9 1 11450 SPACER, HUB
10 1 12111 SIDE-BRAKE CURTAIN RETAIN
11 1 12112 SIDE,U-CURTAIN RETAIN
12 1 12114 SIDE-CURTAIN RETAIN
13 1 36063 WHEEL, BRAKE WELD RG13-II
14 24 722103 BOLT HEX 1/4-20 X 3/4 GR8
15 4 722307 BOLT-HEX 3/8-16 X 2
16 2 726203 WASHER FLAT 3/16 USS PL
17 24 726607 FENDER WASHER
18 1 726803 WASHER, FLAT 3/4-14GA
19 2 761581 BEARING, WHEEL
20 1 761585 BRAKE MECHANISM
21 2 761671 TIRE 4.10 x 6 x 12.8 DIA,
22 2 761779 COLLAR-CLAMP 3/4
23 1 804875 WHEEL-ONE PIECE 6”
24 2 960200 PIN-COTTER 1/4” x 2”
