Note: The above modes need to be modified by using the Raycus upper
computer, turn off the red light external control, enable the external light output
and external AD, and only retain the modulation mode.

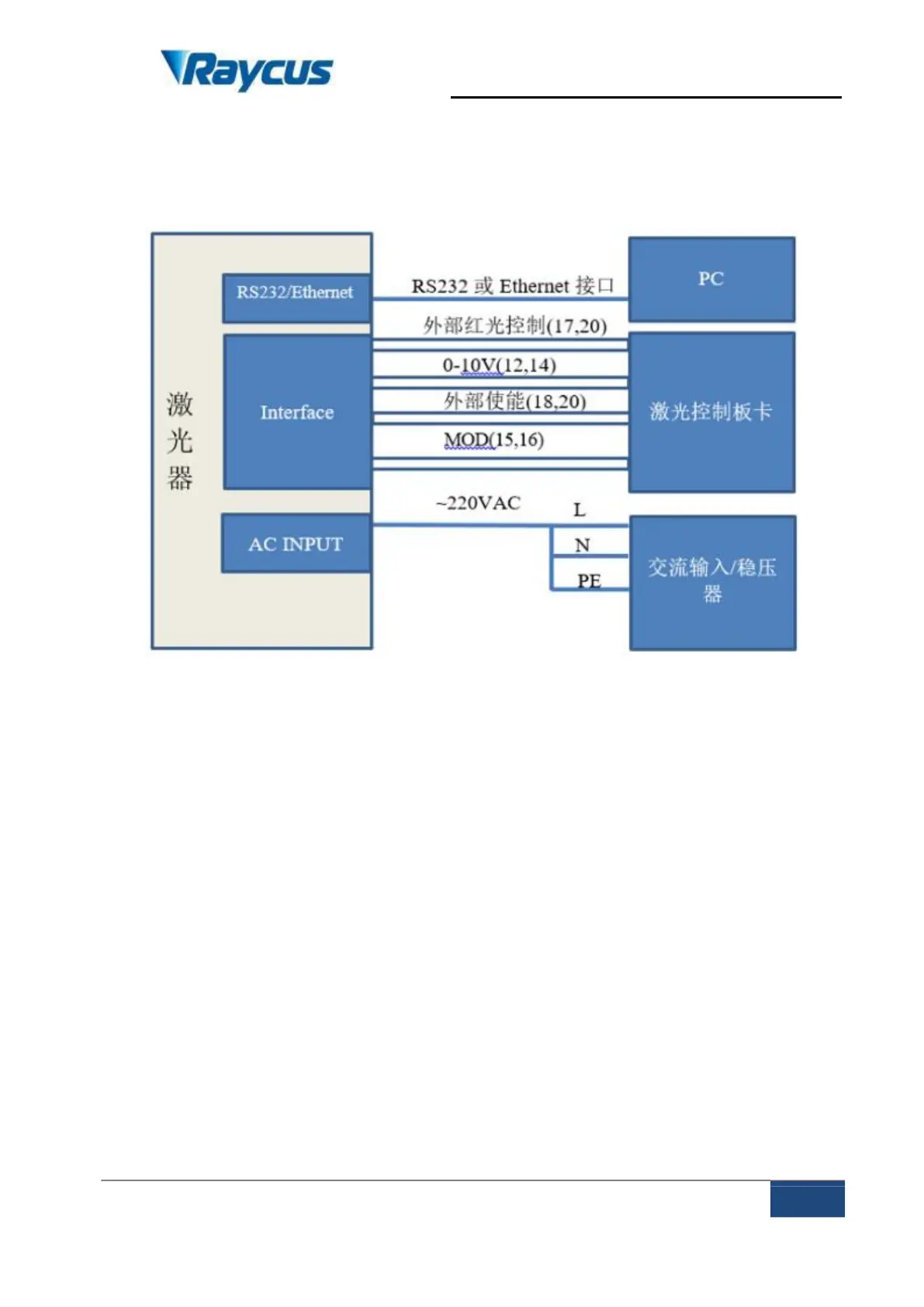

Figure 19 Wiring diagram in AD mode
4.8.2 Stand-alone mode (internal control mode) (connect 4.6 in sequence)
1) Turn on the air switch and the panel "power" indicator light is on;
2) Wait for 20s, internal main control board circuit initialization is
completed;
3) Turn off all the external control modes of the laser (turn off the red light
external control, external light output enable, external AD and
modulation mode);
4) Set the power of the laser (the laser power is to be set by 0- 10V analog
quantity, when the AD mode is on; and to be set by the serial port or
Ethernet, when the AD mode is off);
5) Turn on the laser enable;
