Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
33
Read IP address of the laser
Set newly IP address
Set newly IP address
in config.xml
If you do not use Raycus software,
please go to the step 4
Configure TCP/IP in local PC
（ the IP address of the PC
must be in the same network
segment）

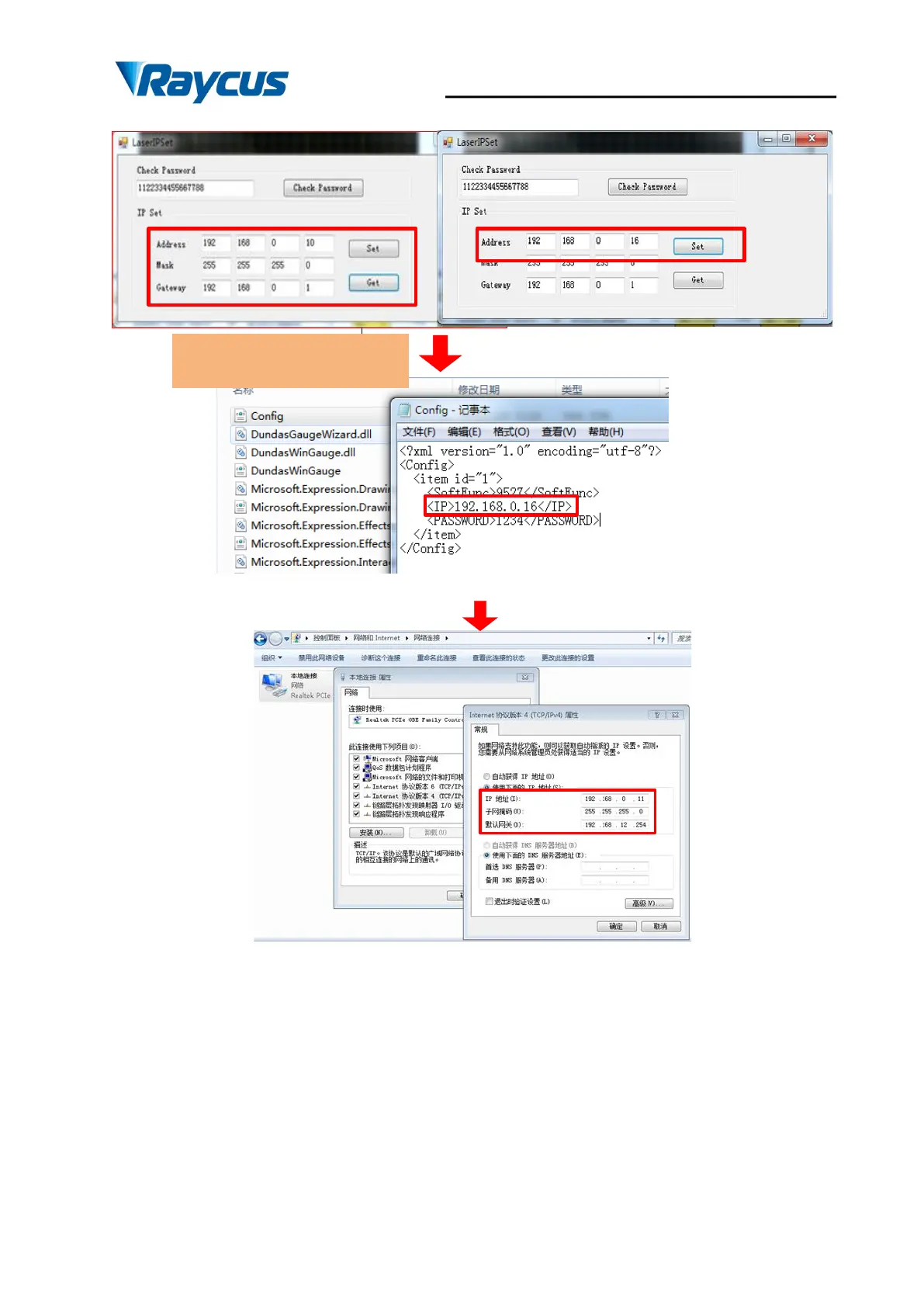

Figure 24 The Steps of Ethernet Connection
4.5 Steps Of Installation
1) Carefully remove the laser from the box, move to the installing position, and lock the
casters;
2) Remove the output cable protective cap and check the output lens for dust with strong
light and clean it if necessary, then cover the output cable protective cap;
To Next Page
