User Guide of RFL- RFL-C1500X/C2000X
4 Using the Product
Raycus CW fiber laser has stopped using the HyperTerminal,
so the HyperTerminal will not work when the laser is powered
on. Please clip the address below to download the latest PC software
and the relevant manual.
http://www.raycuslaser.com/index.php/index-show-tid-53.html
4.1 Front Panel
Figure 9 shows the front panel of RFL-C1500S/C2000S (take RFL-C2000S for example,
RFL-C1500S has the same front panel)

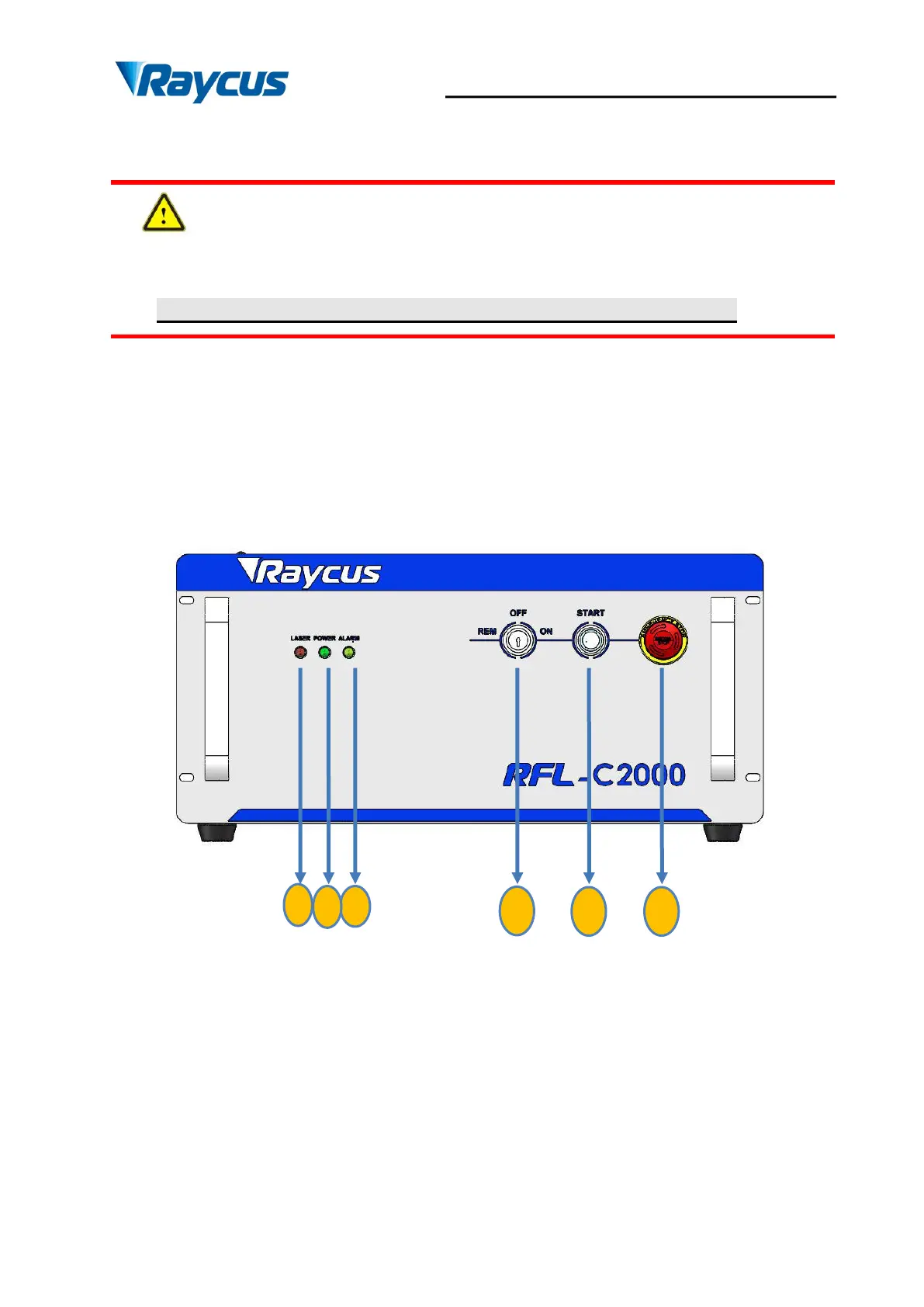

Figure 4 Front Panel View of RFL-C1500X/C2000X
1. REM/OFF/ON: Key switch, the power switch of the laser. Insert the key (Item 6 in
Figure 8(9); either turn the key clockwise to the 'ON' position or counterclockwise to 'REM'
position will power on the laser. Then the laser will enter a control mode depending on your
previous setup on the 'CTRL-INTERFACE'. You can refer to 4.6 Control Mode for more details.
2. POWER: Power Indicator, indicates that the power is switched on, when the green
LED illumines.
