Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C1500X/C2000X
5 Alarms and Solutions
5.1 Alarms Display
When the laser establishes communication with the client software, all alarm states of the
laser can be displayed on Raycus software homepage, as shown in Figure 32(Download the
Rsycus software and software manual, please log in to Raycus official website)

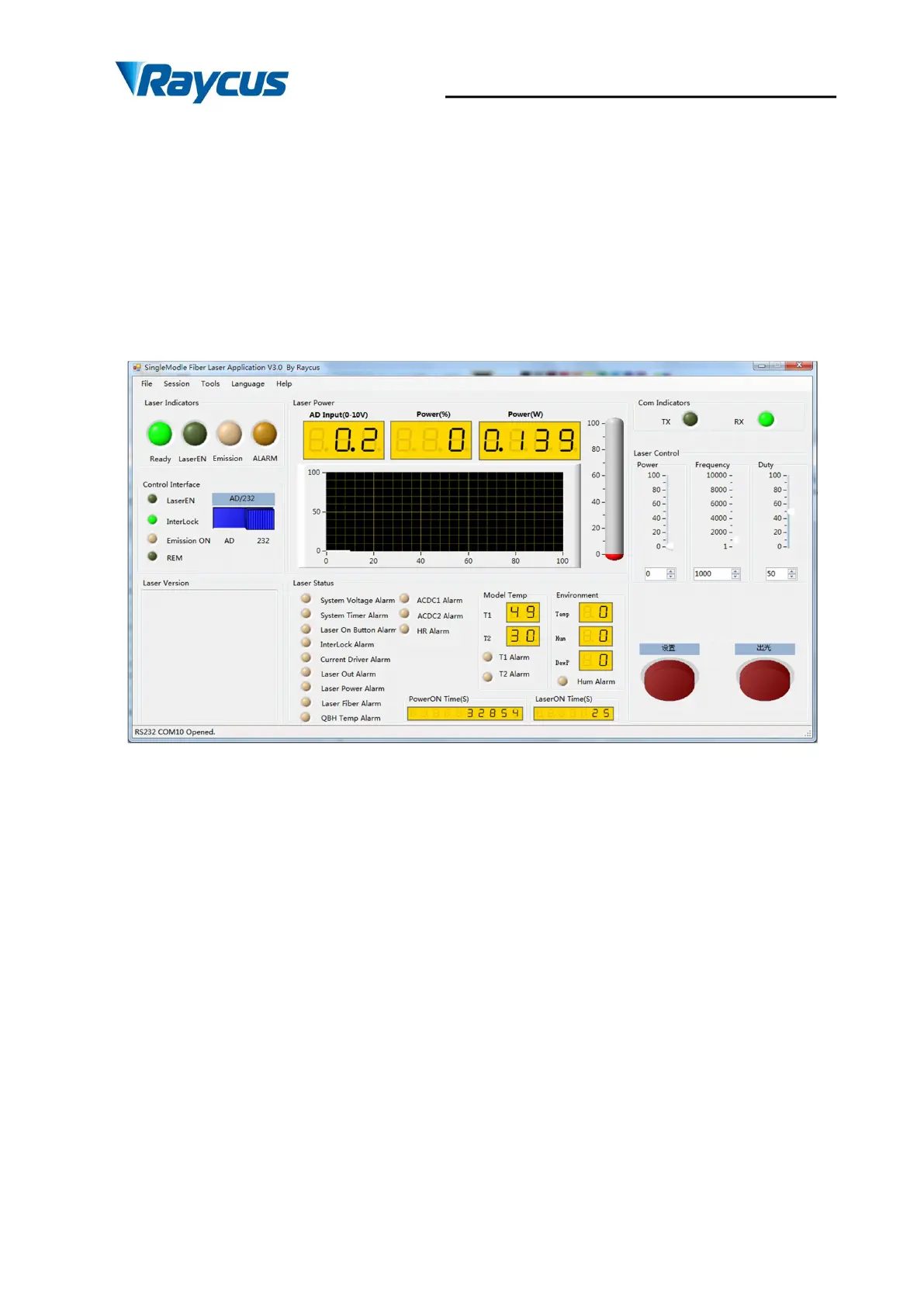

Figure 15 The homepage of Raycus software
If any alarm occurs (except for Interlock alarm) when the laser is running, the homepage
will display the alarm that occurs, and the ALARM light (yellow) on the front panel of the laser
will light up, the laser will stop emitting and lock.
When the Interlock is abnormal, the output of Ready signal is low, and the Interlock state is
abnormal in the software homepage, but the laser is not locked, and the ALARM light (yellow)
is not lit. The output of Ready signal is on high level when the Interlock is normal.
5.2 Alarm solutions
The instructions and solutions of alarms are as follows:
Table 11 Instructions and solutions for alarms of laser
